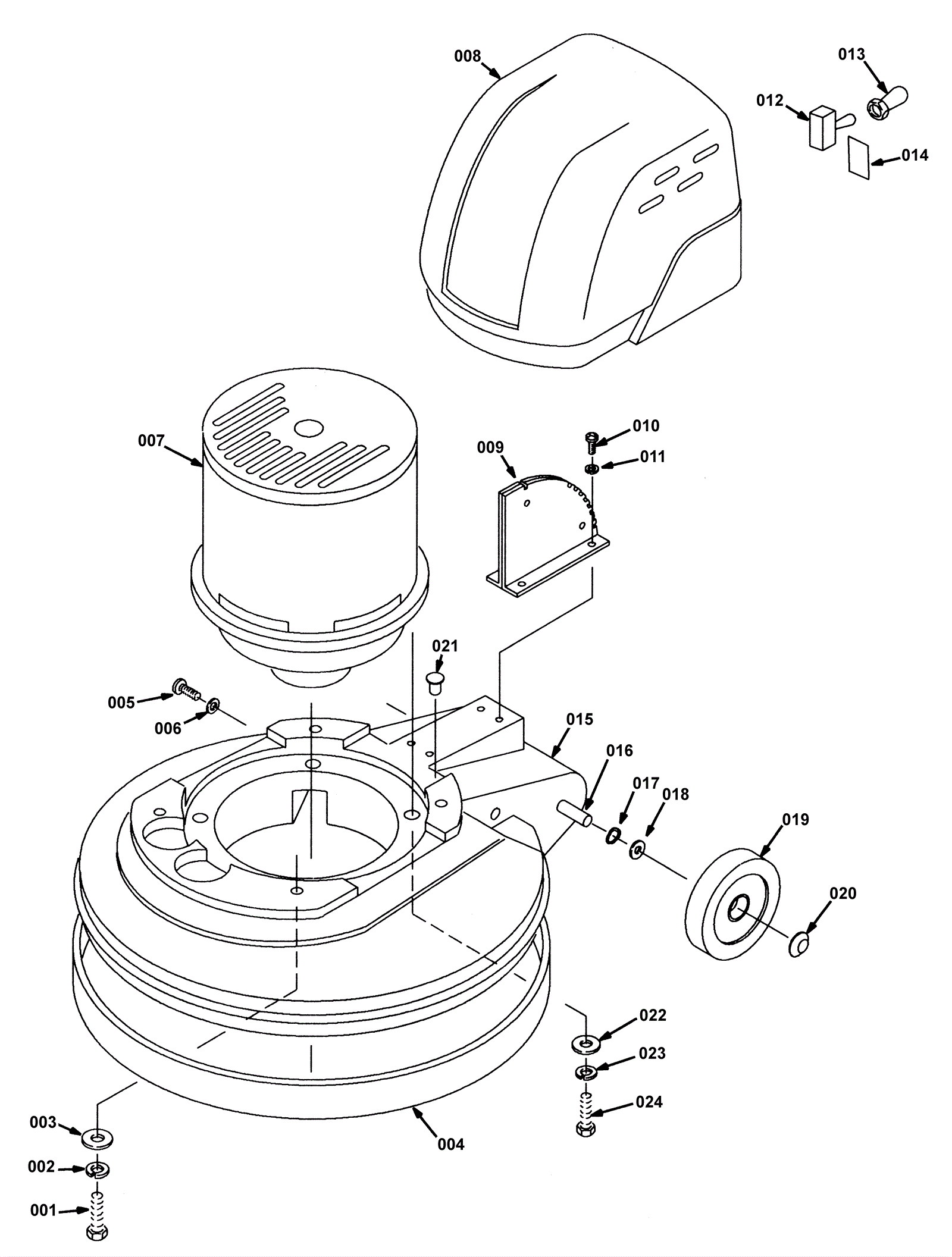

F5 Base Assembly - Dual Speed

#PartDescriptionPriceReqNotesAvailability
001 999-0258 Bolt 1/4-20 x 2 hex head grade 5 zinc plated $0.99 4 ships same day
002 999-0632 Washer 1/4 split lock stainless steel $0.99 4 ships same day
003 175-1097 Washer flat stainless steel $5.50 4 usually ships 10-16 days
004a 175-1270 17 inch (430mm) bumper $46.64 1 usually ships 10-16 days
004b 175-0298 20 inch bumper $56.32 1 usually ships 10-16 days
005a 175-3716 Screw 5/16-18 x 1 3/4 $9.57 2 (17 inch) usually ships 10-16 days
005b 999-1080 Screw 1/4-20 x 5/8 truss head phillips stainless steel $0.99 2 (20 inch) ships same day
006a 175-1424 Washer flat $4.88 2 (17 inch) usually ships 10-16 days
006b 999-1119 Washer 1/4 x 1 fender zinc plated $0.99 2 (20 inch) ships same day
007a 175-3497 120V 1.50HP brush motor assembly $2,135.87 1 (includes 007b, 007c, 007d, 007e) usually ships 10-16 days
007b 175-3491 Carbon brush (pkg of 4) $179.19 1 usually ships 10-16 days
007c 175-3492 Carbon brush $25.63 4 usually ships 10-16 days
007d 175-3493 600V 60amp rectifier $146.08 1 usually ships 10-16 days
007e 175-3494 Speed control $349.03 1 usually ships 10-16 days
008 275-5170 Motor cover $311.08 1 usually ships 1-5 days
009 175-6530 Latching plate $103.51 1 usually ships 10-16 days
010 999-0030 Bolt 5/16-18 x 5/8 hex head grade 5 zinc plated $1.14 4 ships same day
011 999-0553 Washer 5/16 medium split lock stainless steel $0.99 4 ships same day
012 164-0290 Toggle switch $14.63 1 ships same day
013 175-0329 Rubber boot for switch $16.17 1 usually ships 10-16 days
014 175-1280 Operation decal $5.28 1 usually ships 10-16 days
015a 275-5168 17 inch base (gray) (OBSOLETE) $416.90 1 usually ships 10-16 days
015b 275-5169 20 inch base (gray) $491.59 1 usually ships 1-5 days
016 175-0294 Axle $19.03 1 ships same day
017 175-0293 Washer 1/2 compression zinc plated $4.88 2 ships same day
018 999-0114 Washer 1/2 SAE flat $0.99 2 ships same day
019a 175-0292 4 inch rear wheel (gray) $38.72 2 usually ships 10-16 days
019b 991-1913 4 inch wheel (gray) $21.98 usually ships 14-21 days
020 175-6097 Hub cap $5.50 2 ships same day
021 175-2700 Plug $5.02 1 usually ships 10-16 days
022 999-0032 Washer 3/8 USS flat plain finish $2.42 4 ships same day
023 999-0553 Washer 5/16 medium split lock stainless steel $0.99 4 ships same day
024 999-0109 Bolt 5/16-18 x 1 1/2 hex head grade 5 zinc plated $0.99 4 ships same day
