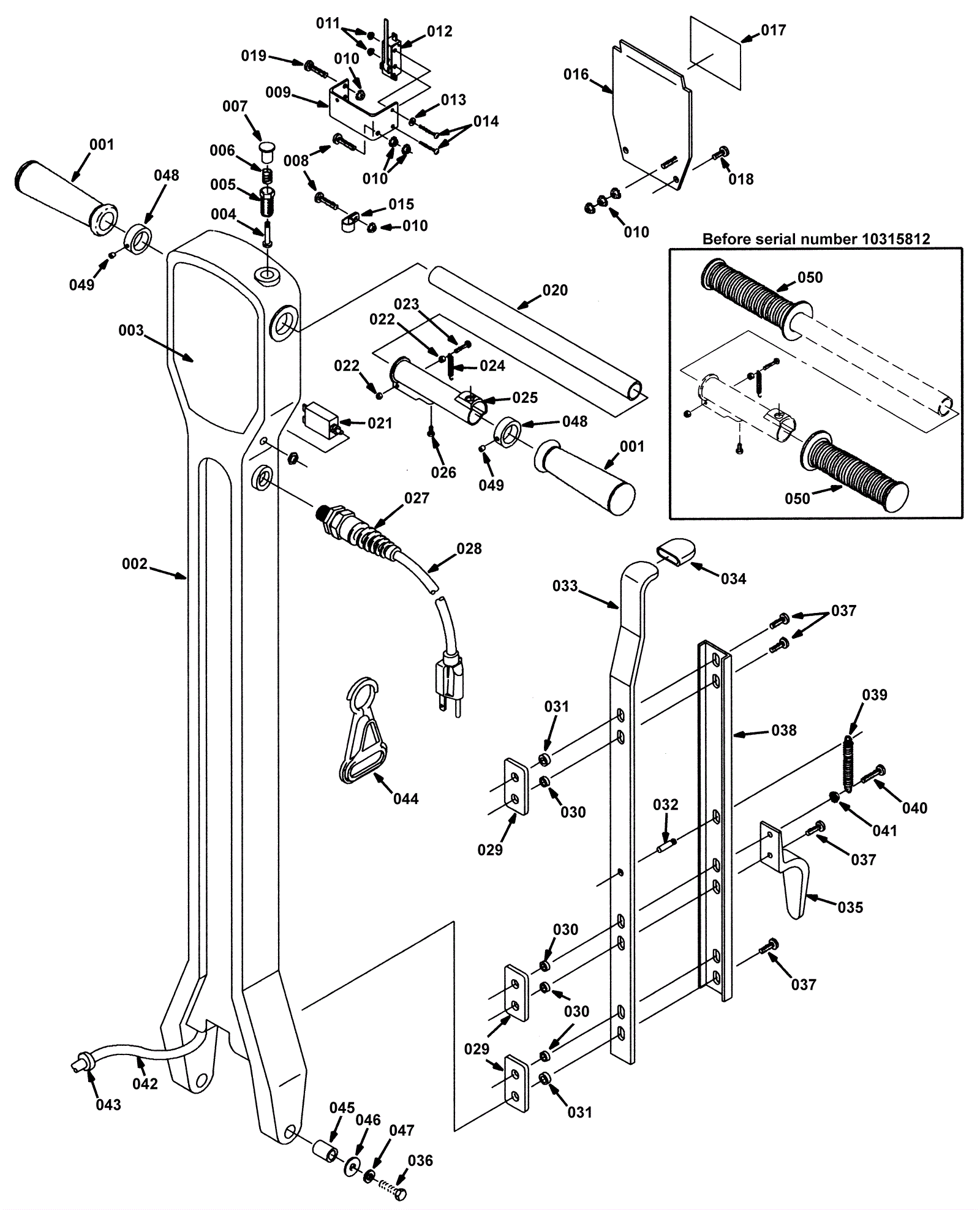

Handle Assembly

#PartDescription ReqNotesAvailability
001a 164-0304 Handle grip 2 (after SN 10315813)
001b 991-8571 Handle grip 2 (NON-OEM)
002 175-3518 Handle (white) (OBSOLETE) 1
003 275-5165 F series decal (OBSOLETE) 1
004 175-0332 Locking release pin 1
005 175-0331 Locking socket 1
006 175-0335 Locking pin spring 1
007 175-0334 Locking release button 1
008 999-1028 Screw 10-24 x 3/4 truss head phillips stainless steel 2
009 175-0338 Switch bracket 1
010 999-0356 Nut 10-24 lock stainless steel 8
011 999-0195 Nut 6-32 hex plain 2
012 675-9886 Snap switch 1
013 999-1158 Washer #6 flat stainless steel 1
014 999-0511 Screw 6-32 x 1 pan head phillips zinc plated 2
015a 175-0144 P clamp 1 (single speed)
015b 175-0339 P clamp 1 (dual speed)
016 275-5163 Rear handle plate with decal 1
017 275-5164 Warning decal 1
018 999-0999 Screw 10-24 x 3/8 truss head phillips stainless steel 2
019 999-1029 Screw 10-24 x 5/8 truss head phillips stainless steel 3
020 175-0328 Handle tube 1
021a 175-1186 15amp circuit breaker 1 (single speed)
021b 175-6630 17amp circuit breaker 1 (dual speed)
022 999-0151 Nut 8-32 nylon insert lock zinc plated 2
023 999-0827 Screw 8-32 x 1 pan head phillips zinc plated 1
024 175-0336 Extension spring 1
025 175-0333 Handle sleeve 1
026 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel 1
027 175-5502 Strain relief 1
028a 164-5077 14/3 power cord 50 foot 1 (OEM)
028b 991-5005 14/3 replacement power cord 50 foot (yellow) 1 (NON-OEM) (does not include strain relief)
029 175-0319 Plate 3
030 175-0318 Sleeved bushing 4
031 175-0317 Sleeved bushing 2
032 175-0320 Pin 1
033 475-1646 Handle latch 1
034 175-0322 Handle latch grip 1
035 175-0314 Cord hook 1
036 999-0657 Bolt 1/2-13 x 2 18-8 hex head stainless steel 2
037 999-1214 Screw 1/4-20 x 3/4 truss head slotted stainless steel 5
038 175-1273 Handle latch channel 1
039 175-7002 Extension spring 1
040 999-1077 Screw 1/4-20 x 1/2 truss head phillips stainless steel 1
041 999-0015 Nut 1/4-20 k-lock zinc plated 1
042 175-1486 14/3 interconnect cord 57 inch 1 (handle to motor)
043 175-1487 Strain relief bushing 1
044 175-0236 Cord belt clip 1 (optional)
045 675-9888 Sleeved bushing 2
046 999-0114 Washer 1/2 SAE flat 2
047 999-0126 Washer 1/2 split lock 2
048 175-1168 Handle collar 2 (after SN 10315813)
049 999-0096 Screw 1/4-20 x 1/4 cup point socket set plain finish 2 (after SN 10315813)
050 675-9894 Handle grip 2 (before SN 10315812)
