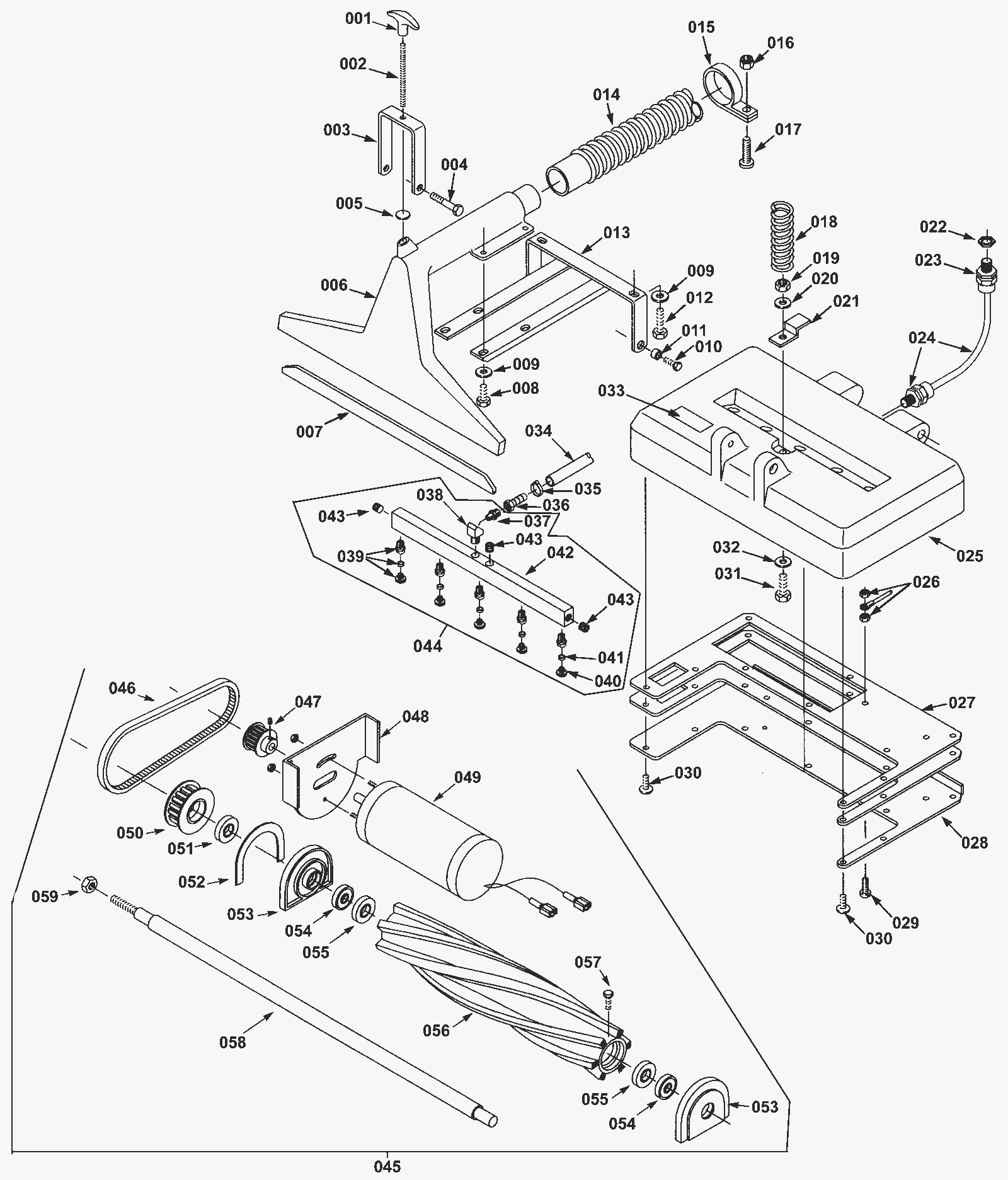

Brush Housing Assembly - Before 06.2002

#PartDescription ReqNotesAvailability
001 175-6113 Height adjustment knob 1
002 175-6114 Threaded stud 1
003 175-6152 Height adjustment bracket 1
004 175-6156 Screw 3/8 x 3/4 shoulder 2
005 175-6112 Spacer 1
006a 175-6148 16 inch pick-up tool (black) 1 (1240)
006b 175-6151 20 inch pick-up tool (black) 1 (1260)
007a 175-6146 16 inch pick-up shoe plate stainless steel 2 (1240)
007b 175-6147 20 inch pick-up shoe plate stainless steel 2 (1260)
008 999-0424 Bolt 5/16-18 x 1 hex head stainless steel 4
009 999-0553 Washer 5/16 medium split lock stainless steel 6
010 999-1562 Screw 3/8-16 x 3/4 truss head phillips zinc plated 2
011 175-6154 Spacer 2
012 999-0030 Bolt 5/16-18 x 5/8 hex head grade 5 zinc plated 2
013 175-6153 Mounting bracket 1
014a 175-6038 Vacuum hose with cuffs 1 1/2 x 53 inch 1 (OEM)
014b 991-5154 Vacuum hose with cuffs 1 1/2 x 53 inch 1 (NON-OEM)
015 175-3123 Cable tie 1
016 999-0442 Nut 10-24 nylon insert lock stainless steel 1
017 999-0009 Screw 10-24 x 1 round head slotted zinc plated 1
018 175-6116 Spring 1
019 999-0513 Nut 3/8-16 nylon insert lock type NE stainless steel 1
020 999-0617 Washer 3/8 x 1 flat stainless steel 2
021 175-6115 Spray bar clamp 1
022 175-6158 Nut 1/2 conduit 1
023 175-6124 Cord grip 2
024 175-6065 Interconnect cord 1 (control console to base)
025a 175-7207 16 inch (400mm) brush housing (teal) 1 (1240)
025b 275-5129 20 inch (500mm) brush housing (teal) 1 (1260)
026 999-0356 Nut 10-24 lock stainless steel 3
027a 175-6142 16 inch base gasket 2 (1240)
027b 175-6235 20 inch base gasket 2 (1260)
028a 175-6144 16 inch brush base plate 1 (1240)
028b 175-6145 20 inch brush base plate (black) 1 (1260)
029 999-0454 Screw 10-24 x 1/2 truss head phillips zinc plated 1
030 999-0811 Screw 10-32 x 3/8 pan head phillips stainless steel 12
031 999-1006 Screw 3/8-16 x 1 3/4 hex head stainless steel 1
032 999-0617 Washer 3/8 x 1 flat stainless steel 1
033 175-6108 Height adjustment decal 1
034 175-7364 16 inch hose (gray) 1
035 175-6170 Hose clamp 1
036 175-6043 Hosebarb 1
037 175-6042 Adapter 1
038 175-6041 Elbow 1/8 x 1/8 inch 1
039a 175-6117 Spray tip assembly 5 (1240) (includes 040 and 041)
039b 175-6118 Spray tip assembly 5 (1260) (includes 040 and 041)
040a 275-5132 Brass spray tip 5 (1240)
040b 175-3535 Brass spray tip 5 (1260)
041a 175-8085 Spray nozzle seal 5 (1240)
041b 175-9507 Jet fitting 5 (1260)
042a 175-6039 16 inch spray bar manifold 1 (1240)
042b 175-6040 20 inch spray bar manifold 1 (1260)
043 175-6121 Brass plug 3
044a 275-5130 Sprayer manifold assembly 1 (1240) (includes 037 - 043)
044b 275-5131 Sprayer manifold assembly 1 (1260) (includes 037 - 043)
045a 175-1607 16 inch brush assembly 1 (1240) (includes 050-059)
045b 675-9929 20 inch brush assembly 1 (1260) (includes 050-059)
046 175-6141 Brush drive belt 1
047 175-6129 Motor pulley (Tennant Industrial) 1
048 175-6130 Motor bracket 1
049 175-6131 120V brush motor 1
050 175-6140 Brush pulley 1
051 175-6139 Spacer 1
052 175-6143 Bearing block gasket 1
053 175-6133 Bearing block 2
054a 175-0069 Brush bearing 2 (OEM)
054b 991-5125 Brush bearing 2 (NON-OEM)
055 775-0402 Brush bearing seal 2
056a 175-6135 Scrubbing brush - CYLINDRICAL 1 (1240)
056b 175-6136 Scrubbing brush - CYLINDRICAL 1 (1260)
057 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel 4
058a 175-6137 16 inch brush shaft 1 (1240)
058b 175-6138 20 inch brush shaft 1 (1260)
059 999-1019 Nut 5/16-18 hex jam stainless steel 1
