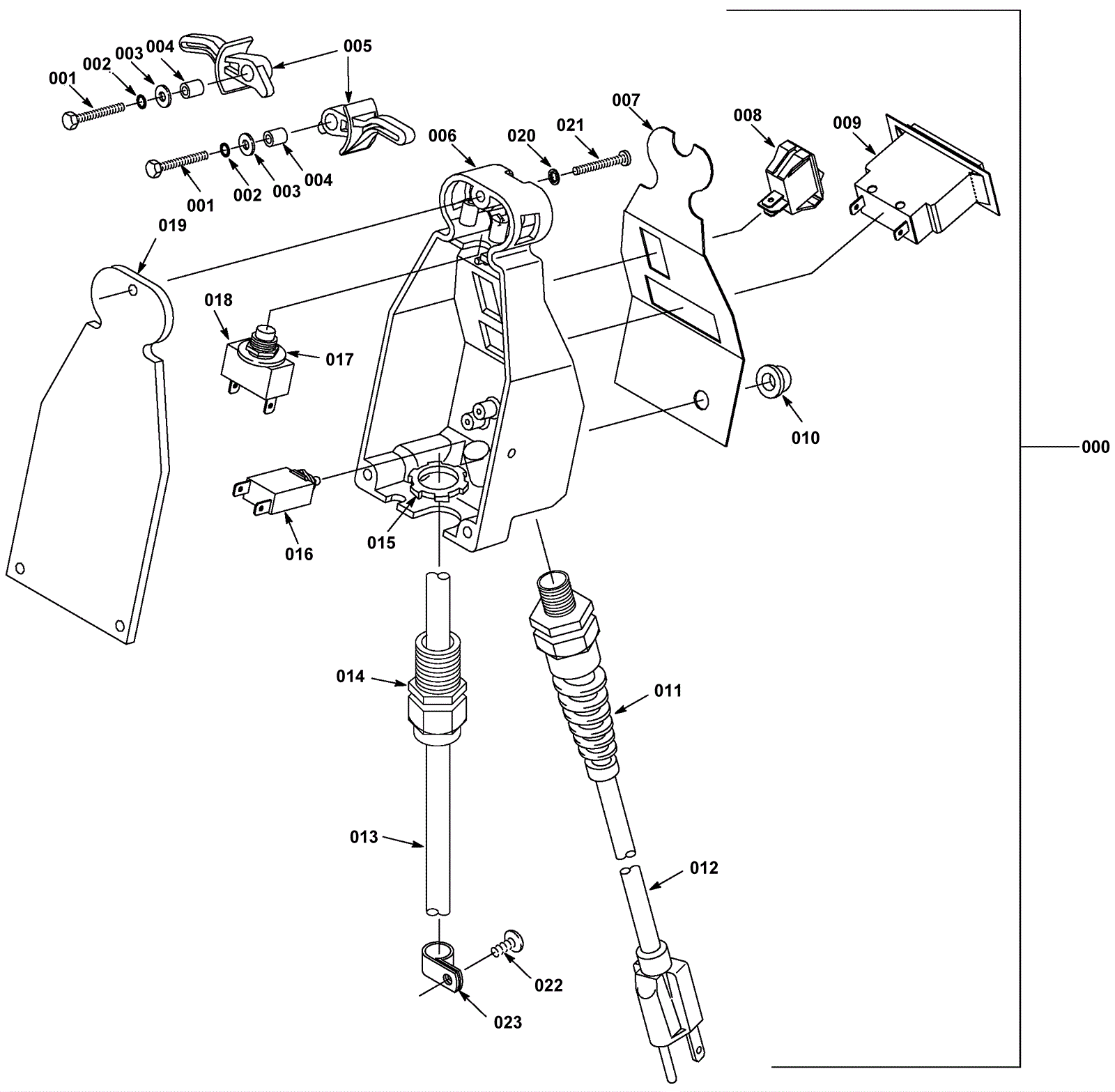

1260 Control Console Assembly - After 06.2002

#PartDescription ReqNotesAvailability
000a 275-5151 Trigger console assembly (OBSOLETE) 1 (includes 001-012a, 013-018, 275-5153, 275-5154 and 275-5155) ( for models 1240 and 1260) usually ships 1-5 days
000b 275-9756 Control console assembly 1 (includes 001-006, 008-012a, 013-018) (For model EX-SC-1020) usually ships 16-21 days
001 999-0805 Bolt M3-.5 x 16mm hex head 2 usually ships 11-14 days
002 999-0479 Washer #4 internal star lock zinc plated 2 usually ships 11-14 days
003 999-1115 Washer M4 flat zinc plated 2 usually ships 11-14 days
004 175-6384 Trigger spacer 2 usually ships 16-21 days
005 175-6383 Trigger arm (OBSOLETE) 2 usually ships 16-21 days
006 175-6381 Console cover (OBSOLETE) 1 usually ships 1-5 days
007 N/A Not available 1 (Trigger consol decal) (1240 and 1260) usually ships 3-26 days
008 175-0136 On/off rocker switch 1 usually ships 16-21 days
009 275-5152 Brush pressure meter 1 usually ships 16-21 days
010 175-3556 Circuit breaker boot 1 usually ships 16-21 days
011 175-0001 Strain relief 1 usually ships 16-21 days
012a 175-6064 14/3 pigtail cord 18 inch 1 (OEM) usually ships 16-21 days
012b 991-5002 16/3 extension cord 50 foot (orange) 1 (NON-OEM) usually ships 18-33 days
013 N/A Not available 1 (cord - control console to base) (only available with 000a and 000b) (includes 14) usually ships 3-26 days
014 175-6124 Cord grip 2 usually ships 1-5 days
015 175-6158 Nut 1/2 conduit 1 usually ships 16-21 days
016 275-5777 2amp circuit breaker 1 (brush motor) usually ships 16-21 days
017 175-6386 Washer 1/2 flat spring disc zinc plated 1 usually ships 16-21 days
018 175-6400 Push button switch kit 1 usually ships 16-21 days
019 175-5555 Gasket 1 usually ships 1-5 days
020 999-1026 Washer #10 internal lock stainless steel 3 usually ships 11-14 days
021 999-1027 Screw 10-24 x 1 1/4 round head phillips stainless steel 3 usually ships 11-14 days
022 999-1029 Screw 10-24 x 5/8 truss head phillips stainless steel 3 usually ships 11-14 days
023 175-0339 P clamp 3 usually ships 16-21 days
N/S 275-5154 Wire assembly #18 x 5 inch (red) 2 (1240 and 1260) usually ships 1-5 days
N/S 275-5153 Wire assembly #18 x 5 inch (black) (OBSOLETE) 1 (1240 and 1260) usually ships 1-5 days
N/S 275-5155 Wire assembly #18 x 7 inch (white) 1 (1240 and 1260) usually ships 1-5 days
N/S 175-1138 Screw 10-24 x 1 1/4 phillips round head 3 (EX-SC-1020) usually ships 1-5 days
