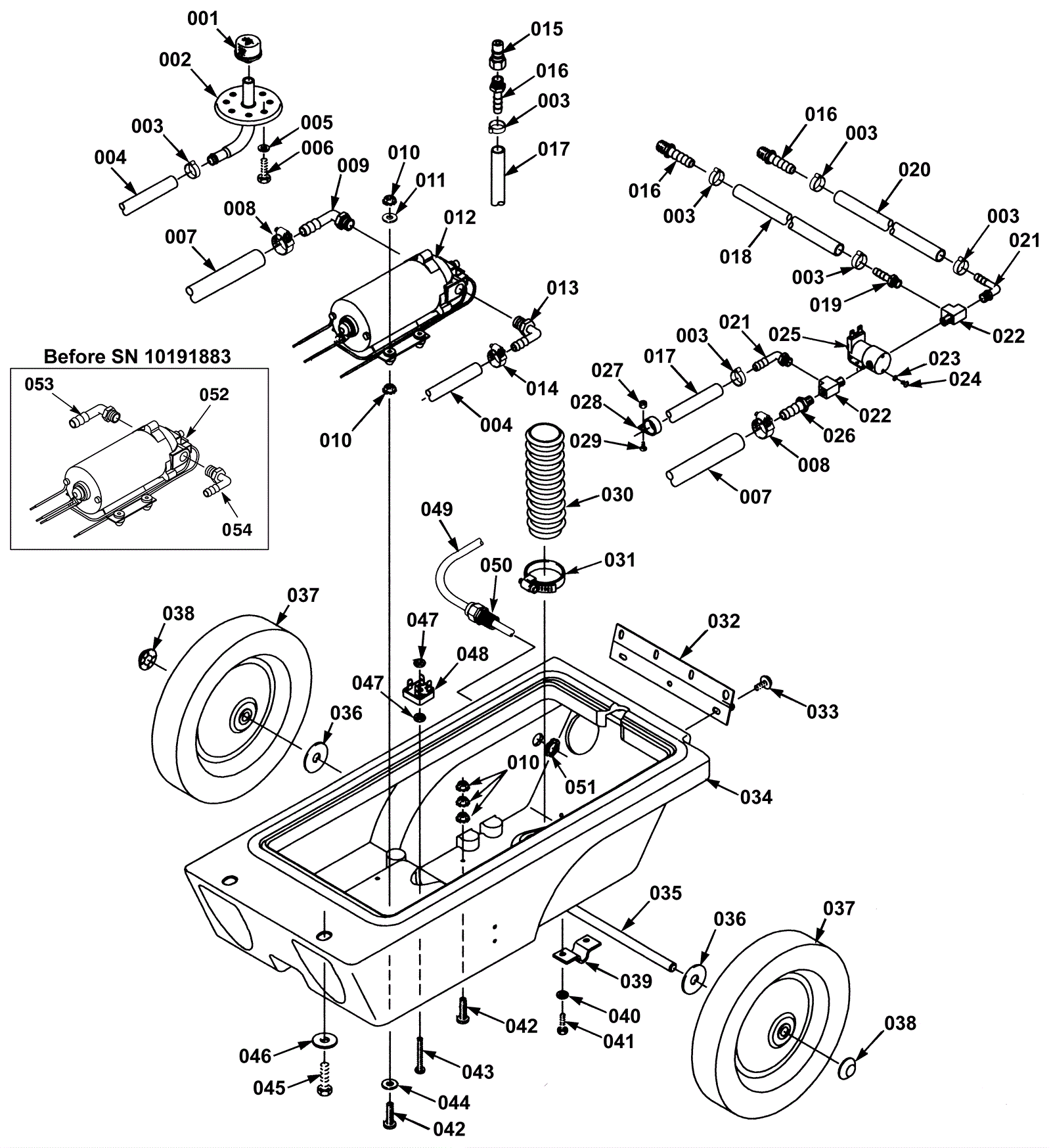

1260 Chassis Assembly - After 06.2002

#PartDescriptionPriceReqNotesAvailability
001 175-6079 Mesh filter screen $17.16 1 ships same day
002 175-6021 Bladder plate fitting $55.66 1 usually ships 5-16 days
003 175-6032 Hose clamp $4.73 7 (qty 5 for EX-SC-1020) ships same day
004 175-7216 Hose 3/8 x 31 inch (gray) $18.70 1 usually ships 5-16 days
005 999-0632 Washer 1/4 split lock stainless steel $0.99 4 ships same day
006 999-1032 Screw 1/4-20 x 5/8 hex head stainless steel $0.99 4 ships same day
007 175-7221 24 inch hose (red) $47.30 1 usually ships 5-16 days
008 175-0199 Hose clamp $6.38 2 usually ships 5-16 days
009a 175-6016 Elbow $5.83 1 (after SN 10191882 on models 1240 and 1260) ships same day
009b 275-9964 Fitting $4.95 1 (EX-SC-1020) ships same day
010 999-0356 Nut 10-24 lock stainless steel $0.99 11 ships same day
011 999-0006 Washer 3/16 flat zinc plated $0.99 4 ships same day
012a 275-9114 120V 100 PSI pump $504.57 1 (OEM) (includes 012c-012d) usually ships 5-16 days
012b 991-8225 Shurflo pump $252.55 1 (NON-OEM) ships same day
012c 175-0142 1/4 inch male terminal $3.96 1 usually ships 5-16 days
012d 175-0140 Terminal ring #10 $3.96 1 usually ships 5-16 days
013a 175-6019 90 degree barbed elbow $7.48 1 (after SN 10191882 on models 1240 and 1260 ) usually ships 5-16 days
013b 175-9868 Swivel fitting 1/2 x 3/8 inch $4.95 1 (EX-SC-1020) usually ships 5-16 days
014 175-6081 Hose clamp $4.84 3 ships same day
015 991-8150 1/4 inch BH2-61 male nipple (mate to QD80) $10.94 1 ships same day
016 175-2613 Straight brass fitting $4.95 3 usually ships 5-16 days
017a 175-7217 52 inch hose (gray) $25.52 1 (1240 and 1260 early body style) usually ships 1-5 days
017b 275-9965 Hose $25.52 1 (EX-sC-1020) usually ships 1-5 days
018 275-9966 Hose $13.31 1 usually ships 5-16 days
019 175-7218 Plastic straight fitting $3.96 1 ships same day
020 275-4905 Hose 3/8 x 22 1/2 inch (gray) $15.84 1 usually ships 5-16 days
021 175-2844 90 degree elbow fitting $4.95 2 ships same day
022 175-6029 Straight tee $13.75 2 ships same day
023 999-1083 Washer #8 internal star lock stainless steel $0.99 2 ships same day
024 999-0358 Screw 8-32 x 5/8 pan head phillips stainless steel $0.99 2 ships same day
025a 175-6025 Solution solenoid valve $220.99 1 (OEM) (if solenoid valve is leaking try replacing the plunger with spring first before replacing entire solenoid valve) ships same day
025b 991-8598 Replacement plunger with spring for solenoid valve $19.47 1 (NON-OEM) ships same day
026 175-6030 Straight hosebarb $5.83 1 usually ships 5-16 days
027 999-0442 Nut 10-24 nylon insert lock stainless steel $1.76 1 ships same day
028 175-0988 P clamp $3.08 1 usually ships 5-16 days
029 999-1008 Screw 10-32 x 3/4 round head phillips stainless steel $0.99 1 ships same day
030 175-6090 Exhaust hose 2 x 26 inch (black) $10.23 1 ships same day
031 997-2000 Hose clamp $2.37 1 ships same day
032 175-6077 Tank hinge $12.87 1 ships same day
033 999-0557 Screw 1/4-20 x 1/2 truss head slotted stainless steel $0.99 7 ships same day
034a 275-5149 Chassis (teal) (OBSOLETE) $243.98 1 (1240 and 1260) usually ships 1-5 days
034b 275-5150 Chassis (teal) (OBSOLETE) $243.98 1 (1240 and 1260) usually ships 1-5 days
034c 475-2471 HOUSING, RM-BLK, AFMKT [EX-SC-1020] $388.85 1 (EX-SC-1020) usually ships 5-16 days
035 175-6095 Axle $24.42 1 usually ships 5-16 days
036 999-0187 Washer 1/2 flat plain finish $0.99 2 ships same day
037 175-6096 Wheel $76.89 2 usually ships 5-16 days
038 175-6097 Hub cap $4.84 2 ships same day
039 175-6098 Axle bracket $17.71 2 usually ships 5-16 days
040 999-0632 Washer 1/4 split lock stainless steel $0.99 4 ships same day
041 999-0633 Bolt 1/4-20 x 5/8 hex head stainless steel $0.99 4 ships same day
042 999-0002 Screw 10-24 x 1 1/2 pan head phillips zinc plated $0.99 5 usually ships 11-24 days
043 999-1411 Screw 10-24 x 1 round head slotted nylon $0.99 1 ships same day
044 999-0006 Washer 3/16 flat zinc plated $0.99 4 ships same day
045 999-0649 Bolt 3/8-16 x 1 1/4 hex head stainless steel $7.56 2 ships same day
046 999-0617 Washer 3/8 x 1 flat stainless steel $1.82 2 ships same day
047 999-0442 Nut 10-24 nylon insert lock stainless steel $1.76 2 ships same day
048 175-6052 15amp rectifier $24.09 1 ships same day
049 N/A Not available Call for price 1 (Interconnect cord - control console to base) (1240 and 1260) usually ships 3-26 days
050 175-6124 Cord grip $10.12 1 usually ships 1-5 days
051 175-6158 Nut 1/2 conduit $3.96 1 usually ships 5-16 days
052 175-6011 120V 100 PSI pump $476.08 1 (before SN 10191883 on models 1240 and 1260) usually ships 5-16 days
053 175-3011 Female terminal $2.31 1 (before SN 10191883 on models 1240 and 1260) usually ships 5-16 days
054 175-6019 90 degree barbed elbow $7.48 1 (before SN 10191883 on models 1240 and 1260) usually ships 5-16 days
