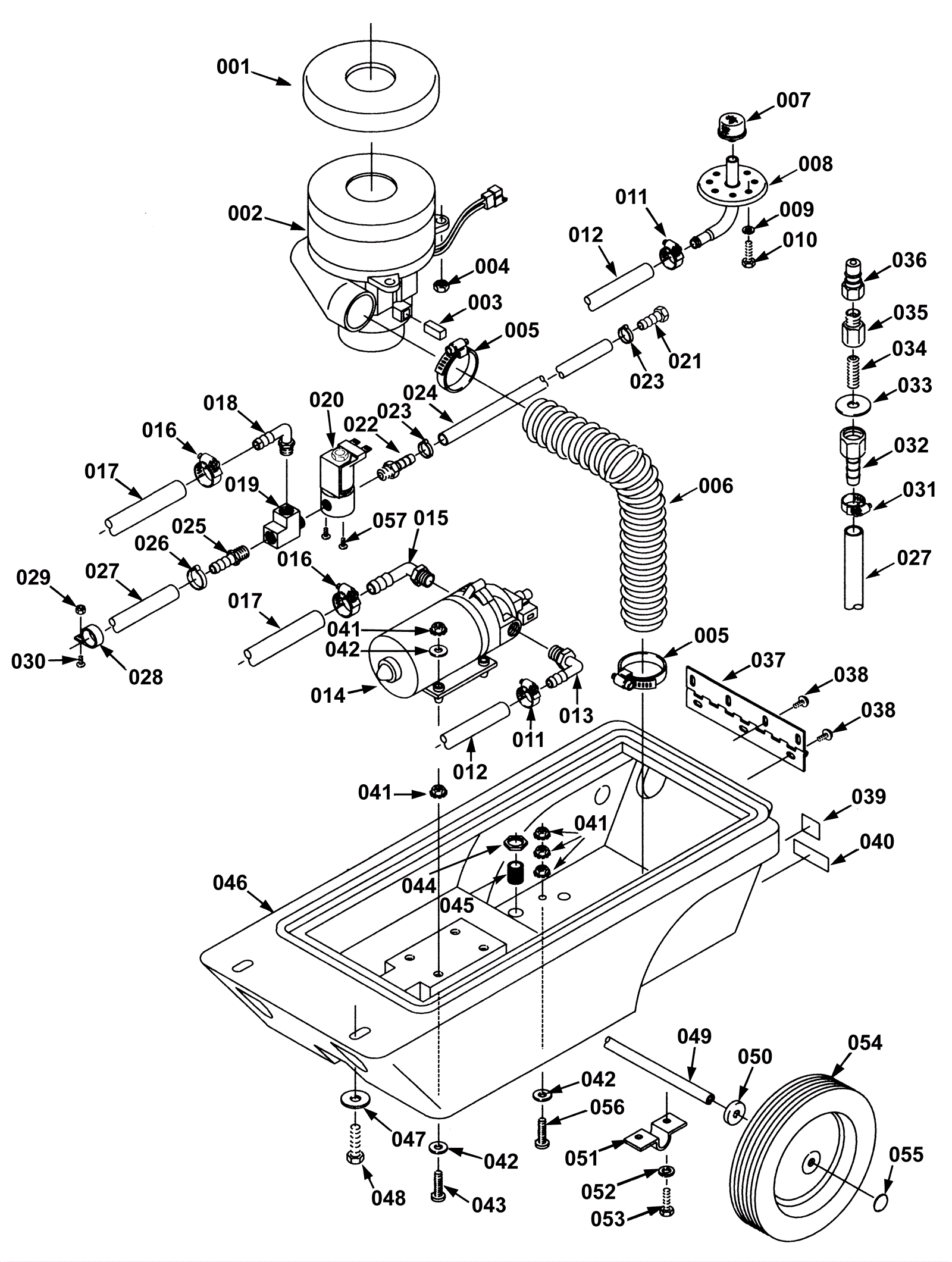

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
175-6084
|
Vacuum motor gasket |
1 |
|
|
002a |
175-0198
|
120V 3 stage vacuum motor |
1 |
(OEM) |
|
002b |
991-1213
|
120V 3 stage vacuum motor tangential |
1 |
(NON-OEM) |
|
003 |
175-6086
|
Carbon brush (pkg of 2) |
1 |
|
|
004 |
999-0152
|
Nut 1/4-20 nylon insert lock zinc plated |
4 |
|
|
005 |
175-2057
|
Hose clamp |
2 |
|
|
006 |
175-6090
|
Exhaust hose 2 x 26 inch (black) |
1 |
|
|
007 |
175-6079
|
Mesh filter screen |
1 |
|
|
008 |
175-6021
|
Bladder plate fitting |
1 |
|
|
009 |
999-0632
|
Washer 1/4 split lock stainless steel |
4 |
|
|
010 |
999-1032
|
Screw 1/4-20 x 5/8 hex head stainless steel |
4 |
|
|
011 |
175-6081
|
Hose clamp |
2 |
|
|
012 |
175-7216
|
Hose 3/8 x 31 inch (gray) |
1 |
|
|
013 |
175-6019
|
90 degree barbed elbow |
1 |
|
|
014a |
175-6011
|
120V 100 PSI pump |
1 |
(OEM) |
|
014b |
991-8225
|
Shurflo pump |
1 |
(NON-OEM) |
|
015 |
175-6016
|
Elbow |
1 |
|
|
016 |
175-0199
|
Hose clamp |
2 |
|
|
017 |
175-4870
|
Hose |
1 |
|
|
018 |
175-2844
|
90 degree elbow fitting |
1 |
|
|
019 |
175-6029
|
Straight tee |
1 |
|
|
020a |
175-6025
|
Solution solenoid valve |
1 |
(if solenoid valve is leaking try replacing the plunger with spring first before replacing entire solenoid valve) |
|
020b |
991-8598
|
Replacement plunger with spring for solenoid valve |
1 |
|
|
021 |
175-6043
|
Hosebarb |
1 |
|
|
022 |
175-6024
|
Hosebarb |
1 |
|
|
023 |
175-6170
|
Hose clamp |
2 |
|
|
024 |
175-7364
|
16 inch hose (gray) |
1 |
|
|
025 |
175-6030
|
Straight hosebarb |
1 |
|
|
026 |
175-6032
|
Hose clamp |
1 |
|
|
027 |
175-7217
|
52 inch hose (gray) |
1 |
|
|
028 |
175-0988
|
P clamp |
1 |
|
|
029 |
999-0442
|
Nut 10-24 nylon insert lock stainless steel |
3 |
|
|
030 |
999-1029
|
Screw 10-24 x 5/8 truss head phillips stainless steel |
1 |
|
|
031 |
175-6081
|
Hose clamp |
1 |
|
|
032 |
175-6022
|
Brass fitting |
1 |
|
|
033 |
999-0187
|
Washer 1/2 flat plain finish |
1 |
|
|
034 |
175-6015
|
Nipple |
1 |
|
|
035 |
175-6014
|
Adapter |
1 |
|
|
036 |
991-8150
|
1/4 inch BH2-61 male nipple (mate to QD80) |
1 |
|
|
037 |
175-6077
|
Tank hinge |
1 |
|
|
038 |
999-0557
|
Screw 1/4-20 x 1/2 truss head slotted stainless steel |
7 |
|
|
039 |
N/A
|
Not available |
1 |
(Serial tag decal) |
|
040 |
275-9008
|
Warning decal |
1 |
|
|
041 |
999-0356
|
Nut 10-24 lock stainless steel |
11 |
|
|
042 |
999-0393
|
Washer 3/16 flat aluminum |
7 |
|
|
043 |
999-1195
|
Screw 10-24 x 1 1/4 round head phillips zinc plated |
4 |
|
|
044 |
175-6158
|
Nut 1/2 conduit |
1 |
|
|
045 |
175-6124
|
Cord grip |
1 |
|
|
046 |
275-5126
|
Chassis (teal) (OBSOLETE) |
1 |
|
|
047 |
999-0617
|
Washer 3/8 x 1 flat stainless steel |
2 |
|
|
048 |
999-0038
|
Bolt 3/8-16 x 1 hex head grade 5 zinc plated |
2 |
|
|
049 |
175-6095
|
Axle |
1 |
|
|
050 |
999-0187
|
Washer 1/2 flat plain finish |
2 |
|
|
051 |
175-6098
|
Axle bracket |
2 |
|
|
052 |
999-0632
|
Washer 1/4 split lock stainless steel |
4 |
|
|
053 |
999-1032
|
Screw 1/4-20 x 5/8 hex head stainless steel |
4 |
|
|
054 |
175-6096
|
Wheel |
2 |
|
|
055 |
175-6097
|
Hub cap |
2 |
|
|
056 |
999-0009
|
Screw 10-24 x 1 round head slotted zinc plated |
1 |
|
|
057 |
999-1165
|
Screw 8-32 x 3/8 truss head phillips stainless steel |
2 |
|
|
