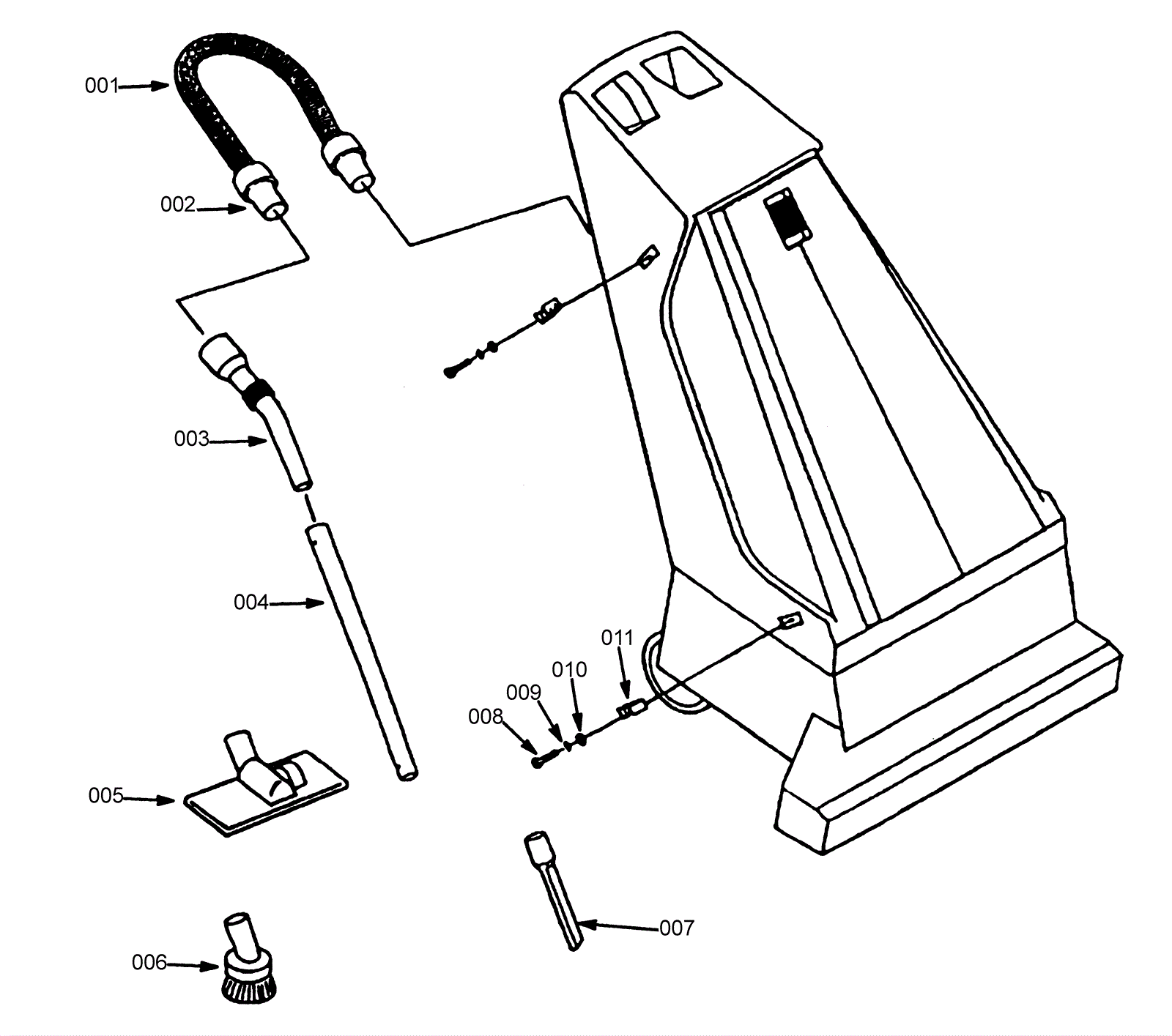

| # | Part | Description |
Req | Notes | Availability |
|---|
001a |
275-4131
|
Wand kit |
1 |
|
|
001b |
275-8033
|
Hose assembly 1 1/4 x 28 inch (black) (OBSOLETE) |
1 |
|
|
001c |
275-8033
|
Hose assembly 1 1/4 x 28 inch (black) (OBSOLETE) |
1 |
|
|
002a |
175-0012
|
Hose cuff |
2 |
|
|
002b |
175-4382
|
Standard attachment tool kit |
1 |
|
|
003 |
175-4383
|
Hose end (chrome) (OBSOLETE) |
1 |
|
|
004 |
175-0020
|
Bushing (OBSOLETE) |
1 |
|
|
005 |
175-3598
|
Pickup tool |
1 |
|
|
006 |
175-4384
|
Dusting brush |
1 |
|
|
007 |
175-0039
|
Crevice tool (OBSOLETE) |
1 |
|
|
008 |
999-1042
|
Screw M4-1 x 12mm pan head phillips zinc |
2 |
|
|
009 |
175-4525
|
Lock washer |
2 |
|
|
010 |
999-1158
|
Washer #6 flat stainless steel |
2 |
|
|
011 |
175-4526
|
Spring clip |
2 |
|
|
