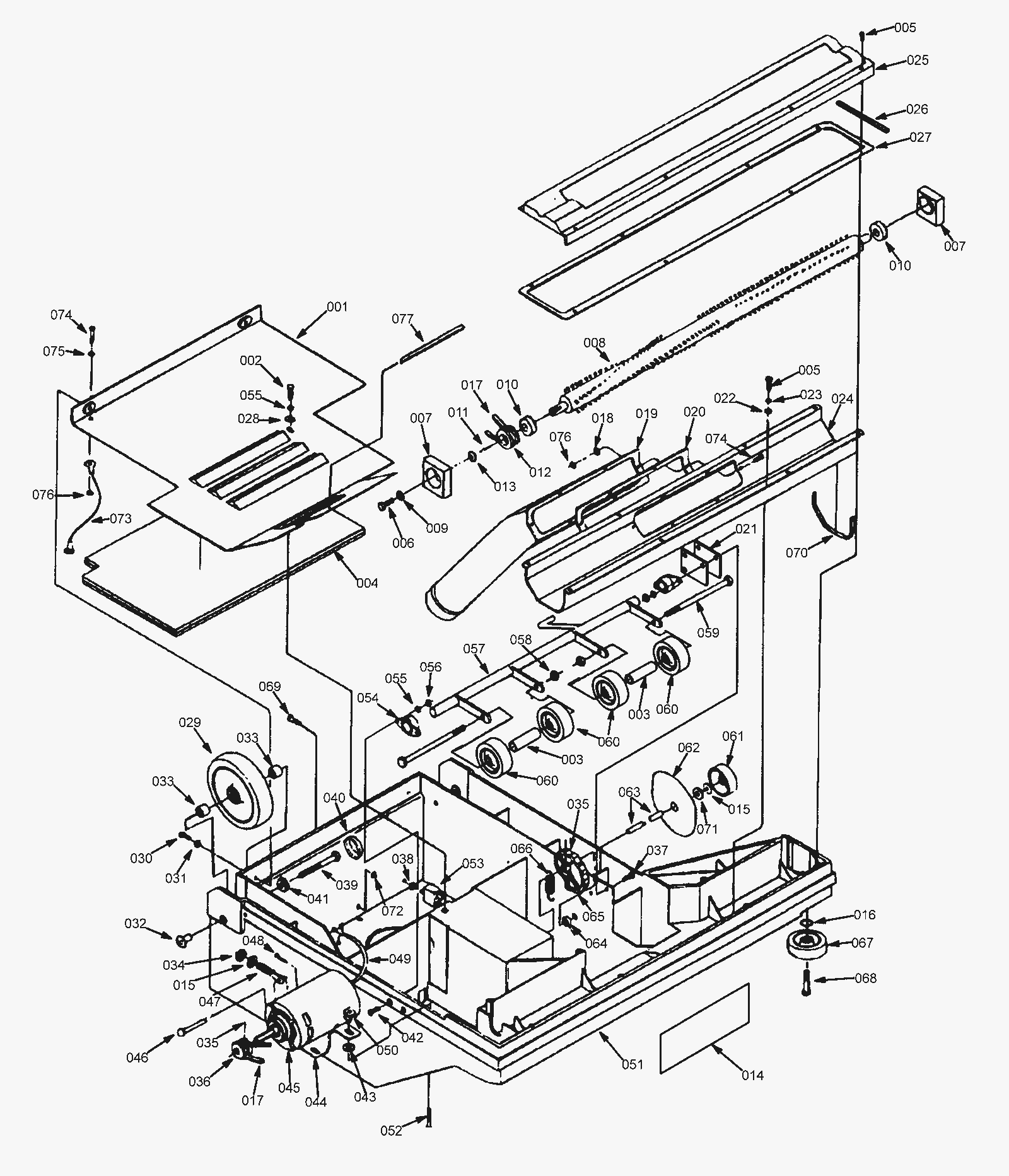

Brush Base Assembly

#PartDescription ReqNotesAvailability
001 175-4468 Bottom cover plate 1
002 999-1168 Screw M6-1 x 20mm pan head phillips stainless steel 1
003 275-8028 Spacer 19/50 X 31/50 X 2 3/4 2
004 175-4470 Sound foam (OBSOLETE) 1
005a 999-1040 Screw M3-.5 x 20mm pan head 10
005b 175-4471 Brush assembly with left and right stubs 1
006 999-0644 Bolt 1/4-20 x 1/2 hex head stainless steel 1
007 175-4472 Bearing mount 2
008 175-4010 30 inch brush assembly with pins 1
009 999-0632 Washer 1/4 split lock stainless steel 1
010 175-0957 Brush bearing 2
011 175-4476 Square keyway 1
012 175-4477 Brush pulley 1
013 999-1407 Washer 5/16 belleville 1
014 175-1149 Nobles decal (OBSOLETE) 1
015 999-0032 Washer 3/8 USS flat plain finish 2
016 175-4479 O-ring 1
017 175-4480 V-belt 1
018 999-9089 Washer M4 flat stainless steel 6
019 175-4481 Debris inlet 1
020 175-4482 Debris inlet gasket 1
021 275-8029 Reinforcing roller weldment bracket 2
022 999-0250 Bolt M5-.8 x 10mm hex head full thread 2
023 999-0051 Washer #6 medium split lock 2
024 175-4483 Brush chamber 1
025 175-4484 Skid 1
026 275-8030 7 inch brush seal 2
027 175-4486 Skid gasket (OBSOLETE) 1
028 999-0006 Washer 3/16 flat zinc plated 1
029 175-4488 Rear wheel 2
030 999-1029 Screw 10-24 x 5/8 truss head phillips stainless steel 2
031 999-0998 Washer #10 flat stainless steel 2
032 175-4489 Bushing 2
033 175-4490 Wheel spacer 9.5mm 4
034 999-0513 Nut 3/8-16 nylon insert lock type NE stainless steel 1
035 275-8031 Screw 8-32 X 1/2 socket set 2
036 175-4493 Motor pulley 1
037 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish 3
038 999-9099 Washer M10 flat stainless steel 1
039 175-4495 Screw 3/8-16 x 63.5mm 2
040 175-1096 Wheel cap 2
041 175-4496 Washer cap mount (OBSOLETE) 2
042 999-1224 Screw M6-1 x 20mm flat head phillips stainless steel 2
043 175-1097 Washer flat stainless steel 4
044a 175-4497 Brush motor assembly (OBSOLETE) 1
044b 275-5083 Carbon brushes 1
045 170-2755 Latch-hopper (OBSOLETE) 1
046 175-4498 Clevis pin (OBSOLETE) 1
047 175-4499 Belt tension stud (OBSOLETE) 1
048 175-3272 Cotter pin 1
049 175-4501 Base wire harness 1
050 175-4502 Nut 4
051 175-4503 Lower frame (charcoal) 1
052 175-4504 Screw 1/4-20 x 1 4
053 175-1408 7amp circuit breaker 1
054 175-4505 Bearing 2
055 999-0364 Washer #6 internal star lock zinc plated 6
056 999-0439 Nut M6-1 hex coarse thread 5
057 175-4506 Roller weldment 1
058 999-0628 Nut 3/8-16 hex jam stainless steel 2
059 175-4508 Screw 3/8-16 x 5.5 inch grade 5 hex head 2
060 991-2013 Wheel 4
061 175-4510 Brush adjustment knob 1
062 175-4511 Brush adjustment decal 1
063 175-4512 Adjustment cam shaft 1
064 175-4513 Collar shaft 1
065 175-4514 Adjustment cam 1
066 275-8032 Extension spring 1
067 175-0117 Guide wheel with bushing 1
068 175-4516 Screw M8 x 40mm 1
069 999-0009 Screw 10-24 x 1 round head slotted zinc plated 1
070 275-8030 7 inch brush seal 2
071 175-1721 Washer 1/2 x 3/8 x 1/8 felt 1
072 999-0356 Nut 10-24 lock stainless steel 3
073 175-4519 Wire assembly (OBSOLETE) 1
074 999-1042 Screw M4-1 x 12mm pan head phillips zinc 7
075 999-1083 Washer #8 internal star lock stainless steel 1
076 999-0954 Nut M4-.7 nylon insert lock stainless steel 7
077 175-4521 Plastic bulk edging 1
