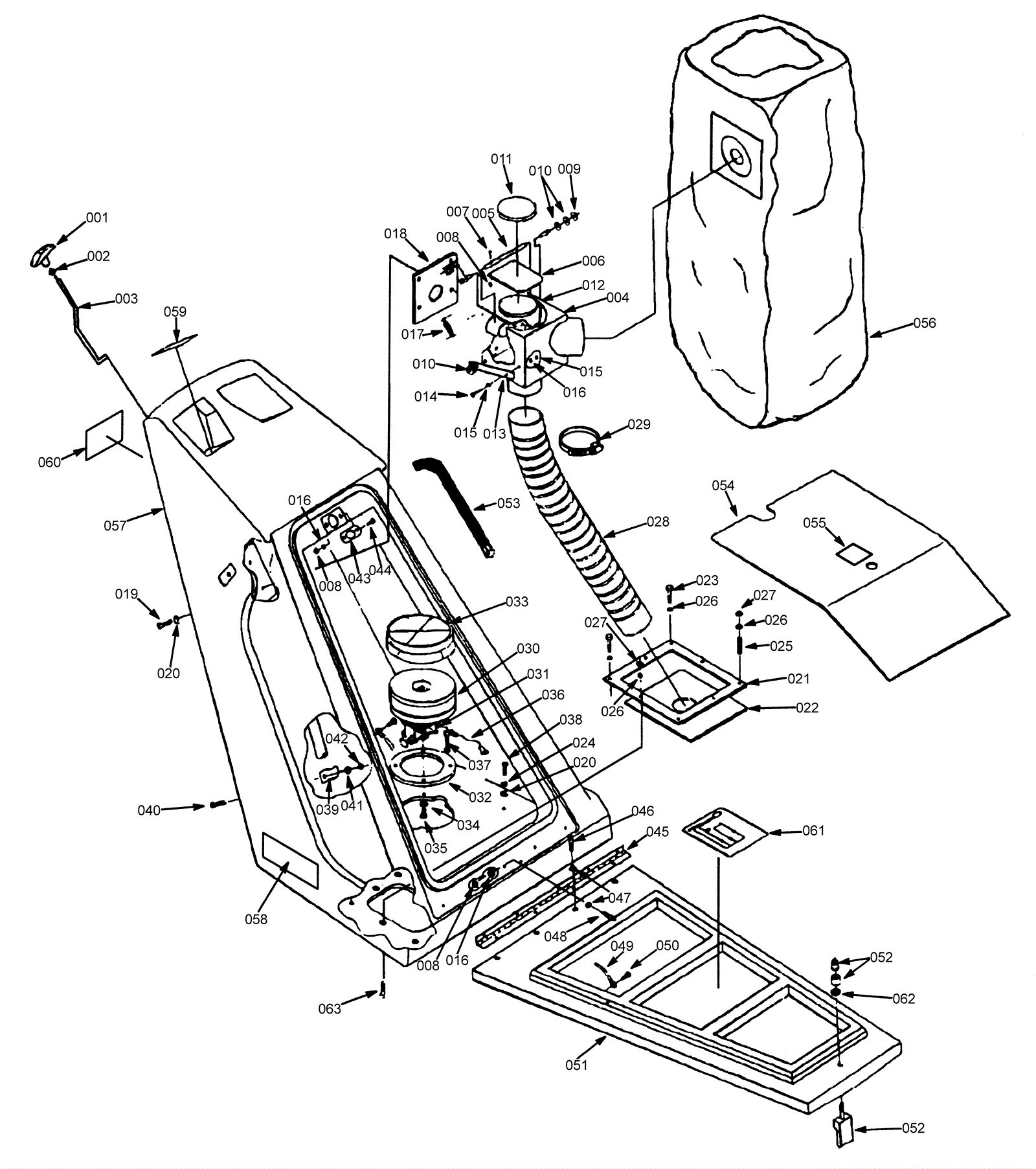

MAGNATWIN3000 608577 Upper Housing Assembly 2

#PartDescriptionPriceReqNotesAvailability
001 275-8018 Chamber rod knob $14.30 1 usually ships 1-5 days
002 999-0181 Nut 1/4-20 hex jam plain finish $0.99 1 ships same day
003 175-4528 Chamber rod $123.20 1 usually ships 5-16 days
004 175-4529 Vacuum chamber $189.09 1 usually ships 1-5 days
005 175-4530 Chamber adaptor rod $122.87 1 usually ships 1-5 days
006 175-4531 Chamber adaptor plate $30.36 1 usually ships 1-5 days
007 275-8019 Screw M04 X 12 mm $3.30 2 usually ships 1-5 days
008 999-0954 Nut M4-.7 nylon insert lock stainless steel $0.99 9 ships same day
009 275-8020 E-ring $2.31 1 usually ships 1-5 days
010 999-9097 Washer M8 flat stainless steel $0.99 3 ships same day
011 175-4535 Upper chamber gasket $12.32 1 usually ships 1-5 days
012 175-4536 Lower chamber gasket $77.11 1 usually ships 1-5 days
013 175-4537 Spring support $28.49 1 usually ships 1-5 days
014 175-4538 Screw M4 x 20mm $3.19 1 usually ships 1-5 days
015 999-0954 Nut M4-.7 nylon insert lock stainless steel $0.99 2 ships same day
016 999-0250 Bolt M5-.8 x 10mm hex head full thread $0.99 8 ships same day
017 175-4539 Chamber adaptor spring $11.66 1 usually ships 1-5 days
018 175-4540 Chamber gasket $5.28 1 usually ships 1-5 days
019 999-1080 Screw 1/4-20 x 5/8 truss head phillips stainless steel $0.99 4 ships same day
020 999-0006 Washer 3/16 flat zinc plated $0.99 10 ships same day
021 175-4541 Seal plate $39.82 1 usually ships 1-5 days
022 175-4542 Seal $13.64 1 usually ships 5-16 days
023 999-0779 Screw M6-1 x 25mm hex head plain finish $0.99 2 ships same day
024 999-0364 Washer #6 internal star lock zinc plated $0.99 6 ships same day
025 175-4543 Screw M6 x 30 set $4.40 1 usually ships 1-5 days
026 999-1117 Washer M6 split lock stainless steel $0.99 8 ships same day
027 999-0439 Nut M6-1 hex coarse thread $0.99 6 ships same day
028 275-8021 Hose 3 X 23 inch (black) $66.11 1 usually ships 5-16 days
029a 275-8022 4 inch hose clamp (OBSOLETE) $4.49 2 usually ships 1-5 days
029b 175-4547 Vacuum motor with gasket $258.06 2 usually ships 5-16 days
030 175-1206 Dome plug (OBSOLETE) $1.85 2 usually ships 1-5 days
031 175-0044 Carbon brush $25.74 2 usually ships 5-16 days
032a 175-0249 Vacuum motor gasket $9.68 2 usually ships 5-16 days
032b 175-0142 1/4 inch male terminal $3.96 4 usually ships 5-16 days
033 991-5119 Vacuum motor filter $1.35 2 ships same day
034 999-0998 Washer #10 flat stainless steel $0.99 8 ships same day
035 175-4548 Screw 10-24 x 1 pan head phillips zinc $3.19 8 usually ships 1-5 days
036 175-4549 Green wire assembly $5.39 2 usually ships 1-5 days
037 175-4550 Ground screw $2.42 2 usually ships 1-5 days
038 999-1312 Screw M6-1 x 20mm hex head stainless steel $0.99 6 ships same day
039 275-8023 Clamp $5.28 1 usually ships 1-5 days
040 999-1224 Screw M6-1 x 20mm flat head phillips stainless steel $2.48 1 ships same day
041 999-0006 Washer 3/16 flat zinc plated $0.99 1 ships same day
042 999-0469 Nut M6-1 nylon insert lock zinc plated $1.32 1 ships same day
043 175-4554 Latch plate $35.09 1 usually ships 1-5 days
044 175-4555 Screw M4 x 16mm $1.54 2 usually ships 1-5 days
045 175-4556 Hinge $20.24 1 usually ships 1-5 days
046 999-0530 Screw M4-.7 x 8mm pan head slotted zinc $0.99 4 ships same day
047 175-4557 Washer $2.75 9 usually ships 1-5 days
048 175-0914 Screw pan head phillips $2.31 5 usually ships 1-5 days
049 175-4558 Door cable $13.75 1 usually ships 1-5 days
050 175-4559 Screw 16 mm $1.54 2 usually ships 1-5 days
051 275-8024 Green cover $334.62 1 usually ships 1-5 days
052 175-4561 Cover swell latch $60.50 1 usually ships 5-16 days
053 175-4562 Door opening gasket $41.91 1 usually ships 1-5 days
054 275-6251 Vacfan cover $132.88 1 usually ships 5-16 days
055 175-4564 Warning vacuum fans decal $27.28 1 usually ships 1-5 days
056a 175-4565 Vacuum cloth bag $113.52 1 usually ships 5-16 days
056b 175-9637 Paper filter bag (pkg of 10) $25.96 1 ships same day
057 275-8025 Green handle assembly (OBSOLETE) $606.10 1 usually ships 5-16 days
058 275-8026 Warning label (OBSOLETE) $5.28 8 usually ships 1-5 days
059 175-4568 Caution vacuum on decal $5.50 1 usually ships 1-5 days
060 275-8006 Warning decal $13.20 1 usually ships 1-5 days
061 275-8027 Electrical decal (OBSOLETE) $8.36 1 usually ships 1-5 days
062 175-6139 Spacer $3.85 1 usually ships 5-16 days
063 999-1224 Screw M6-1 x 20mm flat head phillips stainless steel $2.48 5 ships same day
