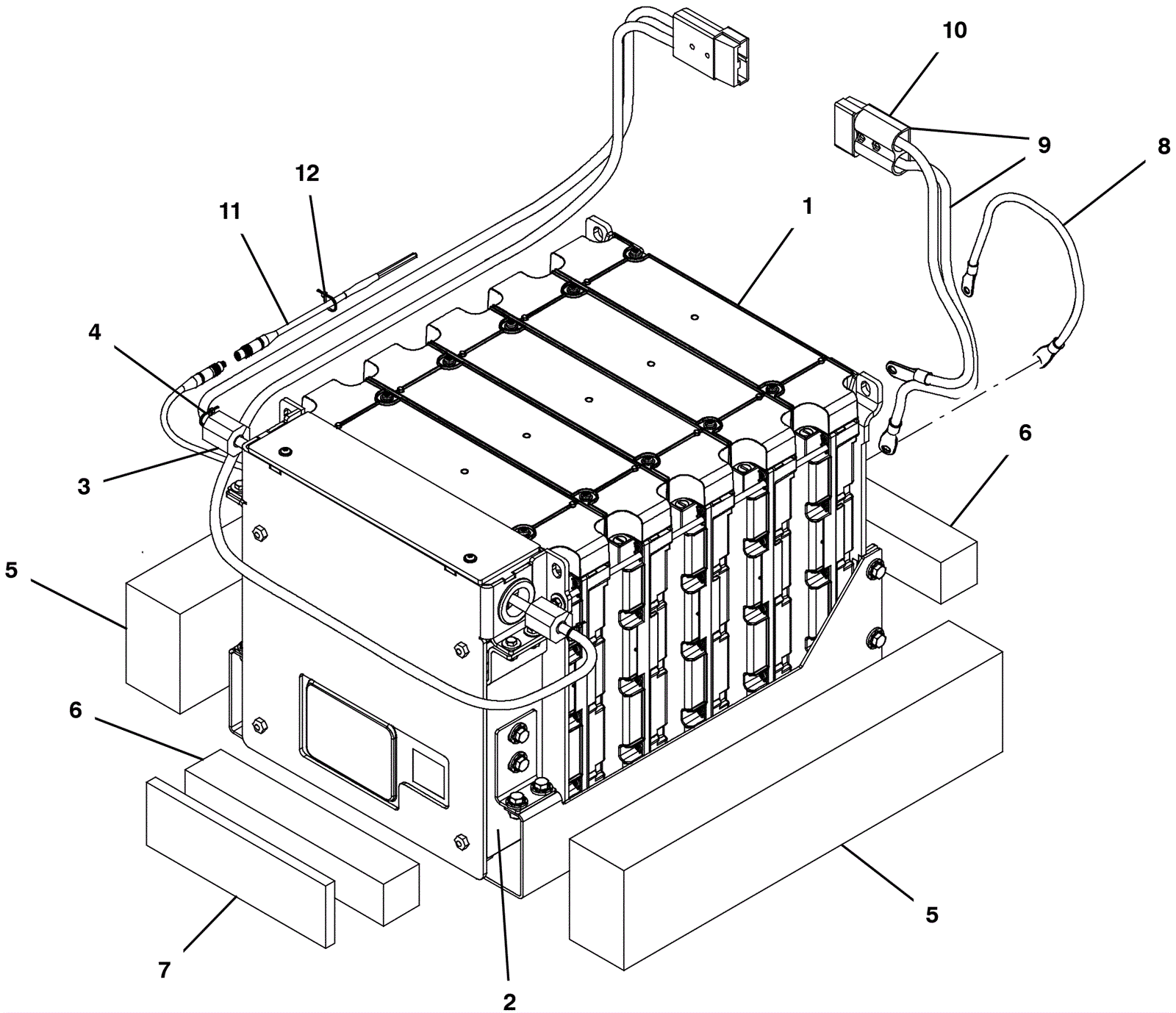

| # | Part | Description |
Req | Notes | Availability |
|---|
1a |
375-2518
|
36V 278Ah lithium-ion battery |
1 |
(includes 2-4) (requires Tennant True service or an authorized Tennant service provider) |
|
1b |
375-2519
|
36V 222Ah lithium-ion battery |
1 |
(includes 2-4) (requires Tennant True service or an authorized Tennant service provider) |
|
1c |
375-2520
|
36V 111Ah lithium-ion battery (OBSOLETE) |
1 |
(includes 2-4) (requires Tennant True service or an authorized Tennant service provider) |
|
2 |
375-2521
|
Battery controller |
1 |
(requires Tennant True service or an authorized Tennant service provider) |
|
3 |
575-0329
|
INDUCTOR, 12.7MMID [156 IMP AT 25MHZ] (Tennant Industrial) |
2 |
|
|
4 |
275-0126
|
TIE, CABLE, 6.0L, 1.25D MAX (Tennant Industrial) |
2 |
|
|
5 |
175-2128
|
Battery spacer |
2 |
|
|
6a |
375-2512
|
Foam battery spacer |
1 |
|
|
6b |
375-2513
|
Battery spacer |
2 |
|
|
7a |
375-2514
|
Battery spacer |
1 |
|
|
7b |
375-2515
|
Battery spacer |
1 |
|
|
8 |
375-3320
|
4 gauge battery jumper cable 15 inch (red) |
1 |
|
|
9 |
375-2516
|
Battery cable assembly (Tennant Industrial) |
1 |
(includes 10) |
|
10 |
991-2112
|
175amp charger plug with pins (gray) SB175 |
1 |
|
|
11 |
375-2517
|
Battery control harness |
1 |
|
|
12 |
175-2162
|
Nylon wire tie |
2 |
|
|
