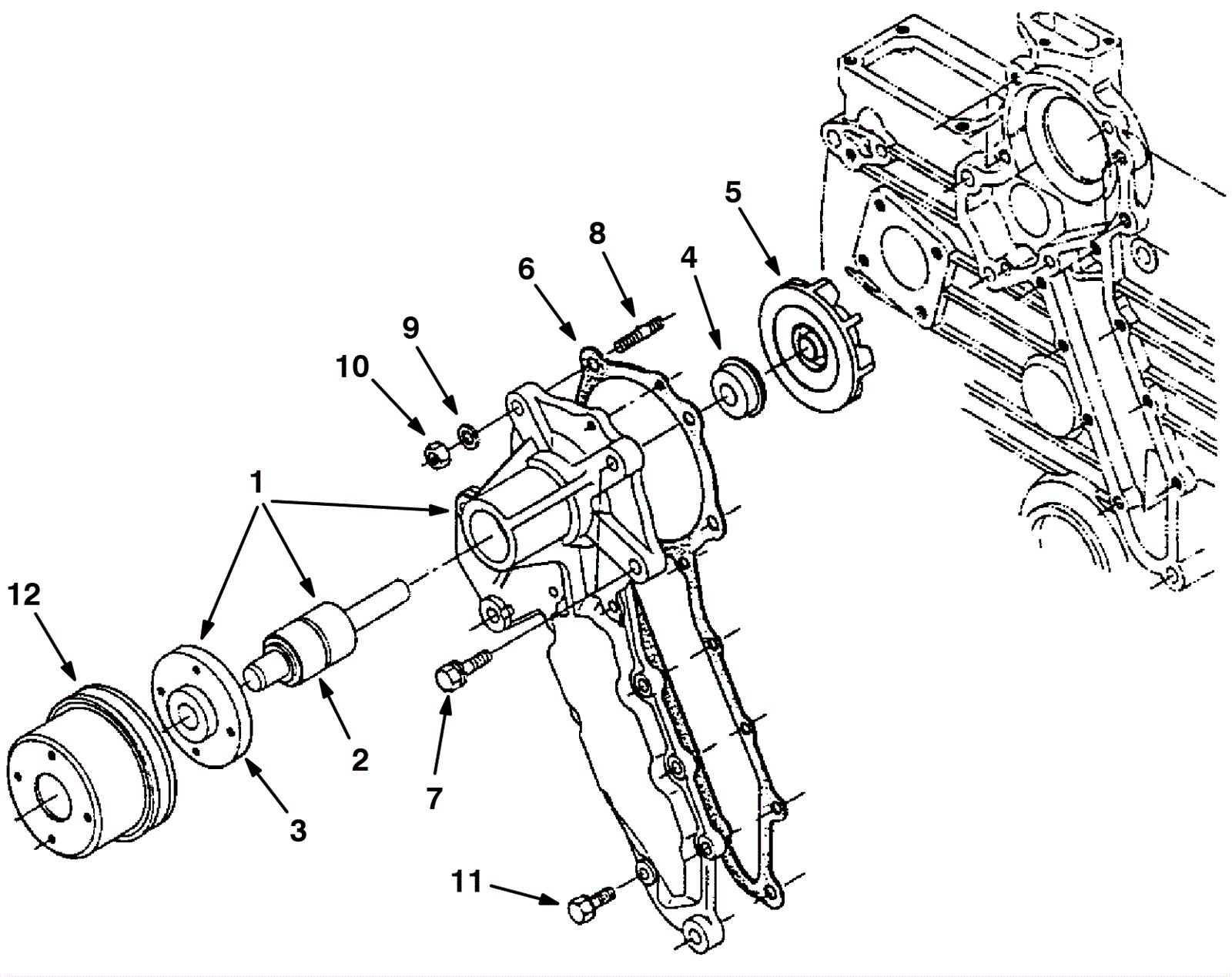

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
675-4720
|
VR, PUMP, WATER [KU] (Tennant Industrial) |
1 |
(includes 2-3) |
|
2 |
375-2474
|
Ball bearing (OBSOLETE) |
1 |
|
|
3 |
375-2475
|
Water pump flange (OBSOLETE) |
1 |
|
|
4 |
575-7721
|
VR, SEAL SET (Tennant Industrial) |
1 |
|
|
5 |
575-8063
|
VR, IMPELLER (Tennant Industrial) |
1 |
|
|
6 |
575-3328
|
VR, GASKET (Tennant Industrial) |
1 |
|
|
7 |
475-8659
|
VR, BOLT (Tennant Industrial) |
2 |
|
|
8 |
475-9352
|
VR, STUD (Tennant Industrial) |
2 |
|
|
9 |
175-8507
|
VR, WASHER, LOCK, SPLIT [KU,04512-50080] (Tennant Industria |
2 |
|
|
10 |
275-3839
|
VR, NUT (Tennant Industrial) |
2 |
|
|
11 |
175-8342
|
VR, SCREW, HEX [KU] (Tennant Industrial) |
8 |
|
|
12 |
375-2476
|
Fan pulley (OBSOLETE) |
1 |
|
|
