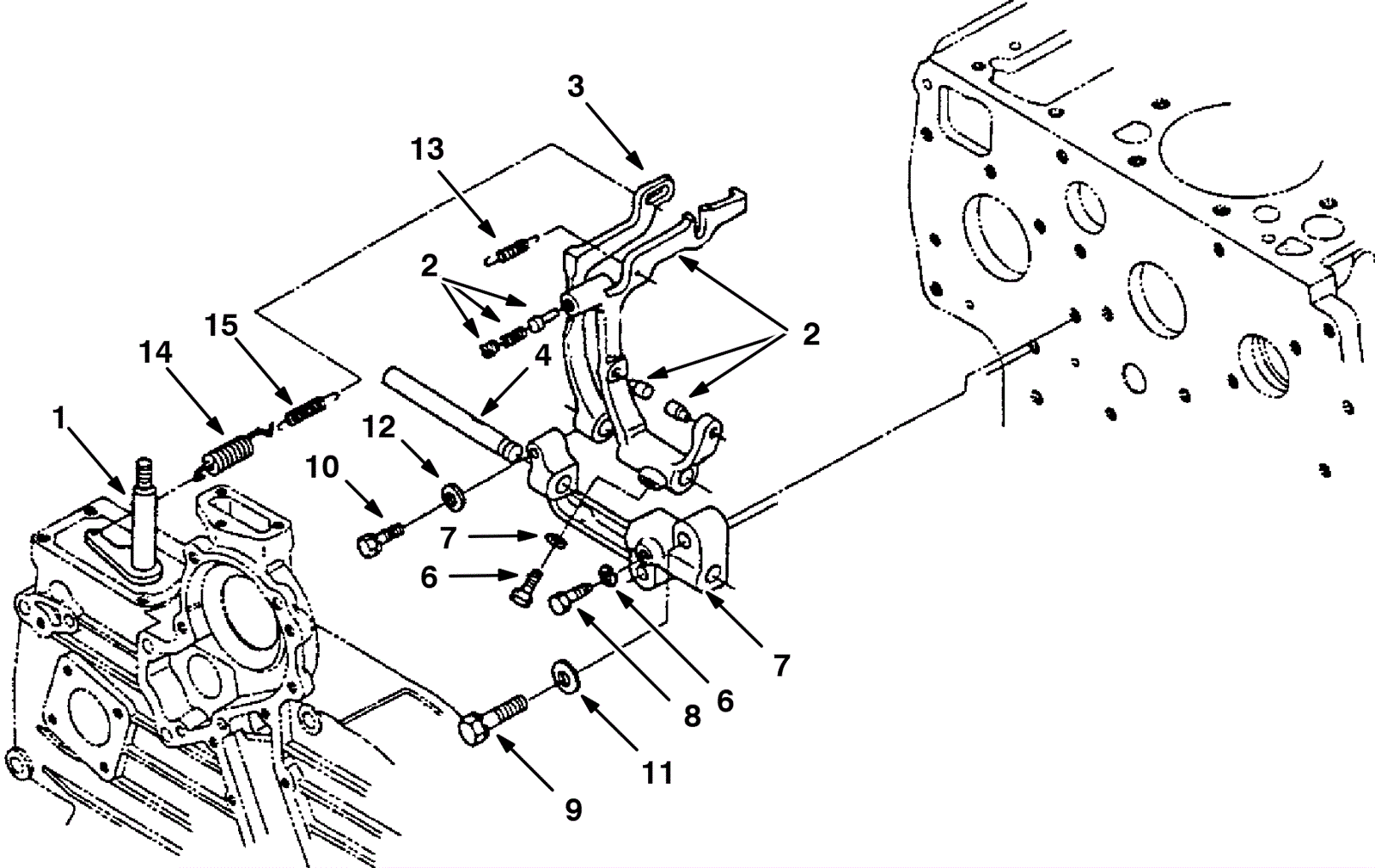

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
575-6170
|
VR, LEVER (Tennant Industrial) |
1 |
|
|
2 |
375-2448
|
Fork lever assembly (OBSOLETE) |
1 |
(includes 3-7) |
|
3 |
375-2449
|
Fork lever (OBSOLETE) |
1 |
|
|
4 |
375-2450
|
Fork lever shaft (OBSOLETE) |
1 |
|
|
5 |
375-2451
|
Lever shaft bolt (OBSOLETE) |
1 |
|
|
6 |
175-8353
|
VR, WASHER, LOCK, SPLIT [KU] (Tennant Industrial) |
2 |
|
|
7 |
375-2452
|
Fork lever holder (OBSOLETE) |
1 |
|
|
8 |
375-2453
|
Bolt (OBSOLETE) |
1 |
|
|
9 |
475-8679
|
BOLT (Tennant Industrial) |
2 |
|
|
10 |
375-2454
|
Bolt (OBSOLETE) |
1 |
|
|
11 |
175-8496
|
VR, WASHER, FLAT [KU] (Tennant Industrial) |
2 |
|
|
12 |
N/A
|
Not available |
1 |
(spring washer) |
|
13 |
375-2455
|
Start spring (OBSOLETE) |
1 |
|
|
14 |
375-2456
|
Governor spring (OBSOLETE) |
1 |
|
|
15 |
375-2457
|
Governor spring (OBSOLETE) |
1 |
|
|
