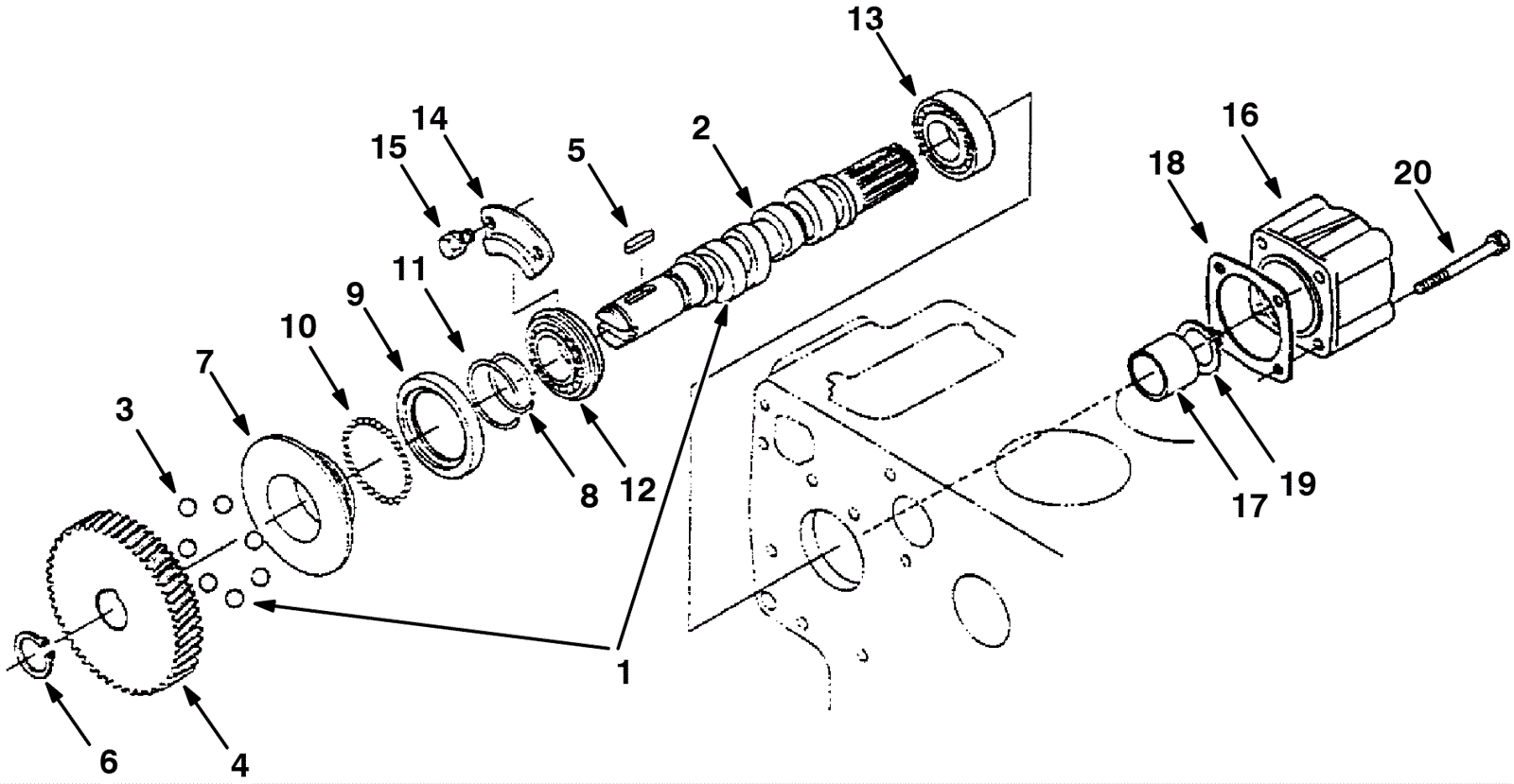

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
375-1784
|
Fuel camshaft assembly (OBSOLETE) |
1 |
(includes 2-3) |
|
2 |
675-7132
|
VR, CAMSHAFT, FUELKU (Tennant Industrial) |
1 |
|
|
3 |
375-1785
|
Ball (OBSOLETE) |
7 |
|
|
4 |
375-1786
|
Injection pump gear (OBSOLETE) |
1 |
|
|
5 |
375-1787
|
Feather key (OBSOLETE) |
1 |
|
|
6 |
375-1788
|
External cir-clip |
1 |
|
|
7 |
375-1789
|
Governor sleeve (OBSOLETE) |
1 |
|
|
8 |
375-1790
|
Governor sleeve cir-clip (OBSOLETE) |
1 |
|
|
9 |
575-7573
|
VR, CASE, BALL KU (Tennant Industrial) |
1 |
|
|
10 |
375-1791
|
Ball (OBSOLETE) |
39 |
|
|
11 |
375-1792
|
Cir-clip (OBSOLETE) |
1 |
|
|
12 |
575-3374
|
VR, BEARING, BALL [KU] (Tennant Industrial) |
1 |
|
|
13 |
675-0648
|
VR, BEARING, BALL (Tennant Industrial) |
1 |
|
|
14 |
375-1793
|
Stopper (OBSOLETE) |
1 |
|
|
15 |
175-8306
|
VR, SCREW, HEX [KU] (Tennant Industrial) |
2 |
|
|
16 |
375-1794
|
Camshaft fuel cover (OBSOLETE) |
1 |
|
|
17 |
375-1795
|
Collar (OBSOLETE) |
1 |
|
|
18 |
375-1796
|
Gasket (OBSOLETE) |
1 |
|
|
19 |
375-1797
|
External cir-clip (OBSOLETE) |
1 |
|
|
20 |
375-1798
|
Bolt (OBSOLETE) |
4 |
|
|
