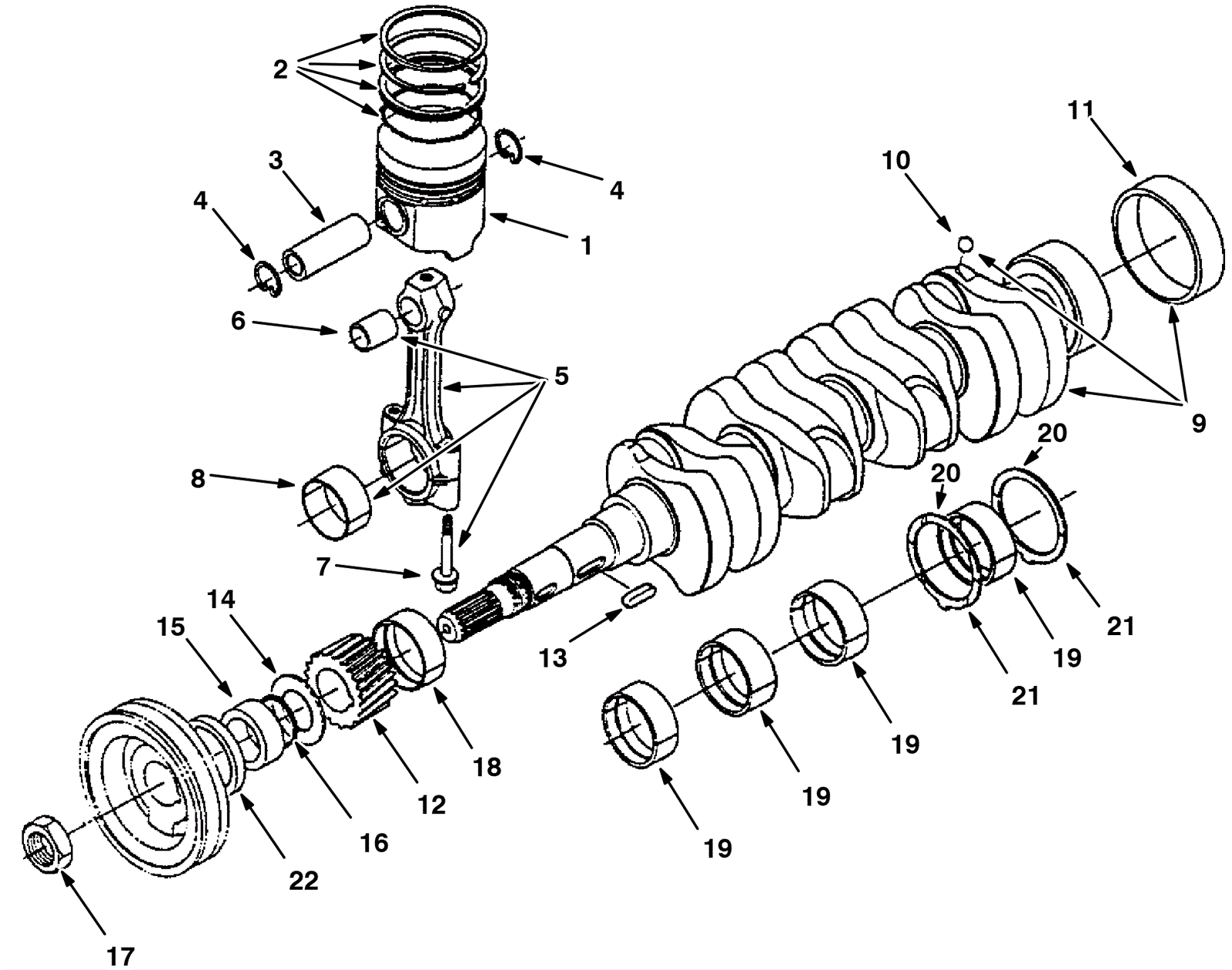

| # | Part | Description |
Req | Notes | Availability |
|---|
1a |
375-1762
|
Piston (OBSOLETE) |
4 |
|
|
1b |
375-1763
|
Piston (OBSOLETE) |
4 |
|
|
2a |
375-1764
|
Piston ring (OBSOLETE) |
4 |
|
|
2b |
675-3455
|
VR, SEAL, ORG (Tennant Industrial) |
4 |
|
|
3 |
375-1765
|
Piston pin (OBSOLETE) |
4 |
|
|
4 |
375-1766
|
Piston pin clip (OBSOLETE) |
8 |
|
|
5 |
375-1767
|
Connecting rod assembly (OBSOLETE) |
4 |
(includes 6-8c) |
|
6 |
575-2796
|
VR, BUSHING, PIN (Tennant Industrial) |
2 |
|
|
7 |
575-4333
|
VR, BOLT (Tennant Industrial) |
8 |
|
|
8a |
375-1768
|
Crankpin (OBSOLETE) |
4 |
|
|
8b |
575-6741
|
VR, BEARING [CRANKPIN, KU] (Tennant Industrial) |
4 |
|
|
8c |
375-1769
|
Crankpin (OBSOLETE) |
4 |
|
|
9 |
375-1770
|
Crankshaft assembly (OBSOLETE) |
1 |
(includes 10-11) |
|
10 |
275-3627
|
VR, BALL, CSHFT [KU] (Tennant Industrial) |
4 |
|
|
11 |
375-1771
|
Crankshaft sleeve (OBSOLETE) |
1 |
|
|
12 |
375-1772
|
Crankshaft gear (OBSOLETE) |
1 |
|
|
13 |
475-8811
|
VR, KEY (Tennant Industrial) |
1 |
|
|
14 |
375-1773
|
Oil slinger (OBSOLETE) |
1 |
|
|
15 |
375-1774
|
Crankshaft collar (OBSOLETE) |
1 |
|
|
16 |
475-9678
|
VR, SEAL, ORG (Tennant Industrial) |
1 |
|
|
17 |
375-1775
|
Crankshaft nut (OBSOLETE) |
1 |
|
|
18a |
375-1776
|
Crankshaft (OBSOLETE) |
1 |
|
|
18b |
375-1777
|
Crankshaft (OBSOLETE) |
1 |
|
|
18c |
375-1778
|
Crankshaft (OBSOLETE) |
1 |
|
|
19a |
575-6799
|
VR, BEARING, MAIN (Tennant Industrial) |
4 |
|
|
19b |
575-7109
|
VR, BEARING, MAIN (Tennant Industrial) |
4 |
|
|
19c |
375-1779
|
Crankshaft (OBSOLETE) |
4 |
|
|
20a |
275-3643
|
VR, BEARING, THRUST, STD [KU] (Tennant Industrial) |
2 |
|
|
20b |
375-1780
|
Side (metal) (OBSOLETE) |
2 |
|
|
20c |
375-1781
|
Side (metal) (OBSOLETE) |
2 |
|
|
21a |
275-3646
|
VR, BEARING, THRUST, STD [KU] (Tennant Industrial) |
2 |
|
|
21b |
275-3647
|
VR, BEARING, THRUST [+.2MM, KU] (Tennant Industrial) |
2 |
|
|
21c |
375-2282
|
Thrust bearing (OBSOLETE) |
2 |
|
|
22 |
575-7078
|
VR, SEAL (Tennant Industrial) |
1 |
|
|
