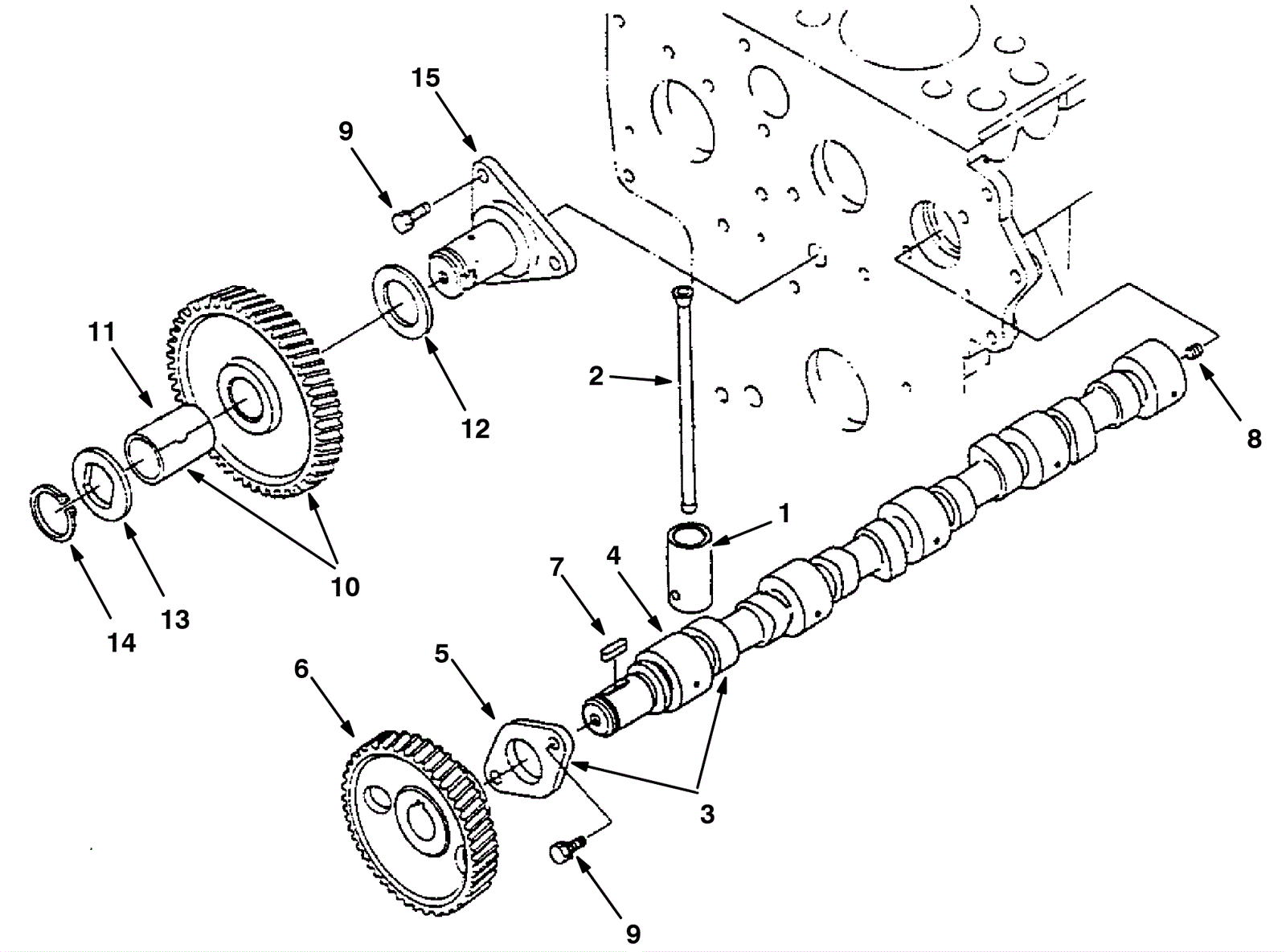

| # | Part | Description |
Req | Notes | Availability |
|---|
1a |
375-2404
|
Tappet (OBSOLETE) |
8 |
|
|
1b |
375-2405
|
Tappet (OBSOLETE) |
8 |
|
|
2 |
375-2406
|
Push rod (OBSOLETE) |
8 |
|
|
3 |
375-2407
|
Camshaft assembly (OBSOLETE) |
1 |
(includes 4-5) |
|
4 |
375-2408
|
Camshaft (OBSOLETE) |
1 |
|
|
5 |
375-2409
|
Camshaft stopper (OBSOLETE) |
1 |
|
|
6 |
375-2410
|
Camshaft gear (OBSOLETE) |
1 |
|
|
7 |
475-8811
|
VR, KEY (Tennant Industrial) |
1 |
|
|
8 |
175-8359
|
VR, SCREW, SET [KU] (Tennant Industrial) |
1 |
|
|
9 |
475-7634
|
VR, BOLT (Tennant Industrial) |
5 |
|
|
10 |
375-2411
|
Idle gear (OBSOLETE) |
1 |
(includes 11) |
|
11 |
375-2412
|
Idle gear bushing (OBSOLETE) |
1 |
|
|
12 |
375-2413
|
Collar (OBSOLETE) |
1 |
|
|
13 |
375-2414
|
Collar (OBSOLETE) |
1 |
|
|
14 |
375-2415
|
External cir-clip (OBSOLETE) |
1 |
|
|
15 |
375-2416
|
Idle gear shaft (OBSOLETE) |
1 |
|
|
