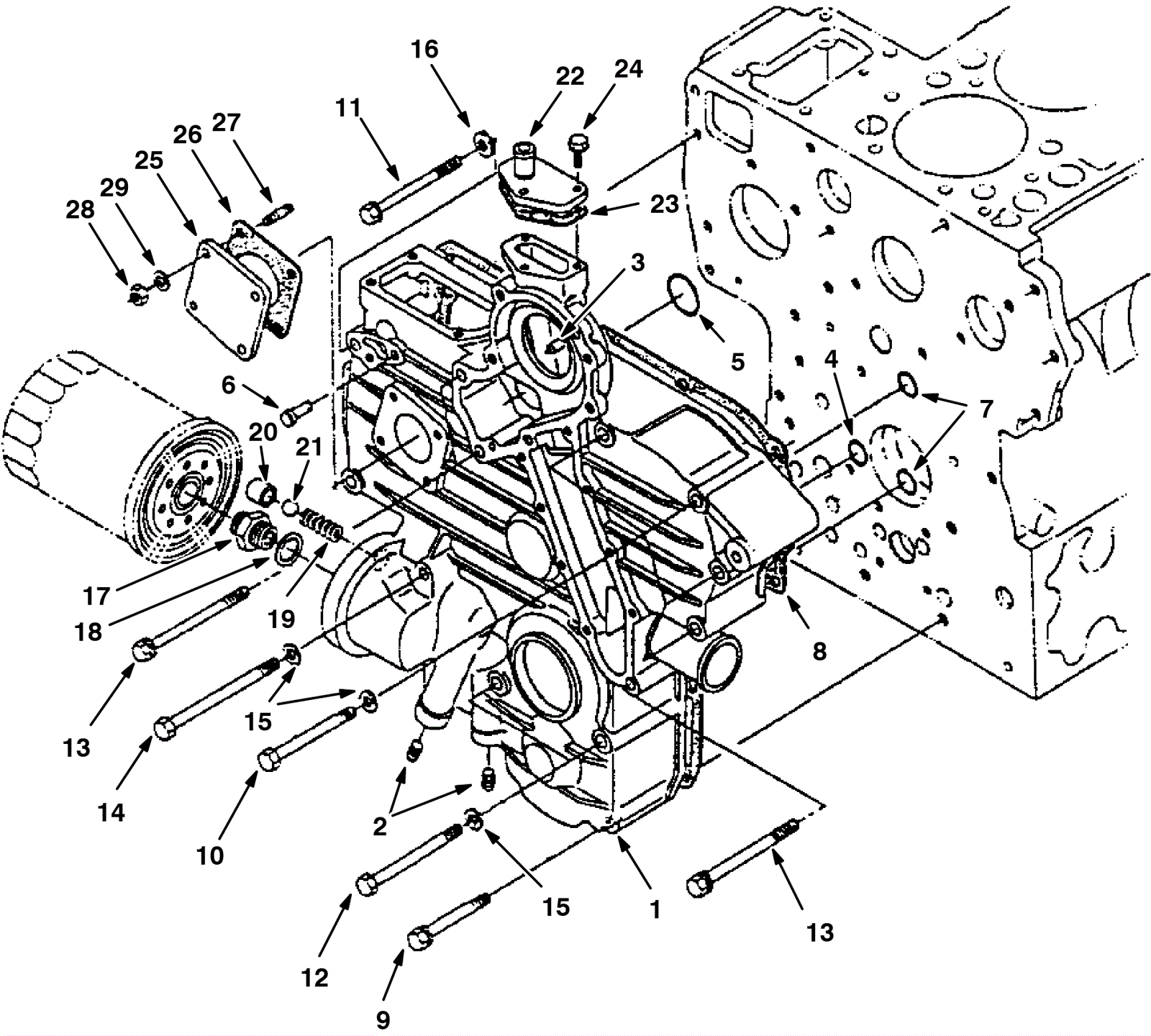

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
375-2369
|
Gear case assembly (OBSOLETE) |
1 |
(includes 2-3) |
|
2 |
375-2370
|
Plug (OBSOLETE) |
2 |
|
|
3 |
375-1982
|
Straight pin (OBSOLETE) |
2 |
|
|
4 |
475-9260
|
VR, SEAL, ORG (Tennant Industrial) |
1 |
|
|
5 |
375-2371
|
Oring (OBSOLETE) |
1 |
|
|
6 |
375-2238
|
Start spring pin (OBSOLETE) |
1 |
|
|
7 |
275-3539
|
VR, SEAL, ORG [KU] (Tennant Industrial) |
5 |
|
|
8 |
375-2372
|
Gear case packing (OBSOLETE) |
1 |
|
|
9 |
375-2373
|
Bolt (OBSOLETE) |
2 |
|
|
10 |
475-9286
|
VR, BOLT, HEX [KU] (Tennant Industrial) |
5 |
|
|
11 |
375-2374
|
Bolt (OBSOLETE) |
1 |
|
|
12 |
475-8677
|
VR, BOLT (Tennant Industrial) |
2 |
|
|
13 |
375-2375
|
Bolt (OBSOLETE) |
3 |
|
|
14 |
375-2376
|
Bolt (OBSOLETE) |
2 |
|
|
15 |
175-8507
|
VR, WASHER, LOCK, SPLIT [KU,04512-50080] (Tennant Industria |
9 |
|
|
16 |
175-8496
|
VR, WASHER, FLAT [KU] (Tennant Industrial) |
1 |
|
|
17 |
375-2377
|
Pipe joint |
1 |
|
|
18 |
375-2378
|
Plain washer (OBSOLETE) |
1 |
|
|
19 |
N/A
|
Not available |
1 |
(spring) |
|
20 |
375-2379
|
Valve seat (OBSOLETE) |
1 |
|
|
21 |
175-8418
|
VR, BALL, RELIEF, OIL [KU] (Tennant Industrial) |
1 |
|
|
22 |
375-2380
|
Water return flange (OBSOLETE) |
1 |
|
|
23 |
375-2381
|
Gasket (OBSOLETE) |
1 |
|
|
24 |
175-8376
|
VR, BOLT, HEX [KU] (Tennant Industrial) |
3 |
|
|
25 |
575-8545
|
VR, COVER [KU] (Tennant Industrial) |
1 |
|
|
26 |
375-2382
|
Hour meter unit gasket (OBSOLETE) |
1 |
|
|
24 |
175-8351
|
VR, STUD [KU] (Tennant Industrial) |
4 |
|
|
28 |
175-8352
|
VR, NUT, HEX [KU] (Tennant Industrial) |
4 |
|
|
29 |
175-8353
|
VR, WASHER, LOCK, SPLIT [KU] (Tennant Industrial) |
4 |
|
|
