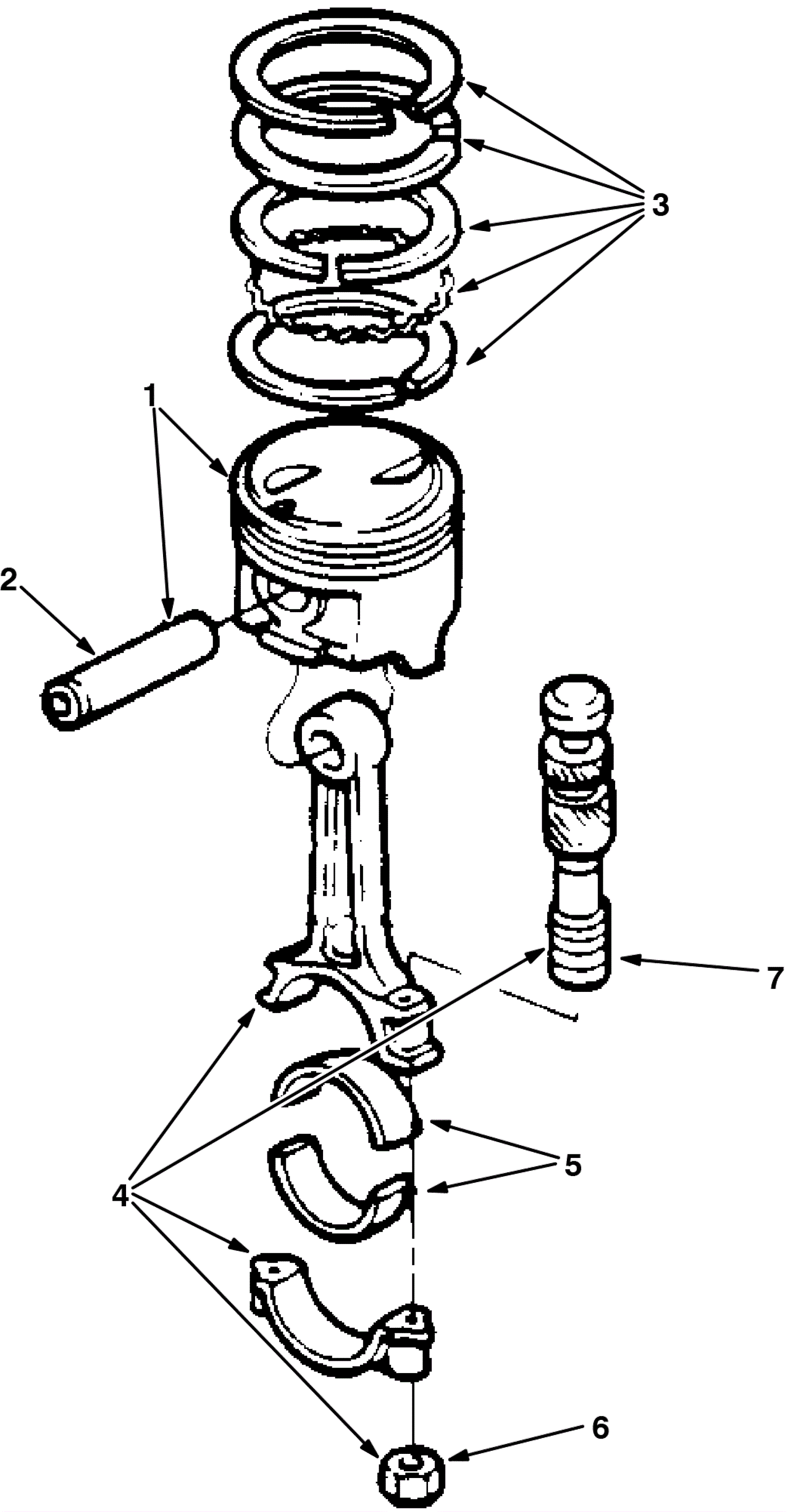

| # | Part | Description |
Req | Notes | Availability |
|---|
1a |
375-2054
|
Piston assembly (red) (OBSOLETE) |
4 |
(includes 2) |
|
1b |
375-2055
|
Piston assembly (blue) (OBSOLETE) |
4 |
(includes 2) |
|
1c |
375-2056
|
Piston assembly (OBSOLETE) |
4 |
(includes 2) |
|
1d |
375-2057
|
Piston assembly (OBSOLETE) |
4 |
(includes 2) |
|
1e |
375-2058
|
Piston assembly (OBSOLETE) |
4 |
(includes 2) |
|
1f |
675-1327
|
VR, PISTON (Tennant Industrial) |
4 |
(includes 2) |
|
2 |
375-2059
|
Pin (OBSOLETE) |
4 |
|
|
3a |
375-2060
|
Ring set (OBSOLETE) |
2 |
(standard) |
|
3b |
375-2061
|
Ring set (OBSOLETE) |
2 |
|
|
3c |
675-0955
|
VR, RING SET, PISTON, .030 (Tennant Industrial) |
2 |
|
|
3d |
375-2062
|
Ring set (OBSOLETE) |
2 |
|
|
4 |
375-2063
|
Connecting rod assembly (OBSOLETE) |
4 |
(includes 5a-7) |
|
5a |
575-2158
|
VR, BEARING (Tennant Industrial) |
8 |
(standard) |
|
5b |
375-2064
|
Connecting rod bearing (OBSOLETE) |
8 |
(standard) |
|
5c |
375-2065
|
Connecting rod bearing (OBSOLETE) |
8 |
|
|
5d |
375-2066
|
Connecting rod bearing |
8 |
|
|
5e |
375-2067
|
Connecting rod bearing |
8 |
|
|
5f |
375-2068
|
Connecting rod bearing (bearing) |
8 |
|
|
5g |
375-2069
|
Connecting rod bearing (bearing) |
8 |
|
|
6 |
375-2070
|
Nut M9 (OBSOLETE) |
8 |
|
|
7 |
375-2071
|
Bolt M9 x 55mm (OBSOLETE) |
8 |
|
|
