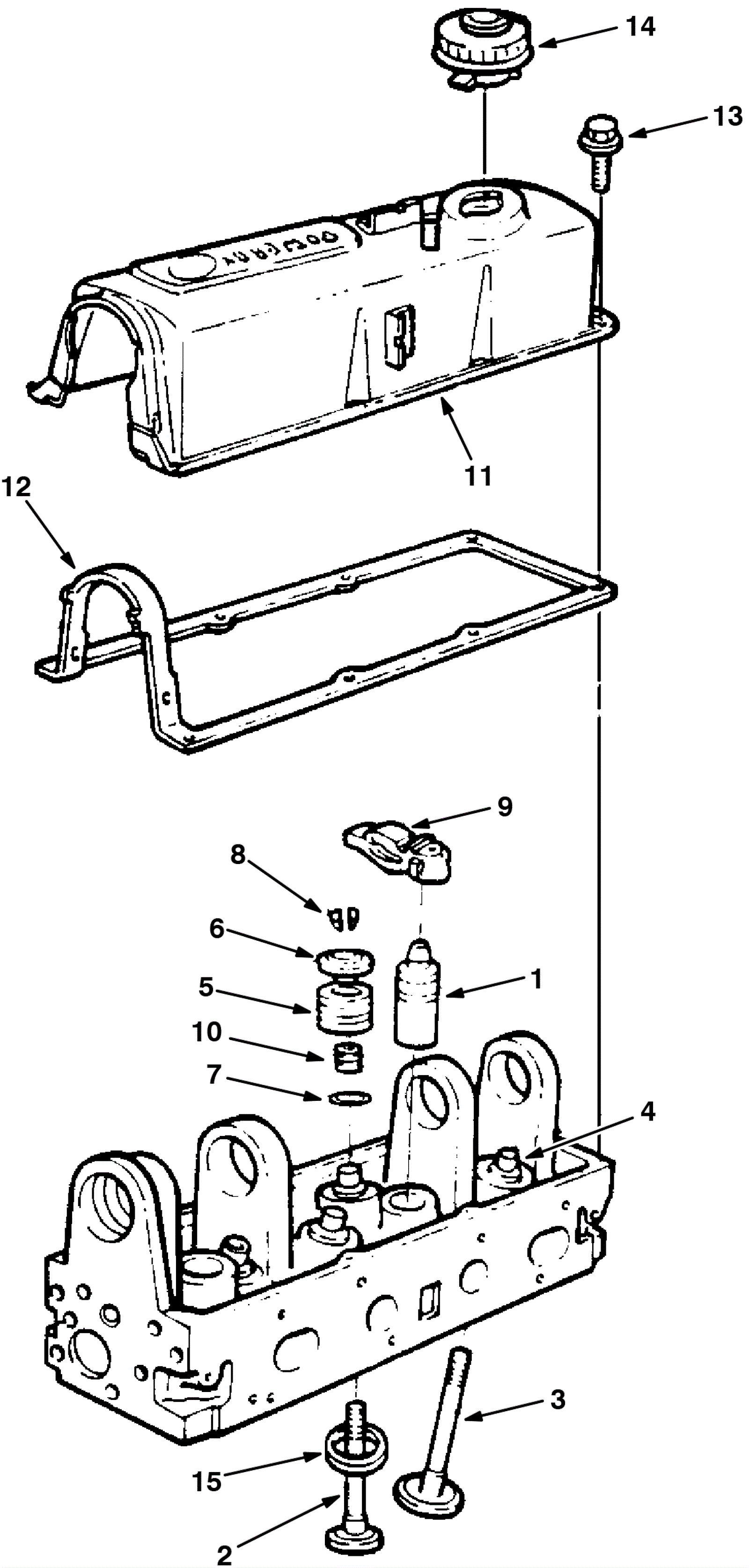

| # | Part | Description |
Req | Notes | Availability |
|---|
1a |
575-7845
|
VR, TAP ASSY, VALVE [FD] (Tennant Industrial) |
8 |
(standard) |
|
1b |
375-2037
|
Tappet valve (OBSOLETE) |
8 |
|
|
2a |
575-6974
|
VR, VALVE, EXHAUST, STD (Tennant Industrial) |
1 |
(standard) |
|
2b |
375-2038
|
Exhaust valve (OBSOLETE) |
1 |
|
|
2c |
375-2039
|
Exhaust valve (OBSOLETE) |
1 |
|
|
3a |
375-2040
|
Intake valve (OBSOLETE) |
4 |
(standard) |
|
3b |
375-2041
|
Intake valve (OBSOLETE) |
4 |
|
|
3c |
375-2042
|
Intake valve (OBSOLETE) |
4 |
|
|
4 |
375-2043
|
Bushing (OBSOLETE) |
1 |
|
|
5 |
575-6940
|
VR, SPRING, VALVE [FD] (Tennant Industrial) |
8 |
|
|
6 |
375-2044
|
Retainer (OBSOLETE) |
8 |
|
|
7 |
375-2045
|
Shim (OBSOLETE) |
1 |
|
|
8 |
475-8827
|
VR, LOCK, VALVE 16 (Tennant Industrial) |
16 |
|
|
9 |
375-2046
|
Arm (OBSOLETE) |
8 |
|
|
10a |
375-2047
|
Intake seal (OBSOLETE) |
1 |
(standard) |
|
10b |
575-2287
|
VR, SEAL, EXHAUST (Tennant Industrial) |
1 |
(standard) |
|
10c |
375-2048
|
Intake seal (OBSOLETE) |
1 |
|
|
10d |
375-2049
|
Intake seal (OBSOLETE) |
1 |
|
|
10e |
575-2664
|
VR, SEAL (Tennant Industrial) |
1 |
|
|
10f |
375-2050
|
Intake seal (OBSOLETE) |
1 |
|
|
11 |
375-2051
|
Cover (OBSOLETE) |
1 |
|
|
12 |
675-1235
|
VR, GASKET (Tennant Industrial) |
1 |
|
|
13 |
375-2052
|
Screw M6 x 16mm with washer (OBSOLETE) |
8 |
|
|
14 |
275-6395
|
Breather cap (Tennant Industrial) |
1 |
|
|
15 |
375-2053
|
Seat (OBSOLETE) |
1 |
|
|
