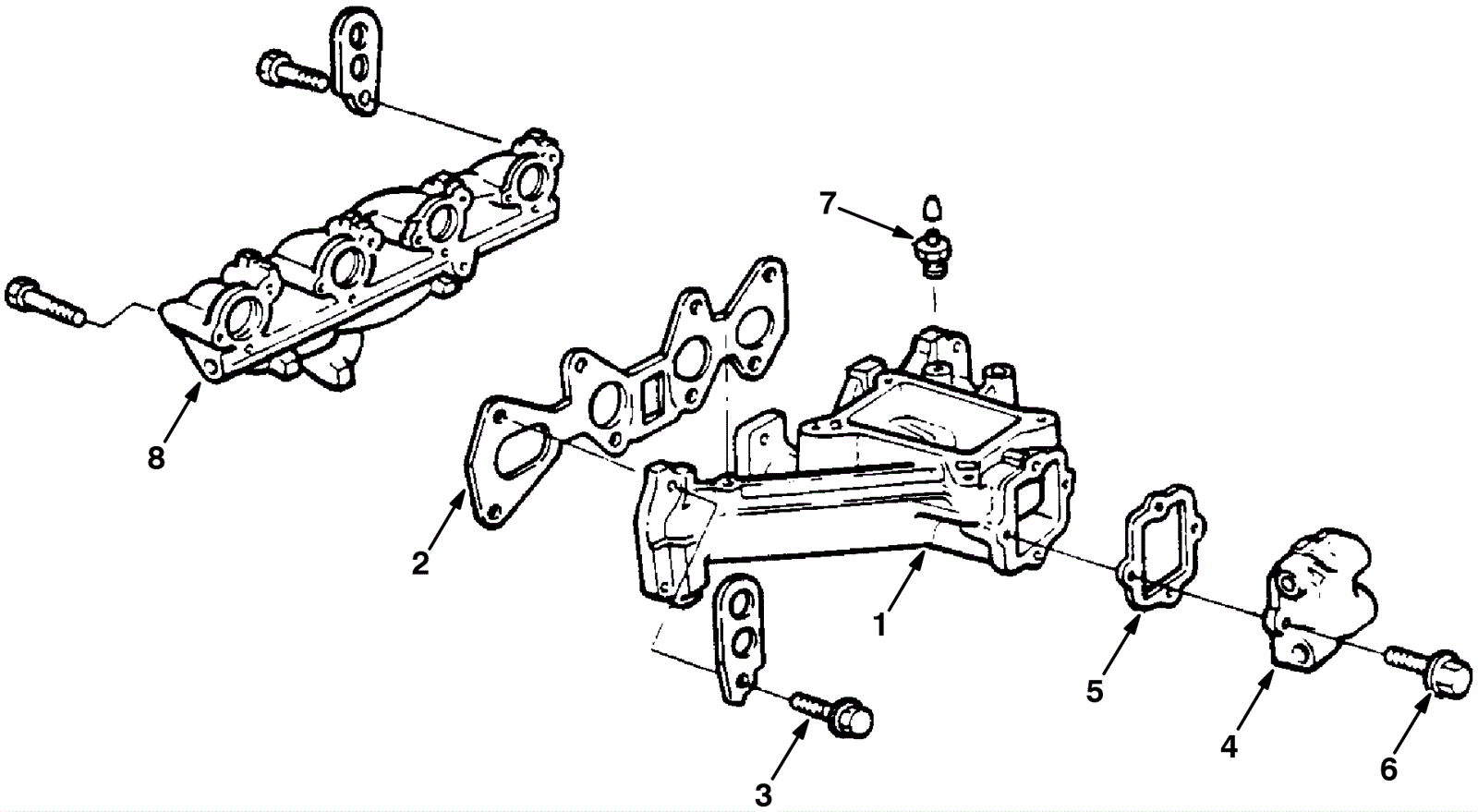

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
375-2031
|
Intake manifold (OBSOLETE) |
1 |
|
|
2a |
575-4187
|
VR, GASKET, MANIFOLD, INTAKE (Tennant Industrial) |
1 |
|
|
2b |
575-4794
|
VR, GASKET, MANIFOLD, INTAKE (Tennant Industrial) |
1 |
|
|
3a |
375-2032
|
Stud (OBSOLETE) |
1 |
|
|
3b |
999-0248
|
Bolt M8-1.25 x 30mm hex head full thread plain finish |
7 |
|
|
4 |
375-2033
|
Intake manifold cover (OBSOLETE) |
1 |
|
|
5 |
575-0393
|
VR, GASKET, MANIFOLD, INTAKE (Tennant Industrial) |
1 |
|
|
6 |
999-1312
|
Screw M6-1 x 20mm hex head stainless steel |
4 |
|
|
7 |
675-0900
|
VR, FITTING, VACUUM (Tennant Industrial) |
1 |
|
|
8 |
675-6143
|
VR, MANIFOLD, EXHAUST [FD] (Tennant Industrial) |
1 |
|
|
