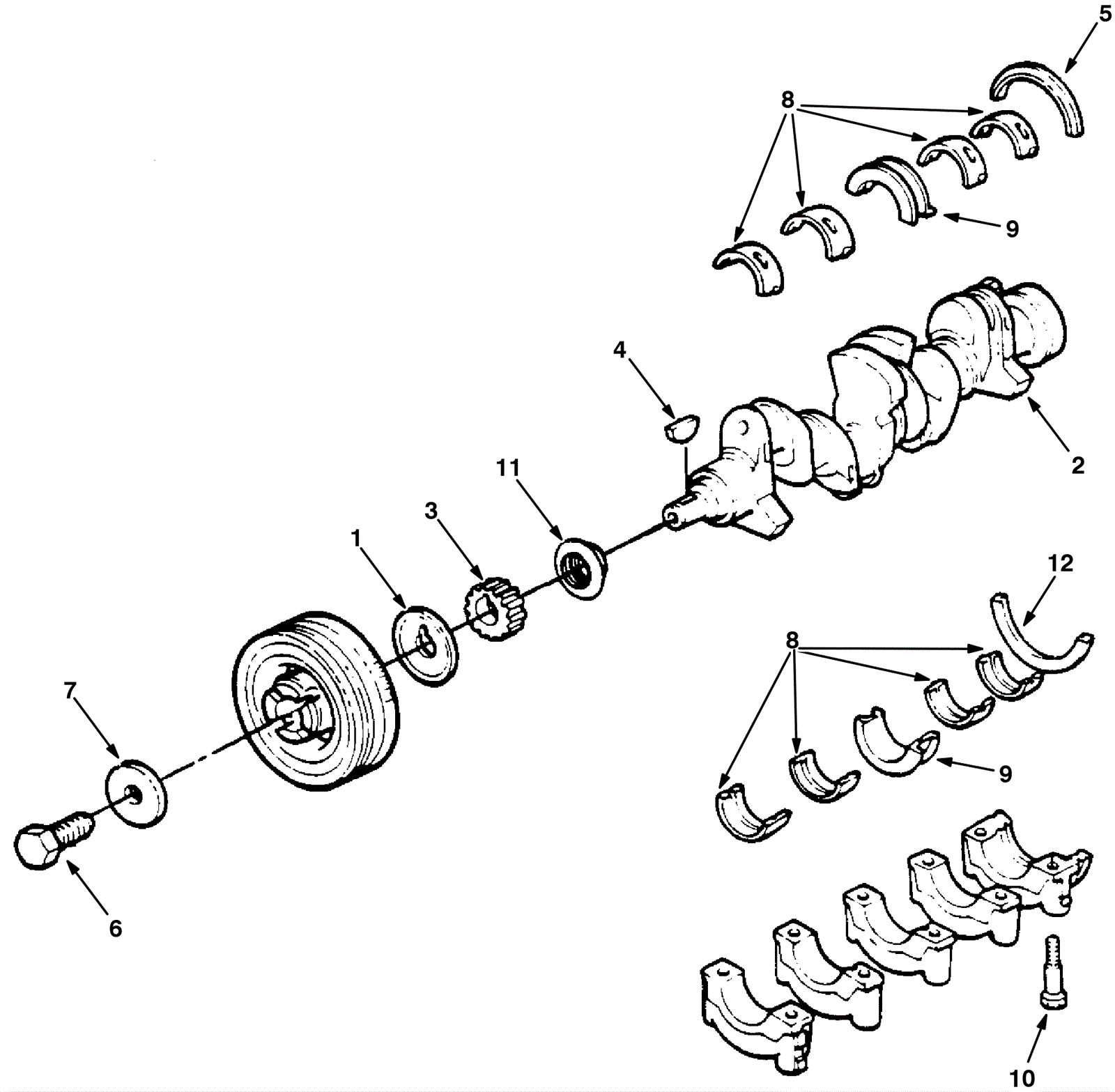

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
575-2459
|
VR, GUIDE, BELT, TIMING (Tennant Industrial) |
1 |
|
|
2 |
375-2012
|
Crankshaft (OBSOLETE) |
1 |
|
|
3 |
675-0119
|
VR, SPROCKET, CSHFT [FD] (Tennant Industrial) |
1 |
|
|
4 |
575-0627
|
VR, KEY, WOODRUFF [FD] (Tennant Industrial) |
1 |
|
|
5 |
675-0191
|
VR, SEAL, REAR, CSHFT (Tennant Industrial) |
1 |
|
|
6 |
575-3729
|
VR, BOLT, M14 X 1.50 X 40MM, CSHFT (Tennant Industrial) |
1 |
|
|
7 |
575-4306
|
VR, WASHER, FLAT (Tennant Industrial) |
1 |
|
|
8a |
375-2013
|
Main bearing (red) (OBSOLETE) |
8 |
|
|
8b |
575-2561
|
VR, BEARING, MAIN, CSHFT [2FD] (Tennant Industrial) |
8 |
|
|
8c |
375-2014
|
Main bearing (OBSOLETE) |
8 |
|
|
8d |
375-2015
|
Main bearing (OBSOLETE) |
8 |
|
|
8e |
375-2016
|
Main bearing (OBSOLETE) |
8 |
|
|
8f |
375-2017
|
Main bearing (OBSOLETE) |
8 |
|
|
9a |
575-7837
|
VR, BEARING, TRHUST, CSHFT (Tennant Industrial) |
1 |
|
|
9b |
375-2018
|
Upper thrust bearing (blue) (OBSOLETE) |
1 |
|
|
9c |
375-2019
|
Upper thrust bearing (OBSOLETE) |
1 |
|
|
9d |
375-2020
|
Upper thrust bearing (OBSOLETE) |
1 |
|
|
9e |
375-2021
|
Upper thrust bearing (OBSOLETE) |
1 |
|
|
9f |
375-2022
|
Upper thrust bearing (OBSOLETE) |
1 |
|
|
9g |
375-2023
|
Lower thrust bearing (red) (OBSOLETE) |
1 |
|
|
9h |
375-2024
|
Lower thrust bearing (blue) (OBSOLETE) |
1 |
|
|
9i |
375-2025
|
Lower thrust bearing (OBSOLETE) |
1 |
|
|
9j |
375-2026
|
Lower thrust bearing (OBSOLETE) |
1 |
|
|
9k |
375-2027
|
Lower thrust bearing (OBSOLETE) |
1 |
|
|
9l |
375-2028
|
Lower thrust bearing (OBSOLETE) |
1 |
|
|
10a |
375-2029
|
Washer (OBSOLETE) |
1 |
|
|
10b |
575-1082
|
VR, BOLT, M12, MAIN CAP [FD] (Tennant Industrial) |
9 |
|
|
10c |
375-2030
|
Stud (OBSOLETE) |
1 |
|
|
11 |
575-6366
|
VR, SEAL, OIL, CSHFT, FRONT [FD] (Tennant Industrial) |
1 |
|
|
