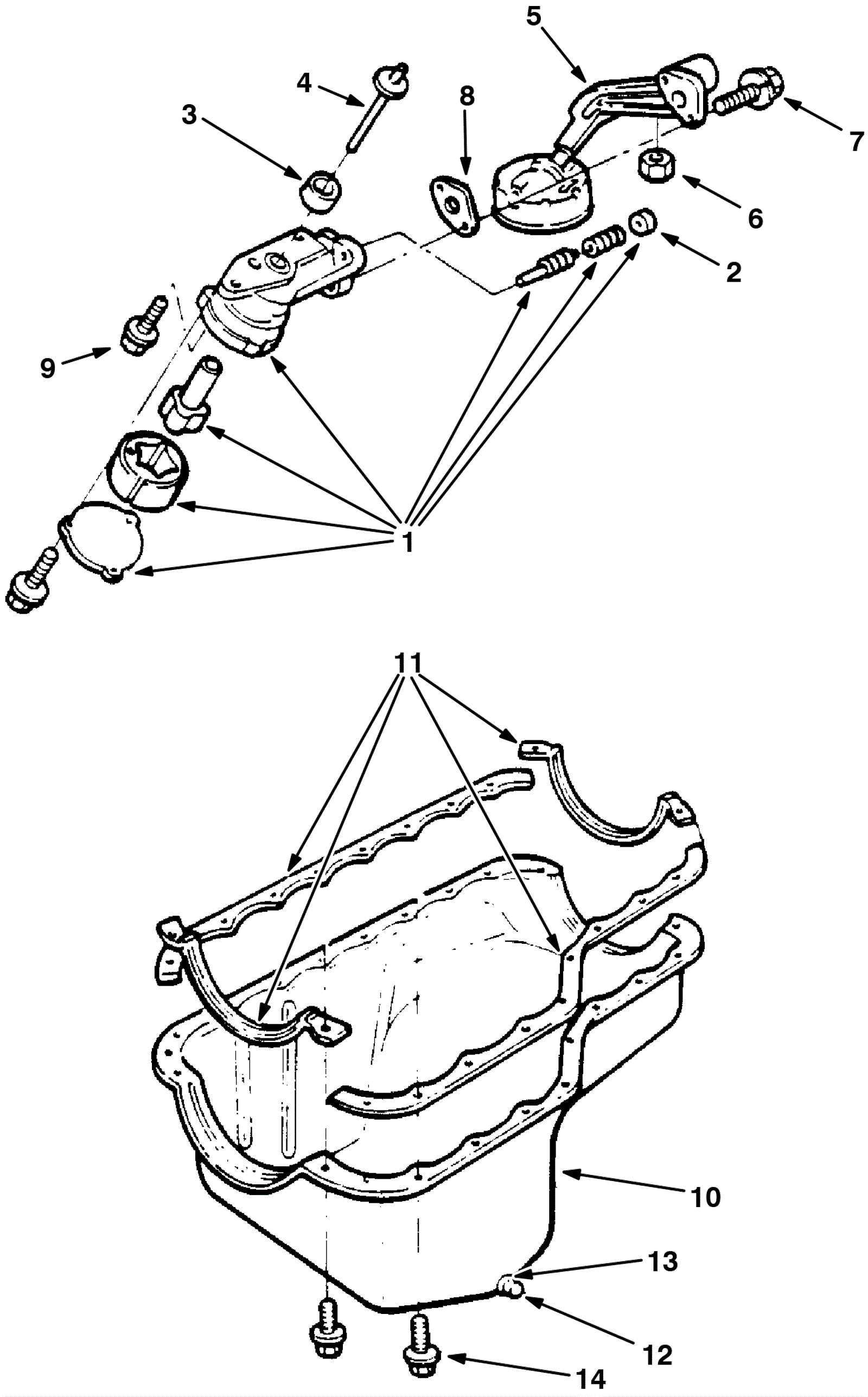

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
375-2001
|
Pump (OBSOLETE) |
1 |
(includes 2) |
|
2 |
375-2002
|
Pump relief valve plug (OBSOLETE) |
1 |
|
|
3 |
375-2003
|
Dowel (OBSOLETE) |
1 |
|
|
4 |
375-2004
|
Pump shaft (OBSOLETE) |
1 |
|
|
5 |
375-2005
|
Pump screen. tube and cover (OBSOLETE) |
1 |
|
|
6 |
475-9691
|
VR, NUT (Tennant Industrial) |
1 |
|
|
7 |
375-2006
|
Screw M8 x 30mm with washer (OBSOLETE) |
2 |
|
|
8 |
375-1974
|
Gasket (OBSOLETE) |
1 |
|
|
9 |
375-2007
|
Screw M8 x 25mm with washer |
2 |
|
|
10a |
375-2008
|
Oil pan assembly |
1 |
(includes 10b-10c) |
|
10b |
375-2009
|
Flange reinforcement (OBSOLETE) |
1 |
|
|
10c |
375-2010
|
Flange reinforcement (OBSOLETE) |
1 |
|
|
11 |
675-0130
|
VR, GASKET, PAN, OIL (Tennant Industrial) |
1 |
|
|
12 |
375-7443
|
Oil drain plug (Tennant Industrial) |
1 |
(includes 13) |
|
13 |
275-4509
|
VR, GASKET, PLUG, DRAIN, OIL, PAN [FD] (Tennant Industrial) |
1 |
|
|
14 |
375-2011
|
Bolt M6 x 27.5mm |
1 |
|
|
