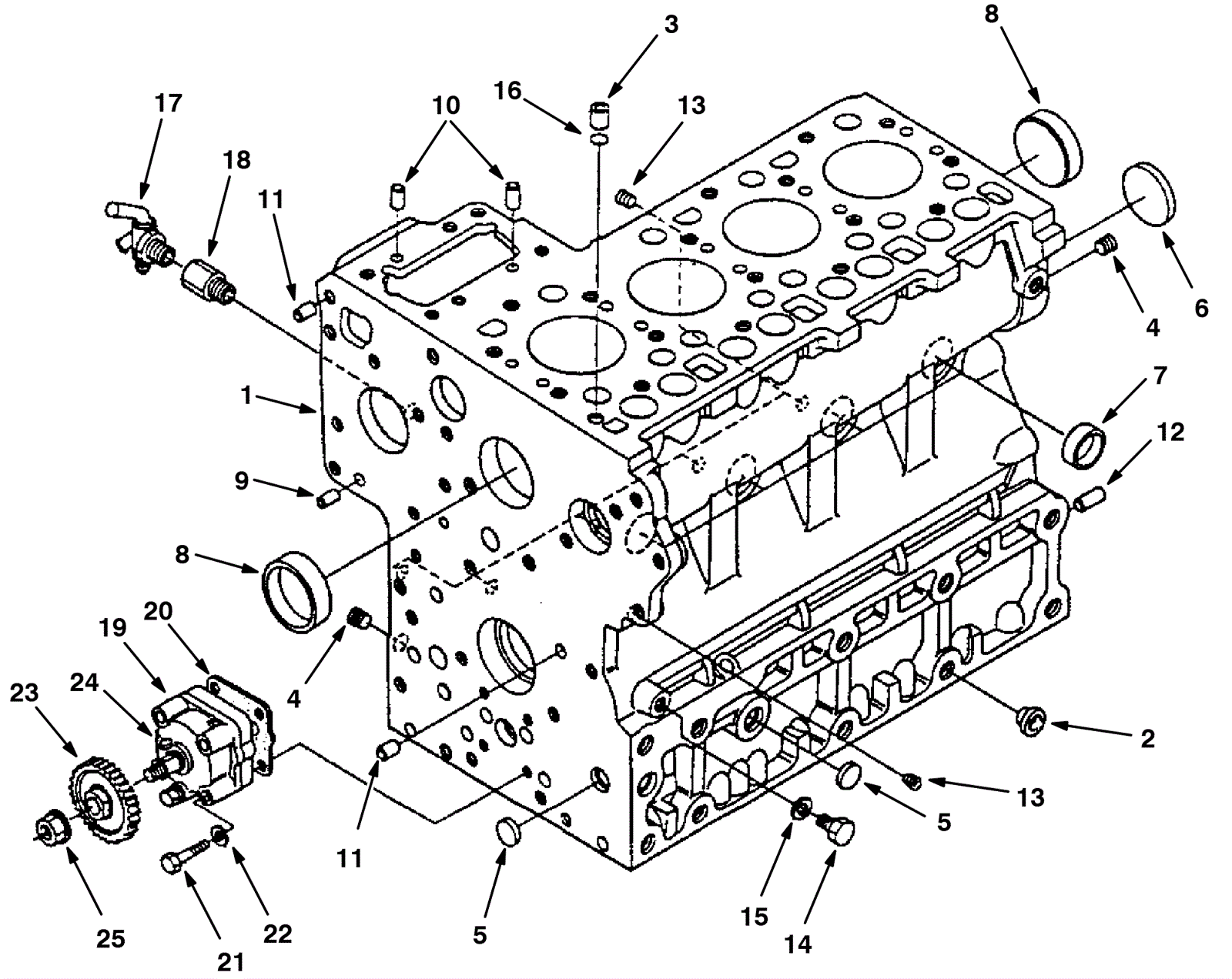

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
N/A
|
Not available |
1 |
(includes 2-3) (crankcase) |
|
2 |
375-1979
|
Blind plug (OBSOLETE) |
2 |
|
|
3 |
575-0622
|
VR, TUBE, PIN [KU] (Tennant Industrial) |
1 |
|
|
4 |
475-8474
|
VR, FITTING, PIPE, PLUG [KU] (Tennant Industrial) |
2 |
|
|
5 |
475-8509
|
VR, PLUG, EXPANSION (Tennant Industrial) |
3 |
|
|
6 |
475-8508
|
VR, PLUG, EXPANSION (Tennant Industrial) |
1 |
|
|
7 |
375-1980
|
Sealing cap (OBSOLETE) |
6 |
|
|
8 |
575-1564
|
VR, CAP, SEALING (Tennant Industrial) |
2 |
|
|
9 |
475-8611
|
VR, PIN, STRAIT (Tennant Industrial) |
2 |
|
|
10 |
375-1981
|
Straight pin (OBSOLETE) |
2 |
|
|
11 |
375-1982
|
Straight pin (OBSOLETE) |
2 |
|
|
12 |
375-1983
|
Straight pin (OBSOLETE) |
1 |
|
|
13 |
175-8282
|
VR, FITTING, PIPE, PLUG [KU] (Tennant Industrial) |
6 |
|
|
14 |
275-3508
|
VR, FITTING, PLUG [KU] (Tennant Industrial) |
1 |
|
|
15 |
175-8303
|
VR, GASKET, SEALING [KU] (Tennant Industrial) |
1 |
|
|
16 |
175-8291
|
VR, SEAL, ORG [KU] (Tennant Industrial) |
1 |
|
|
17 |
575-4452
|
FITTING, DRAINCOCK [KUBO] (Tennant Industrial) |
1 |
|
|
18 |
575-6436
|
VR, CONNECTOR (Tennant Industrial) |
1 |
|
|
19 |
675-3320
|
VR, PUMP, OIL (Tennant Industrial) |
1 |
|
|
20 |
475-9950
|
VR, GASKET, PUMP (Tennant Industrial) |
1 |
|
|
21 |
375-1984
|
Bolt (OBSOLETE) |
4 |
|
|
22 |
175-8353
|
VR, WASHER, LOCK, SPLIT [KU] (Tennant Industrial) |
4 |
|
|
23 |
575-9412
|
VR, GEAR, PUMP, OIL (Tennant Industrial) |
1 |
|
|
24 |
375-1985
|
Feather key (OBSOLETE) |
1 |
|
|
25 |
375-1986
|
Flange nut |
1 |
|
|
