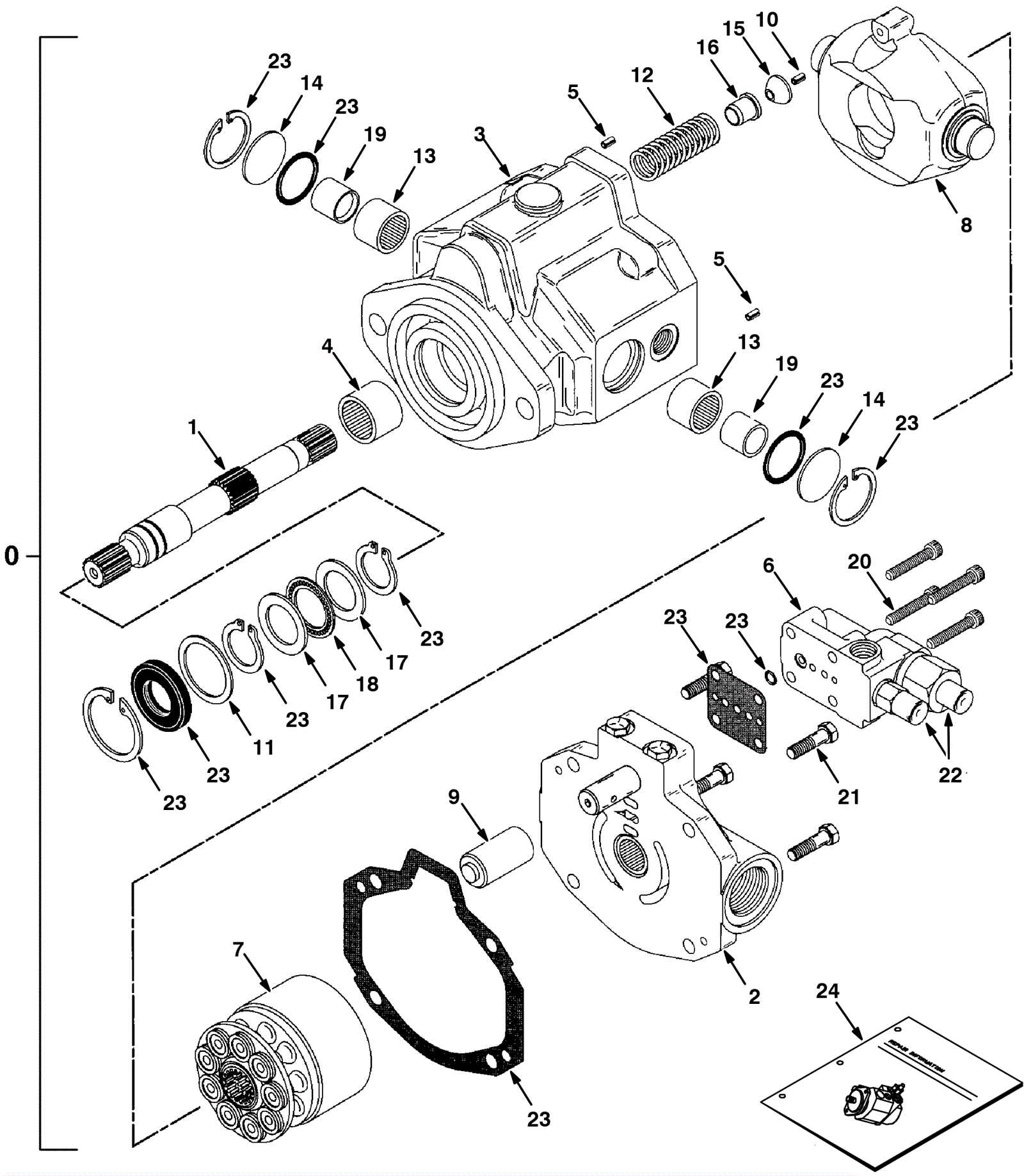

| # | Part | Description |
Req | Notes | Availability |
|---|
0 |
675-8816
|
PUMP, HYD, PISTON, 2.77 2500, CW (Tennant Industrial) |
1 |
(includes 1-23) |
|
1 |
675-5376
|
SHAFT (Tennant Industrial) |
1 |
|
|
2 |
675-7870
|
PLATE, BACK (Tennant Industrial) |
1 |
|
|
3 |
675-5033
|
HOUSING (Tennant Industrial) |
1 |
(includes 4-5) |
|
4 |
575-5061
|
VR, BEARING, PUMP [EN] (Tennant Industrial) |
1 |
|
|
5 |
N/A
|
Not available |
2 |
(Roll pin) |
|
6 |
675-6792
|
COMPENSATOR (Tennant Industrial) |
1 |
|
|
7 |
675-7611
|
ROTATING KIT (Tennant Industrial) |
1 |
|
|
8 |
675-4712
|
CAM (Tennant Industrial) |
1 |
|
|
9 |
575-6233
|
PISTON, CNTRL (Tennant Industrial) |
1 |
|
|
10 |
475-8540
|
PIN, ROLL (Tennant Industrial) |
1 |
|
|
11 |
575-0122
|
VR, WASHER [EN] (Tennant Industrial) |
1 |
|
|
12 |
475-9629
|
SPRING (Tennant Industrial) |
1 |
|
|
13 |
575-4764
|
VR, BEARING (Tennant Industrial) |
2 |
|
|
14 |
575-6612
|
VR, COVER (Tennant Industrial) |
2 |
|
|
15 |
575-3392
|
BUTTON, PIVOT (Tennant Industrial) |
1 |
|
|
16 |
375-2359
|
Spring collar (OBSOLETE) |
1 |
|
|
17 |
575-1836
|
VR, RACE, BRG [EN] (Tennant Industrial) |
2 |
|
|
18 |
575-0465
|
VR, BEARING [EN] (Tennant Industrial) |
1 |
|
|
19 |
575-4610
|
VR, BEARING, RACE (Tennant Industrial) |
2 |
|
|
20 |
475-9689
|
SCREW (Tennant Industrial) |
4 |
|
|
21 |
375-2360
|
Cap screw (OBSOLETE) |
4 |
|
|
22 |
475-9690
|
VR, COVER (Tennant Industrial) |
2 |
|
|
23 |
575-5915
|
VR, SEAL KIT, HYD, PU (OBSOLETE) |
1 |
|
|
24 |
375-2361
|
Repair info (OBSOLETE) |
1 |
|
|
