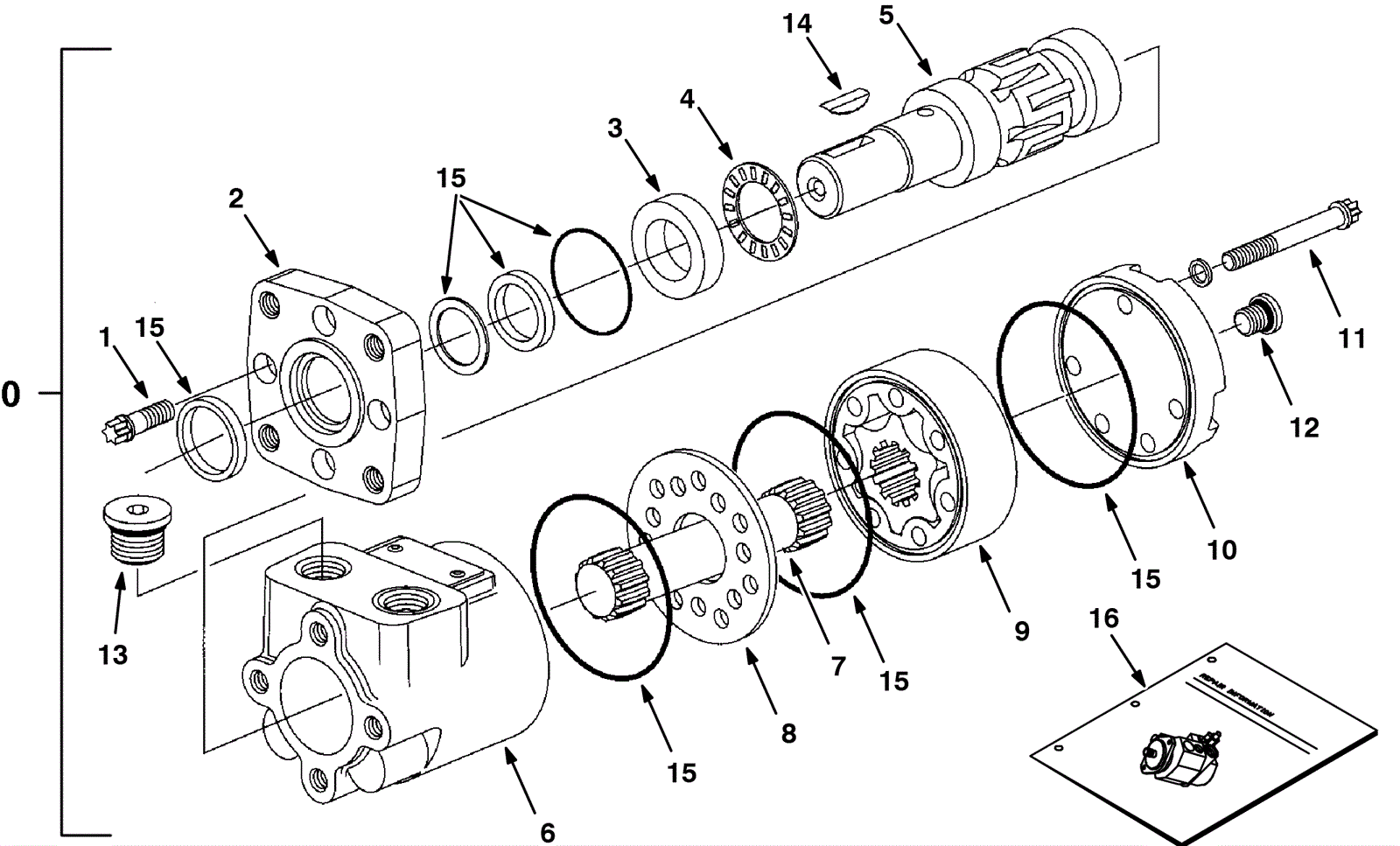

| # | Part | Description |
Req | Notes | Availability |
|---|
0 |
675-7103
|
MOTOR, HYD, GEAR, INT 07.3 BI-DIR 1500 (Tennant Industrial) |
1 |
(includes 1-15) |
|
1 |
175-8249
|
Screw |
4 |
|
|
2 |
175-8243
|
VR, FLANGE, MOTOR, HYD [EN] (Tennant Industrial) |
1 |
|
|
3 |
175-8246
|
Thrust race |
1 |
|
|
4 |
175-8245
|
Bearing thrust |
1 |
|
|
5 |
675-1927
|
VR, SHAFT, OUTPUT, MOTOR, HYD [EN] (Tennant Industrial) |
1 |
|
|
6 |
175-8250
|
VR, HOUSING, MOTOR, HYD [EN] (Tennant Industrial) |
1 |
|
|
7 |
575-8442
|
VR, DRIVE, MOTOR, HYD [EN] (Tennant Industrial) |
1 |
|
|
8 |
175-8251
|
Spacer plate (Tennant Industrial) |
1 |
|
|
9 |
375-2357
|
Gerotor (OBSOLETE) |
1 |
|
|
10 |
275-4064
|
VR, END CAP, MOTOR, HYD [EN] (Tennant Industrial) |
1 |
|
|
11 |
475-9048
|
VR, SCREW, CAP, MOTOR, HYD [EN] (Tennant Industrial) |
5 |
|
|
12 |
175-8232
|
O - Ring plug |
1 |
|
|
13 |
275-4065
|
FITTING, HYD, PLUG, OM20 (Tennant Industrial) |
2 |
|
|
14 |
175-6746
|
Woodruff key |
1 |
|
|
15 |
275-4067
|
VR, SEAL KIT, MOTOR [CL] (Tennant Industrial) |
1 |
|
|
16 |
175-8254
|
VR, INSTR, MOTOR, HYD, REPAIR [EN] (Tennant Industrial) |
1 |
|
|
