| # | Part | Description |
Req | Notes | Availability |
|---|
0 |

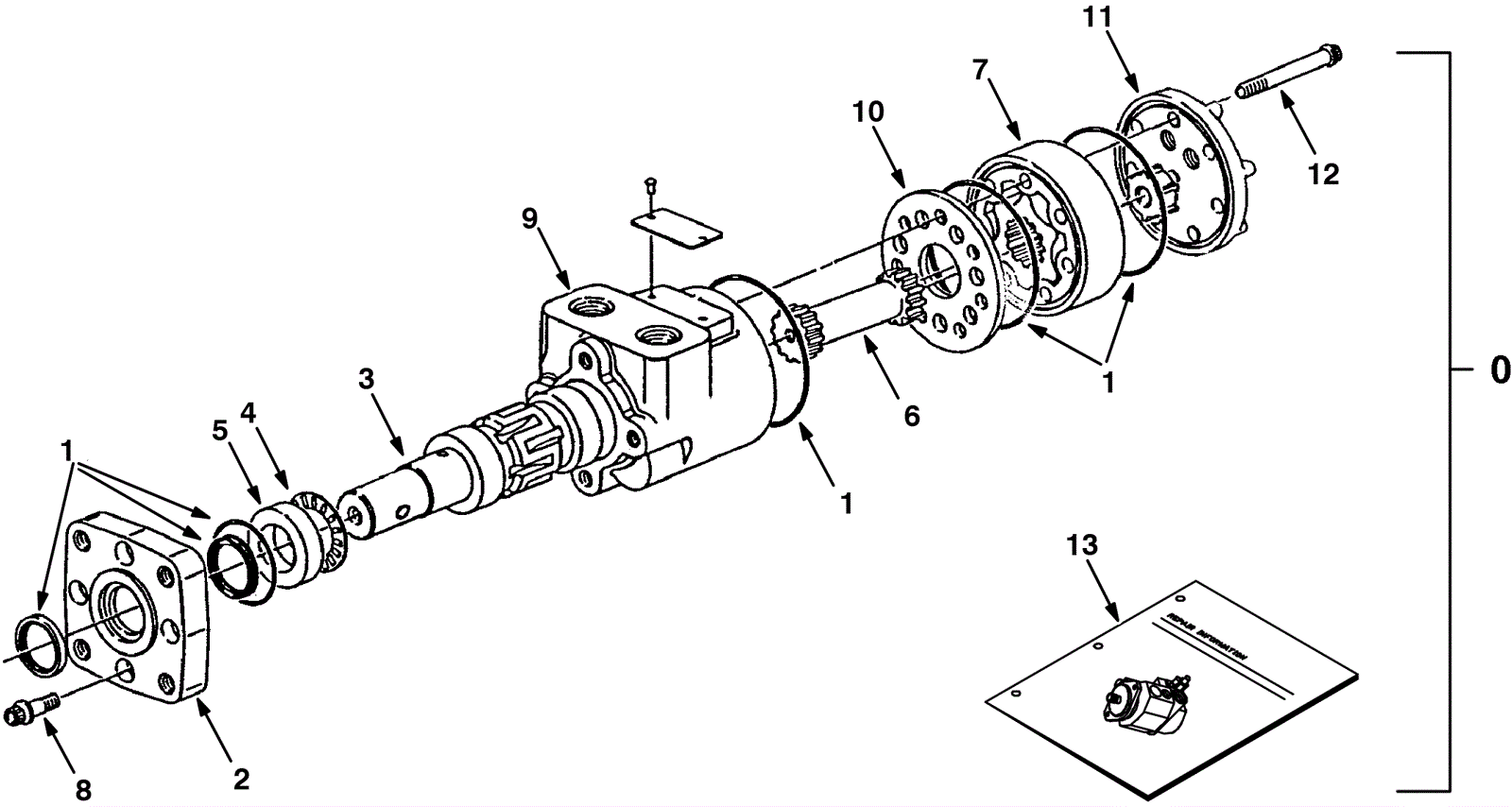

275-6134
|
Hydraulic motor kit (TENNANT INDUSTRIAL) |
1 |
(includes 1-12) |
|
1 |
275-4067
|
VR, SEAL KIT, MOTOR [CL] (Tennant Industrial) |
1 |
|
|
2 |
175-8243
|
VR, FLANGE, MOTOR, HYD [EN] (Tennant Industrial) |
1 |
|
|
3 |
175-8244
|
VR, SHAFT, OUTPUT, MOTOR, HYD [EN] (Tennant Industrial) |
1 |
|
|
4 |
175-8245
|
Bearing thrust |
1 |
|
|
5 |
175-8246
|
Thrust race |
1 |
|
|
6 |
375-6149
|
Drive (OBSOLETE) |
1 |
|
|
7 |
375-6150
|
Gerotor set (OBSOLETE) |
1 |
|
|
8 |
175-8249
|
Screw |
4 |
|
|
9 |
175-8250
|
VR, HOUSING, MOTOR, HYD [EN] (Tennant Industrial) |
1 |
|
|
10 |
175-8251
|
Spacer plate (Tennant Industrial) |
1 |
|
|
11 |
175-8252
|
End cap (Tennant Industrial) (OBSOLETE) |
1 |
|
|
12 |
375-6151
|
Cap screw (OBSOLETE) |
5 |
|
|
13 |
175-8254
|
VR, INSTR, MOTOR, HYD, REPAIR [EN] (Tennant Industrial) |
1 |
|
|
