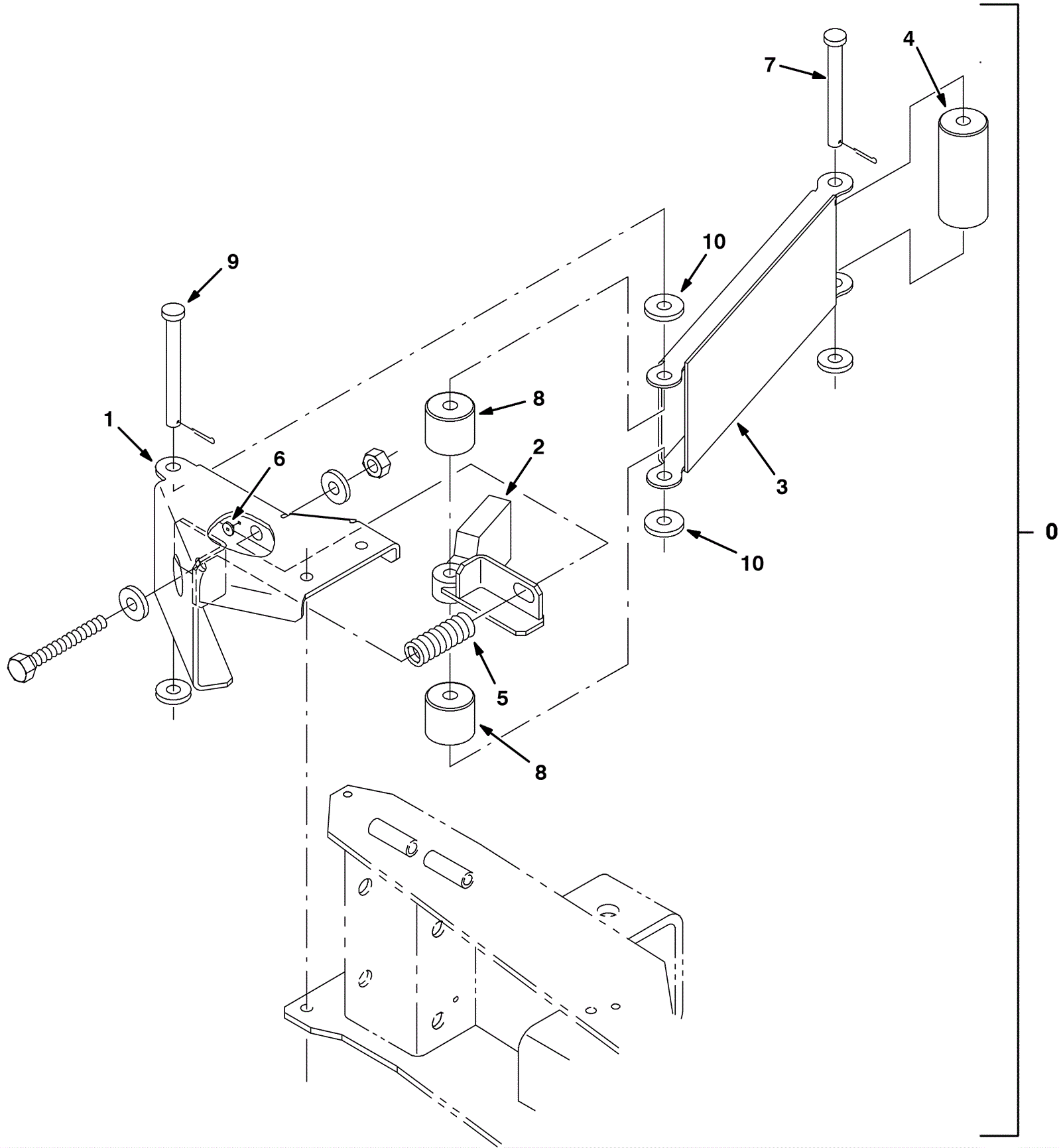

Side Squeegee Kit Assembly

#PartDescription ReqNotesAvailability
0 675-4686 GUARD KIT, SQGE, SIDE, CI, [8410] (OBSOLETE) 1 (includes 1-10)
1 675-2873 BRACKET WLDT, MTG, ARM, GUARD, SQGE (Tennant Industrial) 1
2 675-0618 ARM WLDT, GUARD, SQGE, SIDE [8410] (Tennant Industrial) 1
3 575-9226 ARM WLDT, GUARD, SQGE, SIDE (Tennant Industrial) 1
4 575-4126 ROLLER, 1.75D 0.52B 4.13L [UHMWPE] (Tennant Industrial) 1
5 175-2199 Compression spring 1
6 275-2015 BUMPER, RBR, 0.50D 0.19TH KNURLED STUD (Tennant Industrial) 1
7 275-3981 PIN, CLEVIS, 0.50D X 5.00L (Tennant Industrial) 1
8 175-0742 TUBE, 0.52ID 1.75OD 01.6L, STL (Tennant Industrial) 2
9 175-0720 Clevis pin 1/2D x 5 1/2 1
10 175-3354 Thrust washer 2
