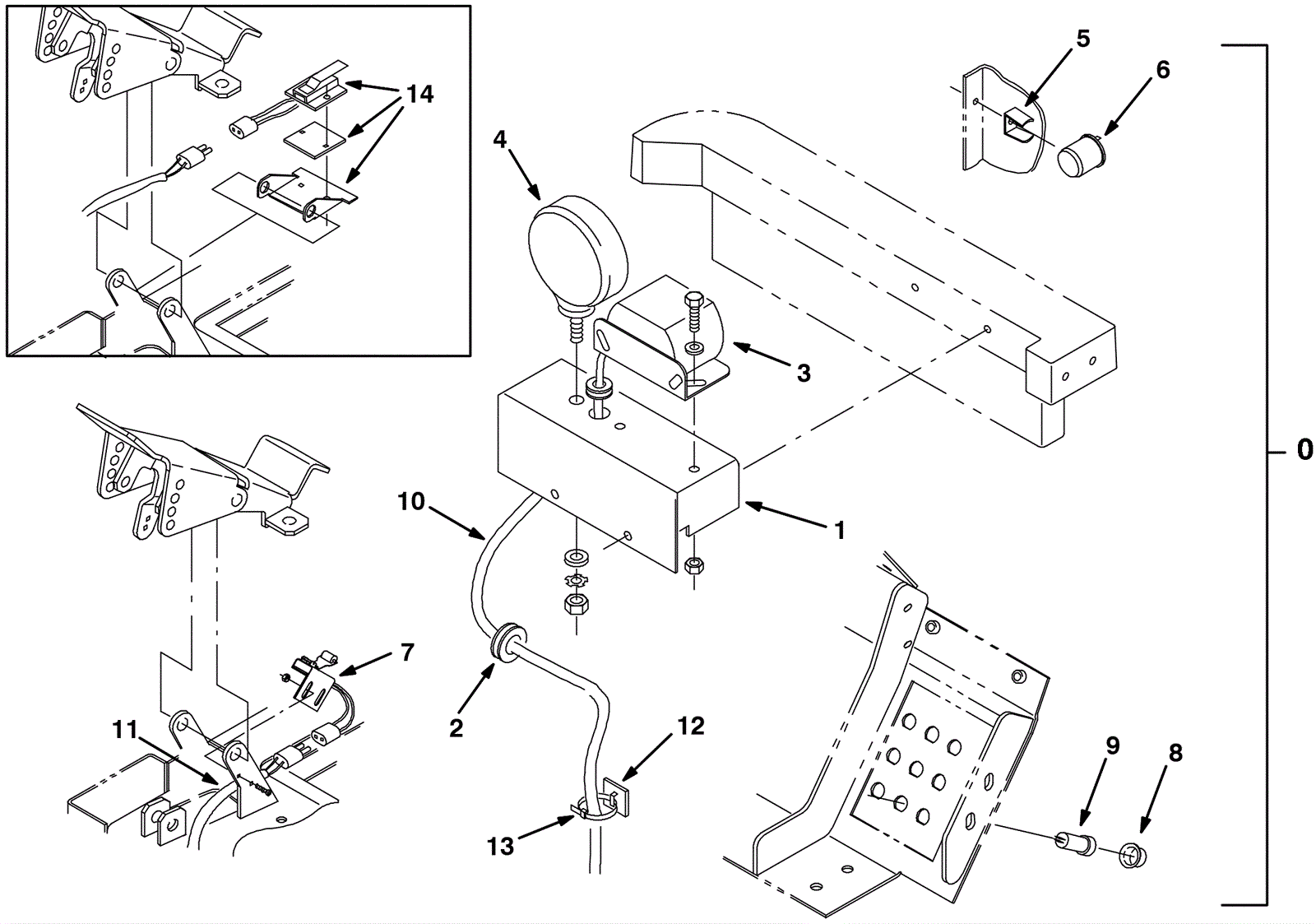

| # | Part | Description |
Req | Notes | Availability |
|---|
0 |
675-7333
|
ALARM KIT, BACKUP / A/V, CI [8400] (Tennant Industrial) |
1 |
(includes 1-14) |
|
1 |
575-6892
|
BRACKET, ALARM, BACKUP (Tennant Industrial) |
1 |
|
|
2 |
275-3903
|
GROMMET, RBR, 0.69ID, F/1.0H, .25 MATL (Tennant Industrial) |
1 |
|
|
3 |
275-2542
|
Backup alarm assembly |
1 |
|
|
4a |
275-3156
|
LIGHT, SPOT, 12VDC, 21CP, RWK 44025A (Tennant Industrial) |
1 |
(includes 4b) |
|
4b |
275-3157
|
LAMP, 12VDC, 0.9A, 15CP [#1004] (Tennant Industrial) |
1 |
|
|
5 |
475-8018
|
CLIP, GRIP, FINGER, 1.19-1.35D, NK PL (Tennant Industrial) |
1 |
|
|
6 |
175-8121
|
FLASHER, 12VDC [HD552PS83] (Tennant Industrial) |
1 |
|
|
7 |
275-0140
|
Roller snap switch 15A no |
1 |
|
|
8 |
375-4772
|
Circuit breaker boot (OBSOLETE) |
1 |
|
|
9 |
475-3338
|
CIRCUITBREAKER KIT, 15A, REPLMT |
1 |
|
|
10 |
575-8547
|
HARNESS, ALARM, BACKUP [355L] (Tennant Industrial) |
1 |
|
|
11 |
375-2348
|
Backup alarm harness (OBSOLETE) |
1 |
|
|
12 |
175-3233
|
Cable tie mount |
2 |
|
|
13 |
175-2162
|
Nylon wire tie |
5 |
|
|
14 |
575-9456
|
SWITCH KIT, BACKUP, REPLMT [8400] (Tennant Industrial) |
1 |
|
|
