| # | Part | Description |
Req | Notes | Availability |
|---|
0 |
675-6006
|

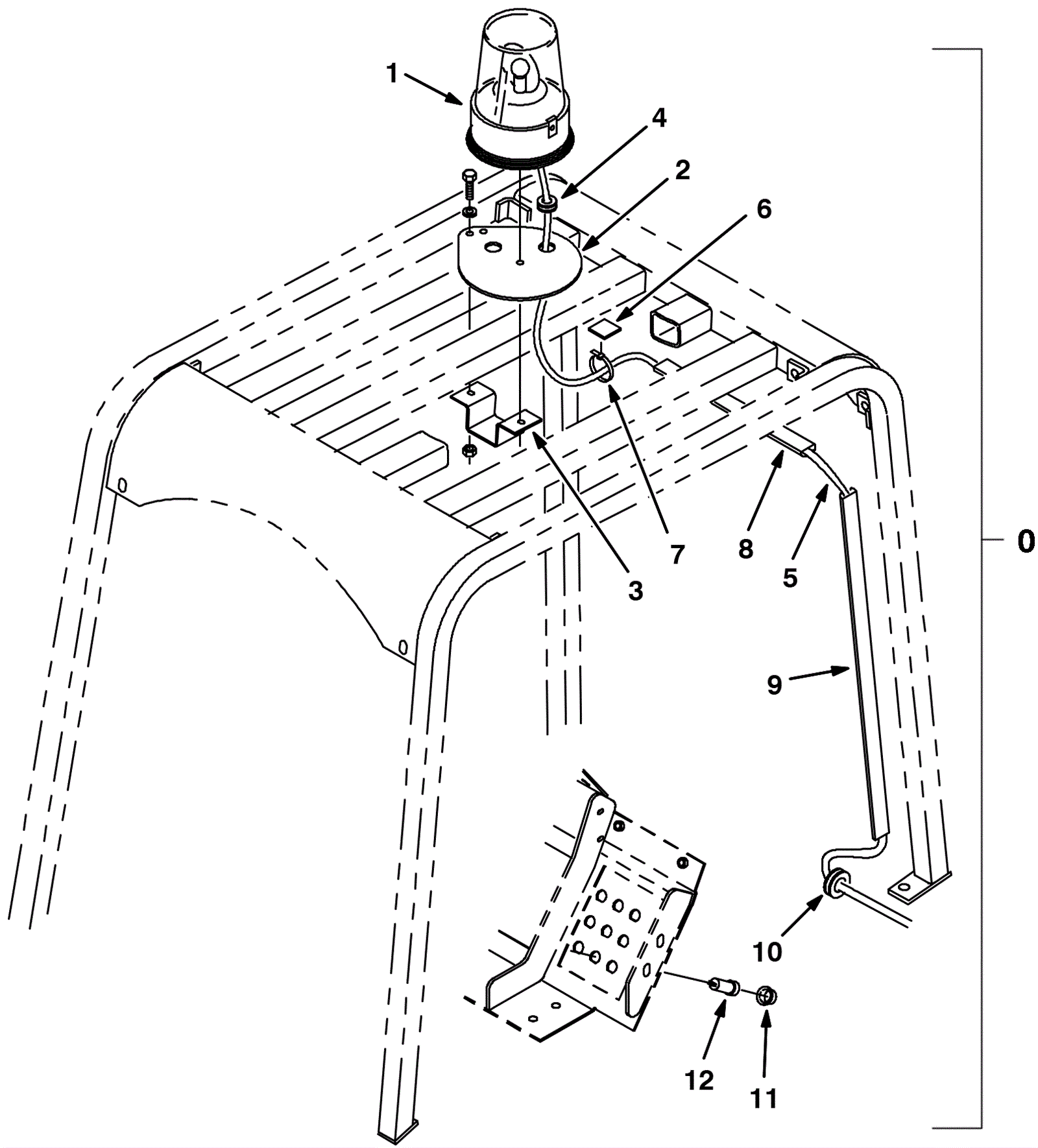

LIGHT KIT, FLSH, OHG, CI [8400/10] (Tennant Industrial) |
1 |
(includes 1a-12) |
|
1a |
675-5979
|
LIGHT, FLSH, 12VDC, AMB, RWK (Tennant Industrial) |
1 |
(includes 1b-1c) |
|
1b |
175-5418
|
Revolving light amber lens |
1 |
|
|
1c |
275-0587
|
Lamp 12VDC 2.1A |
1 |
|
|
2 |
175-9646
|
Light mounting plate |
1 |
|
|
3 |
175-9647
|
Overhead guard light mounting bracket |
1 |
|
|
4 |
175-5419
|
Grommet 5/8 |
1 |
|
|
5 |
575-6599
|
HARNESS, LIGHT, REVL, OHG [355L] (Tennant Industrial) |
1 |
|
|
6 |
175-3233
|
Cable tie mount |
5 |
|
|
7 |
175-2162
|
Nylon wire tie |
8 |
|
|
8 |
175-3261
|
PVC duct |
2 |
|
|
9a |
275-3163
|
Vinyl duct (OBSOLETE) |
1 |
|
|
9b |
175-3261
|
PVC duct |
1 |
|
|
10 |
275-3903
|
GROMMET, RBR, 0.69ID, F/1.0H, .25 MATL (Tennant Industrial) |
1 |
|
|
11 |
375-4772
|
Circuit breaker boot (OBSOLETE) |
1 |
|
|
12 |
475-3338
|
CIRCUITBREAKER KIT, 15A, REPLMT |
1 |
|
|
N/S |
175-5422
|
Revolving light red lens |
1 |
|
|
N/S |
175-5423
|
Revolving light blue lens |
1 |
|
|
