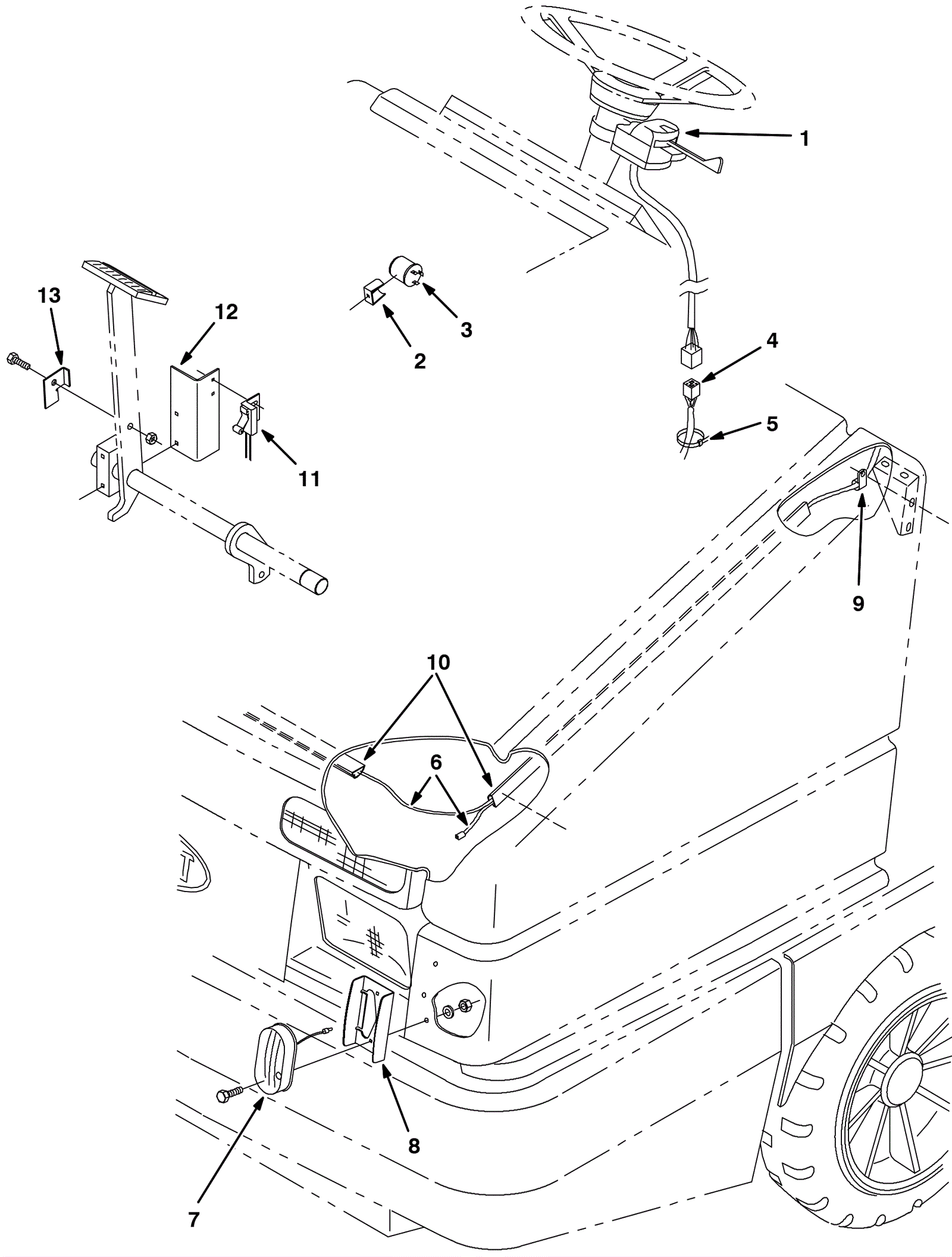

| # | Part | Description |
Req | Notes | Availability |
|---|
0 |
375-2343
|
Light signal kit (OBSOLETE) |
1 |
(includes 1a-13) |
|
1a |
275-3140
|
SWITCH, TURN SIGNAL, RWK 60750 (Tennant Industrial) |
1 |
(includes 1b) |
|
1b |
475-9683
|
LAMP, 12VDC, .12A, 1.0CP (Tennant Industrial) |
1 |
|
|
2 |
475-8018
|
CLIP, GRIP, FINGER, 1.19-1.35D, NK PL (Tennant Industrial) |
1 |
|
|
3 |
275-3141
|
FLASHER, HD, 12VDC 25A [10-57300] (Tennant Industrial) |
1 |
|
|
4 |
375-2344
|
Turn signal harness (OBSOLETE) |
1 |
|
|
5 |
175-2162
|
Nylon wire tie |
6 |
|
|
6 |
575-6419
|
HARNESS, TURN SIGNAL [355L] (Tennant Industrial) |
1 |
|
|
7a |
575-3047
|
LIGHT, MARKER, 12VDC, YEL, 4.0 X 2.0 (Tennant Industrial) |
2 |
(includes 7b) |
|
7b |
175-0526
|
LAMP, 12VDC, 0.3A, 02CP [#194] (Tennant Industrial) |
1 |
|
|
8 |
275-3143
|
BRACKET, LIGHT, SBDC (Tennant Industrial) |
2 |
|
|
9 |
175-2152
|
P clamp |
1 |
|
|
10 |
175-9650
|
Vinyl duct 25/64 x 3/4 x 1/4d 26l (OBSOLETE) |
2 |
|
|
11 |
275-6954
|
Snap switch |
1 |
|
|
12 |
375-2345
|
Switch bracket (OBSOLETE) |
1 |
|
|
13 |
575-7100
|
BRACKET, BRAKE (Tennant Industrial) |
1 |
|
|
