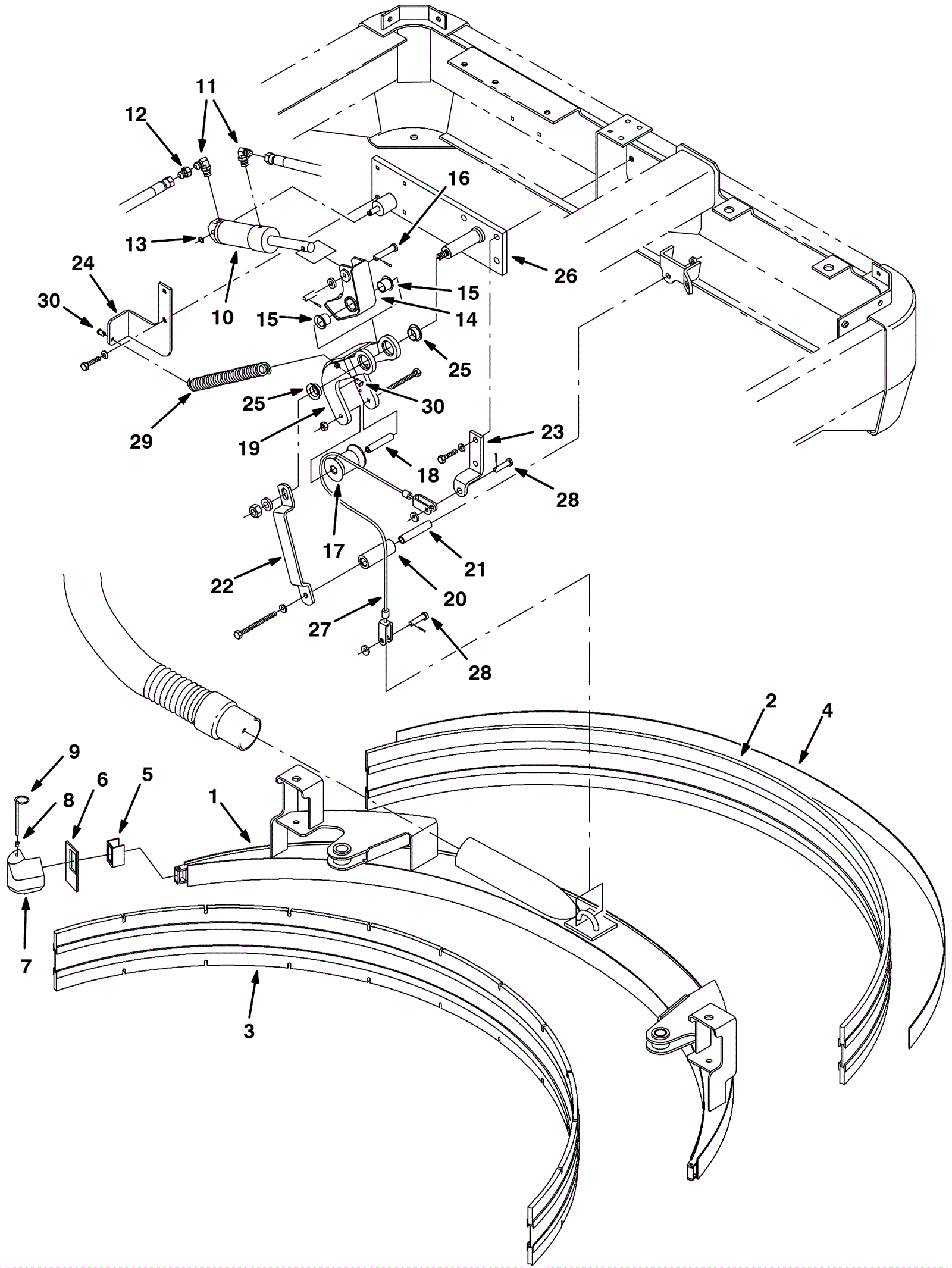

8400D Rear Squeegee Frame and Lift Assembly

#PartDescriptionPriceReqNotesAvailability
1 375-1949 Squeegee frame weldment (OBSOLETE) Call for price 1 usually ships 5-16 days
2 675-5130 BLADE ASSY, SQGE, REAR (Tennant Industrial) (OBSOLETE) $804.94 1 usually ships 5-16 days
3 675-4885 BLADE ASSY, SQGE, FRONT (Tennant Industrial) $1,219.10 1 usually ships 5-16 days
4 575-8633 STRIP, RETAINER (Tennant Industrial) $86.01 1 usually ships 5-16 days
5 275-2254 BRACKET, RETAINER (Tennant Industrial) (OBSOLETE) $28.89 2 usually ships 5-16 days
6 275-2253 GASKET, SQGE (Tennant Industrial) $17.87 2 usually ships 5-16 days
7a 575-5340 BUMPER KIT, SQGE (Tennant Industrial) $100.87 2 (includes 7b-8) usually ships 5-16 days
7b 575-4082 BUMPER, SQGE (Tennant Industrial) $53.44 1 usually ships 5-16 days
8 375-1615 Carbon steel retainer (Tennant Industrial) $8.52 2 usually ships 5-16 days
9 275-2256 PIN, HITCH, .187D X 2.81L, PL (Tennant Industrial) $22.71 2 usually ships 5-16 days
10 275-6034 Cylindrical head (Tennant Industrial) $582.83 1 usually ships 5-16 days
11 175-6919 Elbow fitting $13.97 2 usually ships 5-16 days
12 575-0987 FITTING, HYD, RST, JF04/JM04, .036 (Tennant Industrial) $18.37 1 usually ships 5-16 days
13 175-6752 RING, RETAINING, EXT, 0.38D, [SELFLOCK] (Tennant Industrial $3.51 1 usually ships 1-5 days
14 675-3437 BELLCRANK KIT, SQGE LIFT, UPPER, REPLMT (Tennant Industrial) $232.80 1 usually ships 5-16 days
15 275-5674 Flanged bushing (Tennant Industrial) $36.57 2 usually ships 5-16 days
16 175-2185 Clevis pin $3.19 1 ships same day
17 575-5074 ROLLER, FLNG, PYE, 1.50D 0.58B 2.57L (OBSOLETE) $46.26 1 usually ships 5-16 days
18 575-4169 TUBE, 0.38ID 0.50OD 02.6L, SS (Tennant Industrial) $54.78 1 usually ships 5-16 days
19 675-3207 BELLCRANK KIT, SQGE LIFT, LOWER, REPLMT (Tennant Industrial) $237.64 1 usually ships 5-16 days
20 575-5703 TUBE, PLSTC, 0.72ID 1.75OD 04.0L, BLK (OBSOLETEl) $38.08 2 usually ships 5-16 days
21 575-2580 TUBE, 0.50ID 0.62OD 04.1L, SS (Tennant Industrial) $23.88 2 usually ships 5-16 days
22 575-6475 BRACKET, GUSSET, REAR (Tennant Industrial) $94.19 1 usually ships 5-16 days
23 575-4035 BRACKET, CLIP, CABLE (Tennant Industrial) $53.11 1 usually ships 5-16 days
24 575-5168 BRACKET, SPRING (Tennant Industrial) $33.90 1 usually ships 5-16 days
25 175-0649 BUSHING, FLNG, 1.00B 1.13D 0.38L (Tennant Industrial) $27.22 2 usually ships 1-5 days
26 675-6224 PLATE WLDT, SQGE, LIFT (Tennant Industrial) $582.16 1 usually ships 5-16 days
27 575-9523 CABLE, STL .12D 18.0L .4CLEVIS /.4CLEVIS (Tennant Industrial $143.95 1 usually ships 5-16 days
28 275-2753 PIN, CLEVIS, 0.38D X 1.13L (Tennant Industrial) $6.01 2 usually ships 5-16 days
29 575-2645 SPRING, EXTN, 1.13OD 0.11WIR 06.5L (Tennant Industrial) $17.37 1 usually ships 5-16 days
30 275-0146 PIN, CLEVIS, 0.37D X 0.75L (Tennant Industrial) $5.01 2 usually ships 5-16 days
