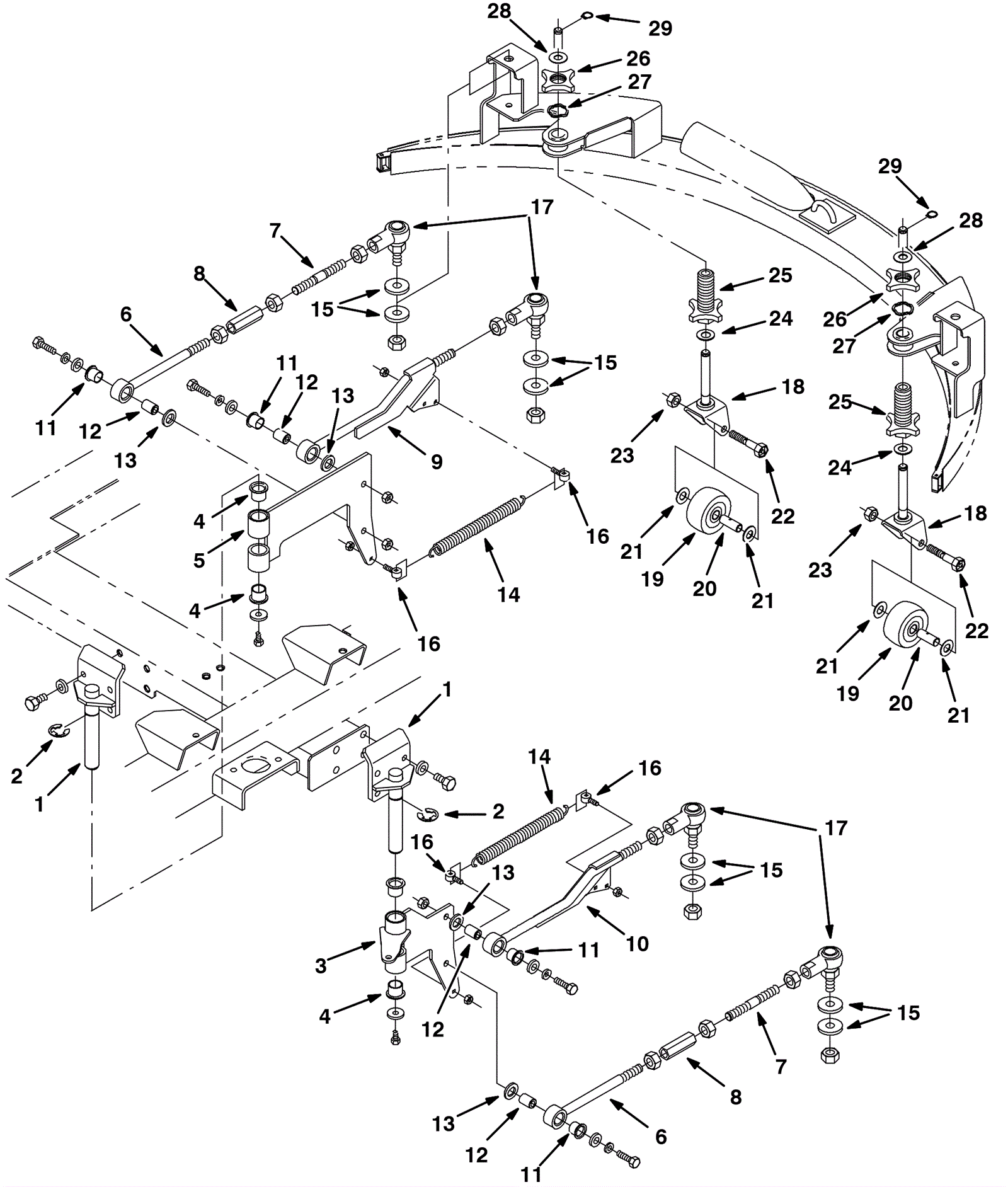

8400D Rear Squeegee Linkage Assembly

#PartDescriptionPriceReqNotesAvailability
1 675-1502 PIVOT WLDT, SQGE (Tennant Industrial) $303.94 2 usually ships 5-16 days
2 375-0702 Retainging ring (Tennant Industrial) $3.51 2 usually ships 1-5 days
3 675-4398 PIVOT KIT, SQGE, REPLMT [8410L] (Tennant Industrial) $538.24 1 usually ships 5-16 days
4 275-7828 Flanged bushing (Tennant Industrial) $52.94 4 usually ships 5-16 days
5 675-4398 PIVOT KIT, SQGE, REPLMT [8410L] (Tennant Industrial) $538.24 1 usually ships 5-16 days
6 675-3262 ARM (Tennant Industrial) $471.78 2 usually ships 5-16 days
7 575-8477 BAR, RND, STL, 0.62D (Tennant Industrial) $160.49 2 usually ships 5-16 days
8 675-4393 BAR, HEX, STL 0.88, 02.8L .62-18/.62-18 (Tennant Industrial) $644.29 2 usually ships 5-16 days
9 675-6194 ARM (Tennant Industrial) $1,216.76 1 usually ships 5-16 days
10 675-3331 ARM (Tennant Industrial) $481.63 1 usually ships 5-16 days
11 275-6956 Flange bearing $18.26 4 usually ships 5-16 days
12 275-6957 Tube $31.79 4 usually ships 5-16 days
13 275-7611 Thrust washer $9.68 4 usually ships 1-5 days
14 275-9475 SPRING, EXTN, 0.88OD 0.14WIR 09.0L (Tennant Industrial) $72.65 2 usually ships 1-5 days
15 475-9487 WASHER, FLAT, 0.62, STD (Tennant Industrial) $7.52 8 usually ships 5-16 days
16 575-1703 BOLT, EYE, M8 X 1.25 X 030MM, 08.00 EYE (Tennant Industrial) $19.71 4 usually ships 5-16 days
17 275-8620 ROD-END, 0.62-18RH FEM 0.50-18STUD (Tennant Industrial) $120.74 4 usually ships 1-5 days
18a 275-9339 CASTER KIT, SQGE, REPLMT (Tennant Industrial) $393.12 2 (includes 18b-29) usually ships 5-16 days
18b 175-0783 PIVOT WLDT, CASTER, SQGE (Tennant Industrial) $152.81 1 usually ships 5-16 days
19 175-3481 WHEEL, 03.0D 1.38W 0.50B (Tennant Industrial) $122.24 1 usually ships 5-16 days
20 175-3483 SCREW, HEX, .50-13 X 2.75, G5 (Tennant Industrial) $12.36 1 usually ships 1-5 days
21 175-3347 Washer .61 thrust $4.84 2 ships same day
22 175-3483 SCREW, HEX, .50-13 X 2.75, G5 (Tennant Industrial) $12.36 1 usually ships 1-5 days
23 999-1208 Nut 1/2-13 nylon insert lock stainless steel $2.53 1 ships same day
24 175-0784 Thrust bearing $10.78 1 usually ships 5-16 days
25 175-0785 KNOB, STAR, 3.00D 4EAR 4.30L .59B (Tennant Industrial) $33.23 1 usually ships 5-16 days
26 175-0786 KNOB, STAR, 3.00D 4EAR 0.50L M30X3.5[PLS (Tennant Industria $22.04 1 usually ships 5-16 days
27 275-8350 WASHER, WAVY, 1.20B 1.54D .13 (Tennant Industrial) $6.01 1 usually ships 5-16 days
28 175-0787 WASHER, FLAT, 0.60B 1.31D .10, SS (Tennant Industrial) $11.02 1 usually ships 5-16 days
29 175-2472 Retaining ring $2.42 1 usually ships 5-16 days
