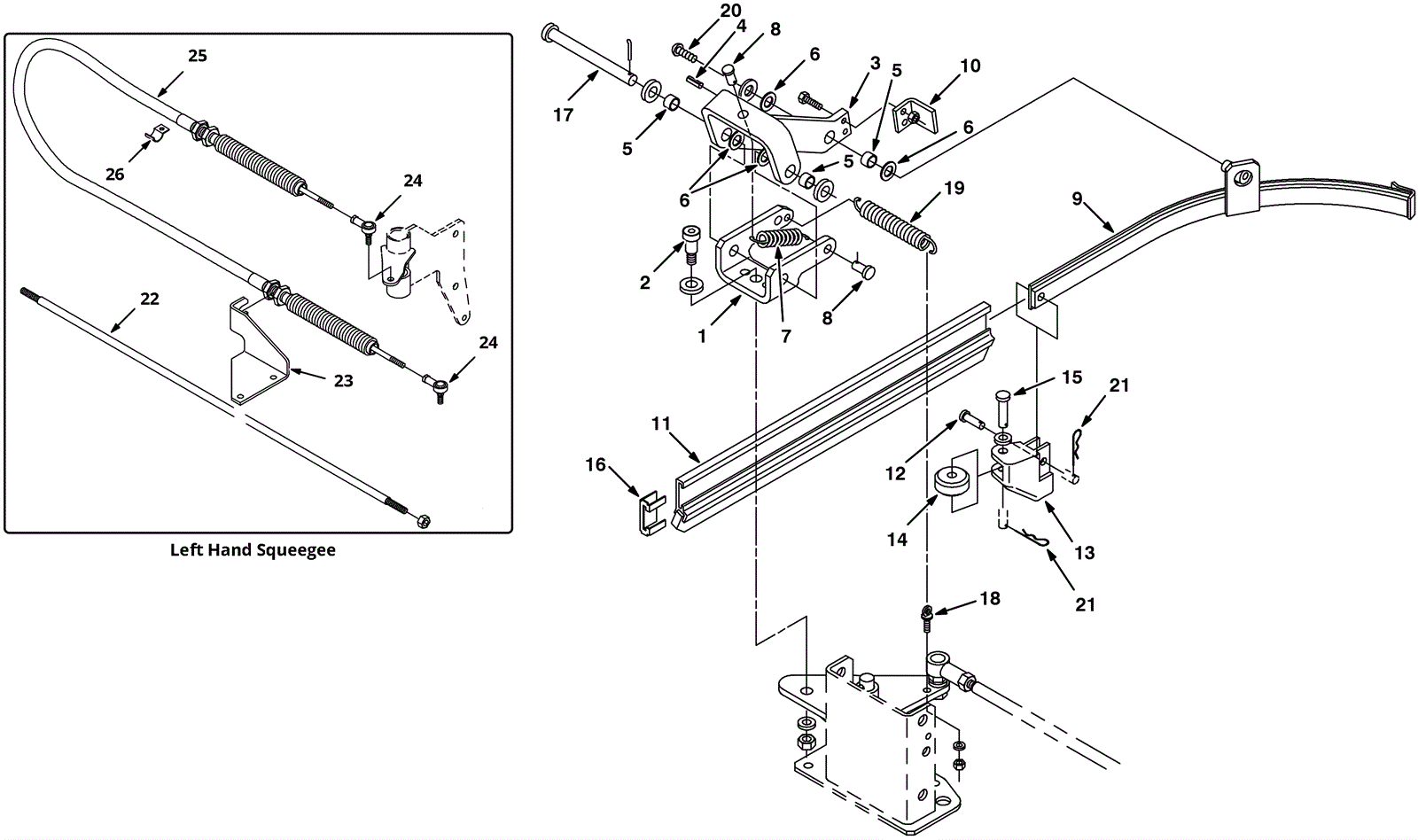

Side Squeegee Assembly

#PartDescription ReqNotesAvailability
1 675-2474 BRACKET, PIVOT (Tennant Industrial) 1
2 575-1010 BOLT, SHLD, .50D X 0.75, .38-16 (Tennant Industrial) 1
3a 675-5747 ARM, SQGE, RH (Tennant Industrial) 1
3b 675-3816 ARM, SQGE, LH (Tennant Industrial) 1
4 175-0768 PIN, ROLL, .250D X 0.75L, .250/.256 (Tennant Industrial) 1
5 175-3355 Sleeved bushing 3
6 175-3354 Thrust washer 4
7 175-0770 Extension spring 1
8 275-0146 PIN, CLEVIS, 0.37D X 0.75L (Tennant Industrial) 2
9a 675-3770 FRAME WLDT, SQGE, RH (Tennant Industrial) 1
11a 175-3498 BLADE ASSY, SQGE, SIDE, RH (Tennant Industrial) 1
11b 575-9674 BLADE ASSY, SQGE, SIDE, LH (Tennant Industrial) 1
12 175-3351 Clevis pin 1
13 575-6796 GUIDE, SQGE, SIDE (Tennant Industrial) 1
16 175-3357 Squeegee blade retainer 1
17 275-3981 PIN, CLEVIS, 0.50D X 5.00L (Tennant Industrial) 1
18 375-2307 Steel Bolt - 1.38 x 0.47 in 1
19 175-6921 Extension spring 1
20 275-2235 SCREW, BTN, M8 X 1.25 X 16, SS (Tennant Industrial) 1
21 175-7107 Cotter hair pin 2
22 675-0704 ROD, TIE, M10 X M10 35.8L, STL (Tennant Industrial) 1 (left hand squeegee)
23 575-6771 BRACKET, SPPT, CABLE (Tennant Industrial) 1 (left hand squeegee)
24 575-6077 ROD-END, 0.31-24RH FEM 0.31-24STUD (Tennant Industrial) 1 (left hand squeegee)
25 675-5175 CABLE, PUSH / PULL, 060.0L .31-24/.31-24 (Tennant Industrial 1 (left hand squeegee)
26 475-8079 CLAMP, CABLE, STL, 0.76D X 0.88W, 1HOLE (Tennant Industrial) 1 (left hand squeegee)
