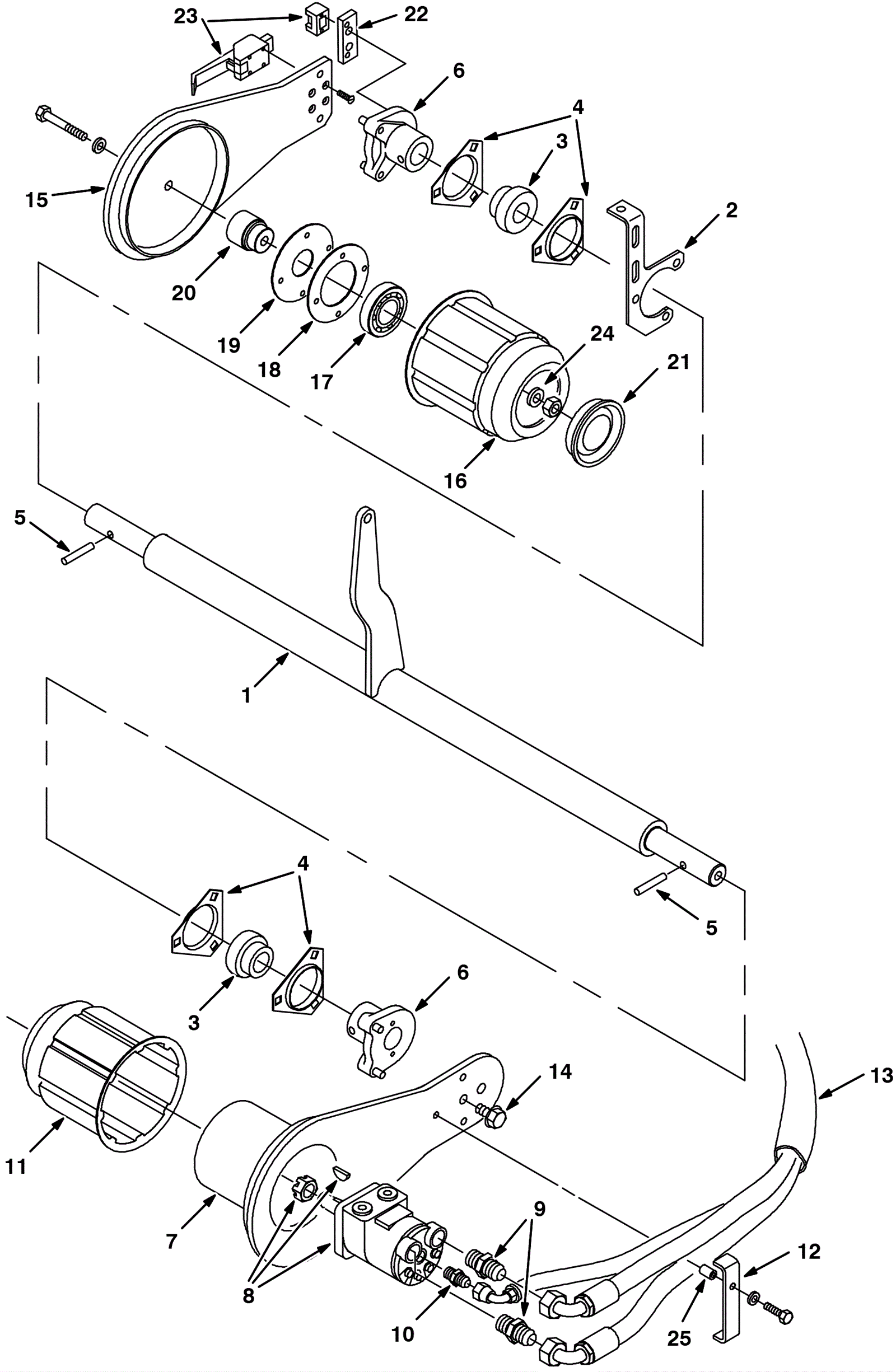

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
675-4916
|
SHAFT WLDT, LIFT, BRUSH, MAIN (Tennant Industrial) |
1 |
|
|
2 |
575-6891
|
BRACKET, MTG, MAIN BRUSH SHAFT (Tennant Industrial) |
1 |
|
|
3 |
575-7091
|
BEARING, W/ COLLAR, 1.25B 2.44D 1.41W (Tennant Industrial) |
2 |
|
|
4 |
475-9818
|
FLANGE, BRG, 2.4ID 3H (Tennant Industrial) |
4 |
|
|
5 |
175-9781
|
Roll pin 3/8d x 2l .375/.382 |
2 |
|
|
6 |
675-1832
|
HUB ASSY, MTG, ARM, BRUSH, 1.25B (Tennant Industrial) |
2 |
|
|
7 |
675-6130
|
ARM WLDT, BRUSH, MAIN, DRIVE (Tennant Industrial) (OBSOLETE) |
1 |
|
|
8 |
275-4062
|
MOTOR, HYD, GEAR, INT 02.8 BI-DIR 1500 (Tennant Industrial) |
1 |
|
|
9 |
275-0415
|
Straight hydraulic fitting |
2 |
|
|
10 |
175-8098
|
FITTING, HYD, STR, JM04/OM04 (Tennant Industrial) |
1 |
|
|
11 |
275-9432
|
PLUG WLDT, DRIVE, BRUSH (Tennant Industrial) |
1 |
|
|
12 |
575-4839
|
BRACKET, CHANNEL, CLAMP, HOSE (Tennant Industrial) |
1 |
|
|
13 |
375-0689
|
Nylon sleeve (Tennant Industrial) |
1 |
|
|
14 |
475-8978
|
FITTING, PLSTC, PLUG, PM08, HEX W/ SL (Tennant Industrial) |
1 |
|
|
15 |
175-6723
|
Main brush ilder arm weldment |
1 |
|
|
16 |
275-6142
|
Idler brush plug weldment (Tennant Industrial) |
1 |
|
|
17 |
375-4062
|
Ball bearing (Tennant Industrial) |
1 |
|
|
18 |
575-2018
|
DISC, 0.08, 04.39D 02.56B, 4/.28H 3.8BC (Tennant Industrial) |
1 |
|
|
19 |
575-3320
|
DISC, 0.06, 04.39D 01.67B, 4/.30H 3.8BC (Tennant Industrial) |
1 |
|
|
20 |
575-9072
|
SHAFT, IDLER, PLUG, BRUSH (Tennant Industrial) |
1 |
|
|
21 |
475-8715
|
CAP, VINYL, 3.28D 0.45L (Tennant Industrial) |
1 |
|
|
22 |
175-6725
|
PLATE, MTG (Tennant Industrial) |
1 |
|
|
23 |
175-6724
|
LATCH, CMPR, M5 X 0.8 BLK (Tennant Industrial) |
1 |
|
|
24 |
175-2188
|
Washer |
1 |
|
|
25 |
575-0846
|
TUBE, 0.26ID 0.52OD 00.8L, STL, PL (Tennant Industrial) |
1 |
|
|
