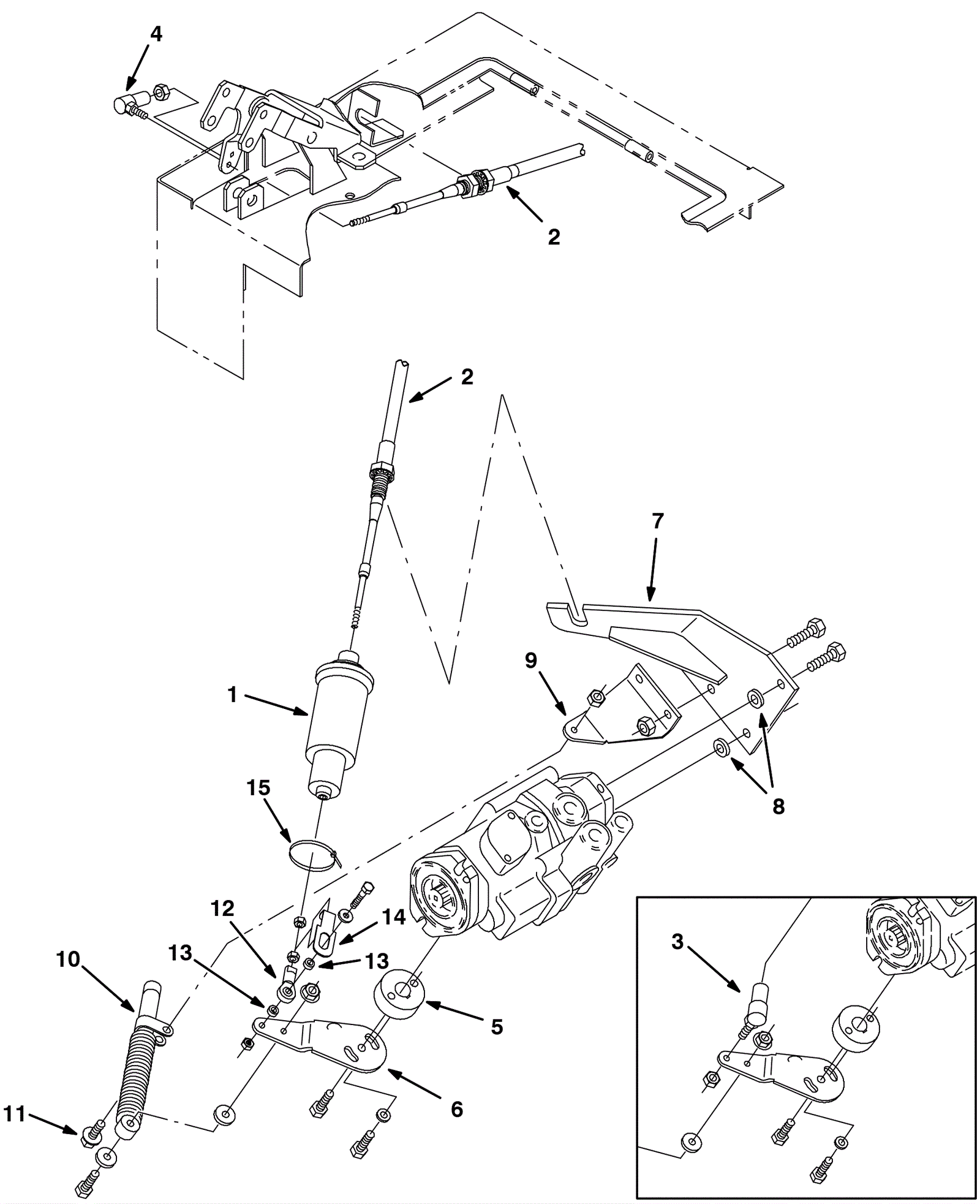

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
675-2924
|
SPRING ASSY, CENTERING, LBS . TRAVEL (Tennant Industrial |
1 |
|
|
2 |
675-5051
|
CABLE KIT, PUSH / PULL, REPLMT [8400/10] (Tennant Industrial |
1 |
|
|
3 |
675-0642
|
ROD-END KIT, CNTRL, DIR, REPAIR (Tennant Industrial) |
1 |
(before SN 010657) |
|
4 |
175-3302
|
Balljoint 1/4-28 |
1 |
|
|
5 |
175-7155
|
HUB, MTG, ARM, CNTRL, PINTLE (Tennant Industrial) |
1 |
|
|
6 |
575-3127
|
ARM, BRUSH, MAIN (Tennant Industrial) |
1 |
|
|
7 |
375-1942
|
Propel bracket (OBSOLETE) |
1 |
|
|
8 |
999-0032
|
Washer 3/8 USS flat plain finish |
2 |
|
|
9 |
675-4799
|
BRACKET, MTG, SHOCK (Tennant Industrial) |
1 |
|
|
10 |
275-3117
|
SHOCK ABSORBER, 2.3 STRK (Tennant Industrial) |
2 |
|
|
11 |
175-3285
|
Bolt 1/4-20 x 5/16-1 shoulder |
1 |
|
|
12 |
175-7212
|
ROD-END, 0.25-28RH FEM 0.25B [TEFLON] (Tennant Industrial) |
1 |
(after SN 010656) |
|
13 |
175-5327
|
Spacer |
3 |
(after SN 010656) |
|
14 |
575-2335
|
BRACKET, CLIP, SAFETY (Tennant Industrial) |
1 |
(after SN 010656) |
|
15 |
175-2162
|
Nylon wire tie |
1 |
(after SN 010656) |
|
