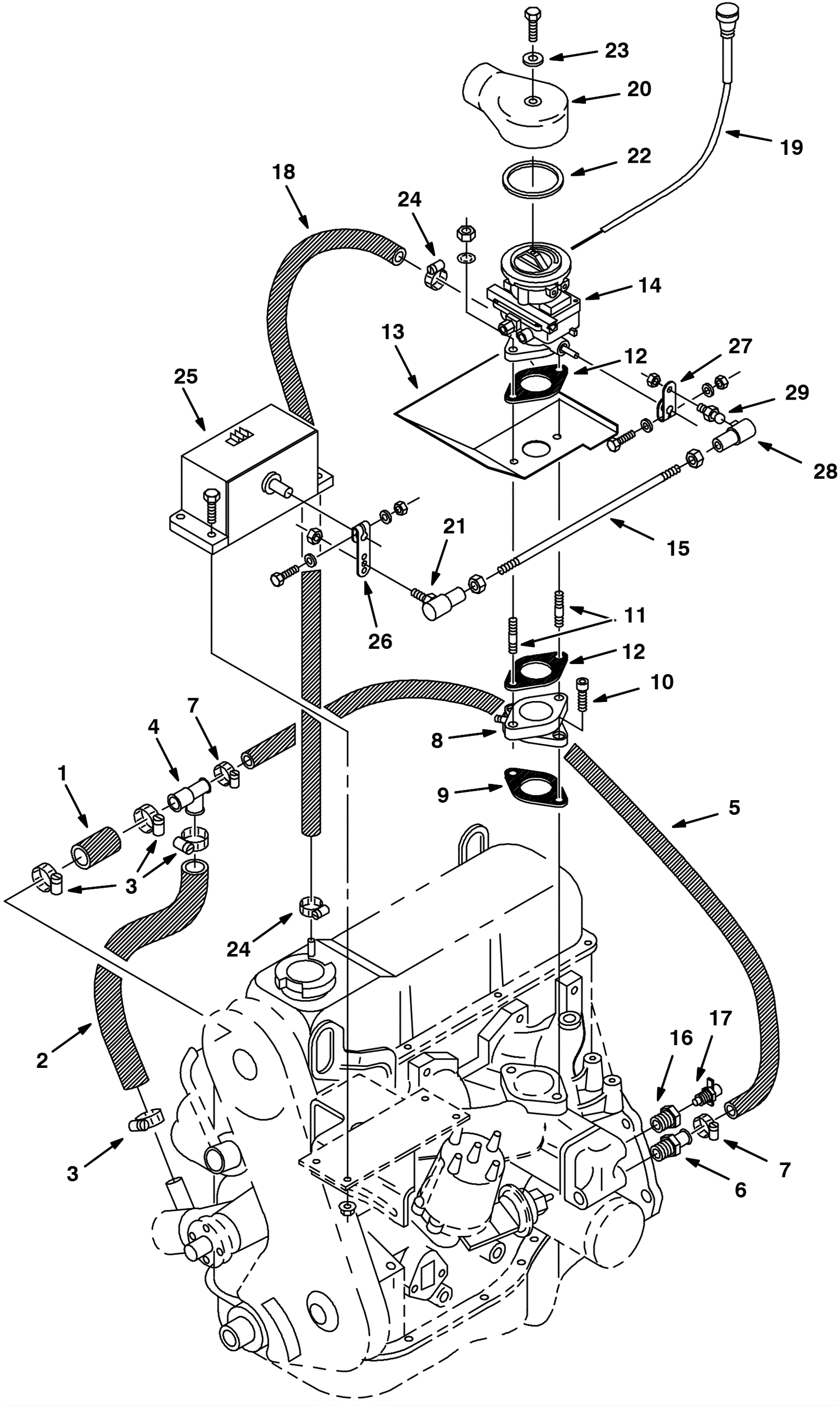

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
175-0748
|
HOSE, HEATER, 0.62ID, 002.0L (Tennant Industrial) |
1 |
(gasoline) |
|
2 |
575-1360
|
HOSE, AFMKT, RBR, HEATER, 0.62ID, 01FT (Tennant Industrial) |
1 |
(gasoline) |
|
3a |
175-0199
|
Hose clamp |
4 |
(gasoline) |
|
3b |
175-3594
|
Hose clamp |
1 |
(LPG) |
|
4 |
575-3530
|
VR, FITTING, PLSTC, TEE, BM06/BM10/BM10 (Tennant Industrial) |
1 |
(gasoline) |
|
5 |
575-2238
|
HOSE, RBR, 0.38ID 0.62OD 35.0L (Tennant Industrial) |
1 |
(gasoline) |
|
6 |
375-0582
|
Brass fitting (Tennant Industrial) |
1 |
|
|
7 |
175-6081
|
Hose clamp |
2 |
(gasoline) |
|
8 |
375-1902
|
Adaptor (OBSOLETE) |
1 |
|
|
9 |
475-9793
|
GASKET, CARB, .05, 1.83ID, 2/2.9BC (Tennant Industrial) |
1 |
|
|
10 |
275-8486
|
Screw M10-1.5 x 25 socket |
2 |
|
|
11 |
375-1903
|
Rod (OBSOLETE) |
2 |
|
|
12 |
375-3824
|
Carb gasket (Tennant Industrial) |
2 |
|
|
13 |
575-9964
|
PLATE (Tennant Industrial) |
1 |
(gasoline) |
|
14a |
675-8009
|
CARBURETOR, GAS [F/ LRG-423, VENT, ZE] (Tennant Industrial) |
1 |
(includes 14b) (gasoline) |
|
14b |
375-1904
|
Carburetor repair kit |
1 |
(gasoline) |
|
14c |
375-3778
|
Carburetor with gasket (Tennant Industrial) |
1 |
(LPG) (includes 3b and 14d) |
|
14d |
675-4708
|
CARB KIT, REPAIR (Tennant Industrial) |
1 |
(LPG) |
|
15 |
575-5494
|
ROD (Tennant Industrial) |
1 |
|
|
16 |
475-9322
|
FITTING, HYD, STR, PF04/PM06 (Tennant Industrial) |
1 |
(gasoline) |
|
17 |
575-0722
|
FITTING, DRAINCOCK, .25NPT (Tennant Industrial) |
1 |
(gasoline) |
|
18 |
575-4329
|
HOSE, RBR, 0.38ID 0.62OD 16.0L (Tennant Industrial) |
1 |
|
|
19 |
375-3769
|
Cable choke assembly (Tennant Industrial) |
1 |
(gasoline) |
|
20 |
375-3768
|
Gas carburetor elbow adaptor (Tennant Industrial) |
1 |
(gasoline) |
|
21 |
175-3302
|
Balljoint 1/4-28 |
1 |
|
|
22 |
375-3767
|
Carburetor air horn gasket (Tennant Industrial) |
1 |
(gasoline) |
|
23 |
175-8945
|
Washer 9/32 x 5/8 x 1/16 nylon |
1 |
(gasoline) |
|
24 |
175-3594
|
Hose clamp |
2 |
(gasoline) |
|
25 |
675-7896
|
ACTUATOR, GOVNR, GAS/LPG/DSL [SF-1] (Tennant Industrial) |
1 |
|
|
26 |
675-2683
|
ARM, CNTRL, THROTTLE, 1.8 .38H .26H [3] (Tennant Industrial) |
1 |
|
|
27 |
575-1724
|
ARM, CNTRL, THROTTLE, 1.1 .25H .26H (Tennant Industrial) |
1 |
|
|
28 |
375-2130
|
.25-28 balljoint female body (OBSOLETE) |
1 |
|
|
29 |
475-9201
|
STUD, BALL, .25D .25-16, BALLJOINT (Tennant Industrial) |
1 |
|
|
N/S |
375-3545
|
Fitting (Tennant Industrial) |
1 |
(included with 14c) |
|
N/S |
375-3779
|
Carb fitting (Tennant Industrial) |
1 |
(included with 14c) |
|
