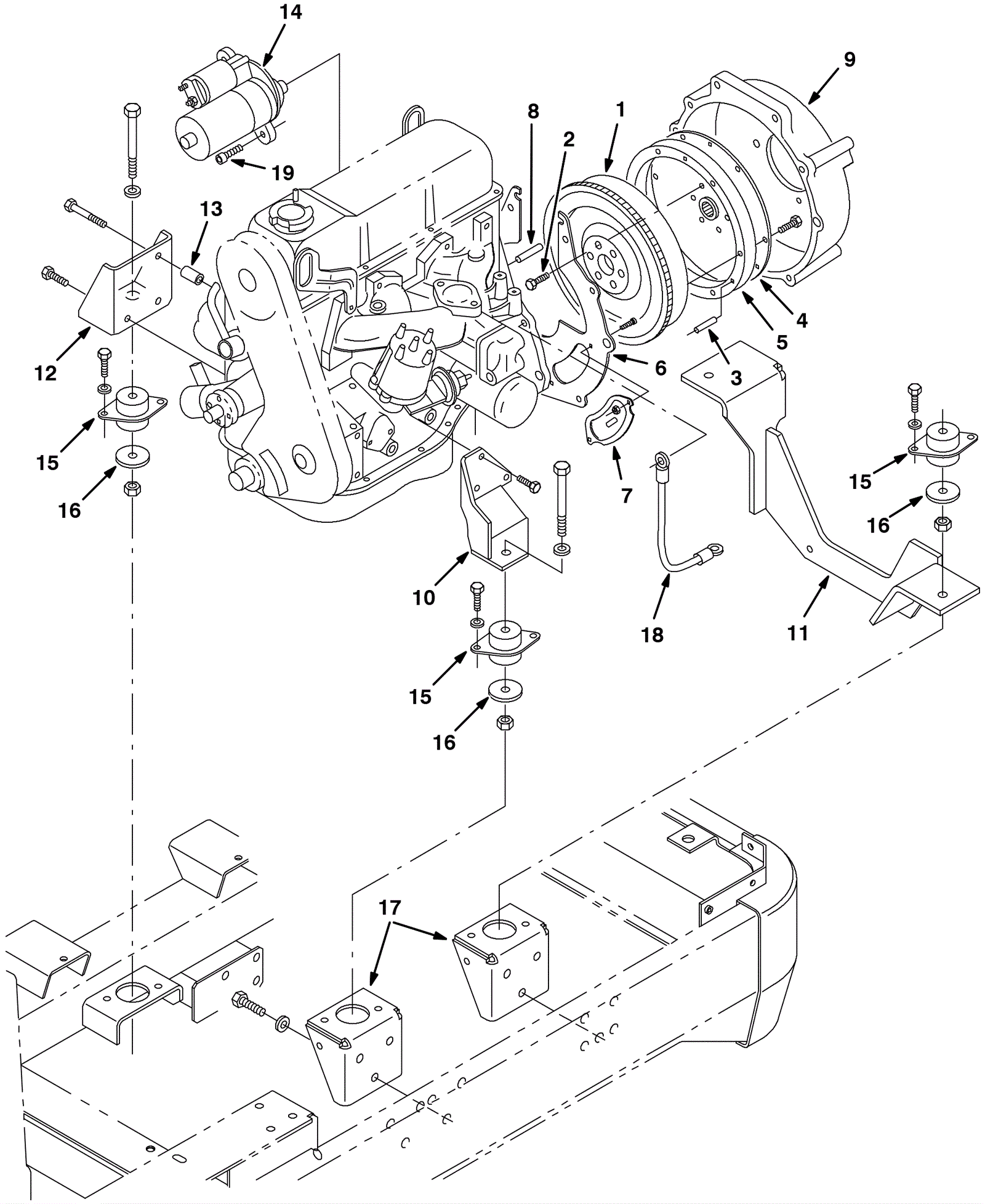

8400 Engine Mount Assembly

#PartDescriptionPriceReqNotesAvailability
1 375-1890 Flywheel (OBSOLETE) Call for price 1 usually ships 10-16 days
2 999-0774 Bolt M10-1.5 x 30mm hex head stainless steel full thread $0.99 6 ships same day
3 175-6898 PIN, ROLL, .312D X 1.37L, .312/.318 (Tennant Industrial) $6.67 3 usually ships 1-5 days
4 675-6274 COUPLING, DRIVE, FLEX, 10.3D /15TOOTH (Tennant Industrial) $1,174.57 1 usually ships 10-16 days
5 375-1891 Spacer (OBSOLETE) Call for price 1 usually ships 10-16 days
6 375-1892 Engine rear plate (OBSOLETE) Call for price 1 usually ships 10-16 days
7 475-9794 VR, COVER, ACCESS [FD] (Tennant Industrial) $5.18 1 usually ships 10-16 days
8 275-7507 DOWEL, CY. BLOCK TO FLYWHL HSG (Tennant Industrial) $28.67 1 usually ships 1-5 days
9 375-1893 Flywheel housing (OBSOLETE) Call for price 1 usually ships 10-16 days
10 375-1894 Engine mounting bracket weldment (OBSOLETE) Call for price 1 usually ships 10-16 days
11 375-1895 Rear bracket weldment (OBSOLETE) Call for price 1 usually ships 10-16 days
12 375-1896 Right hand front upper engine bracket (OBSOLETE) Call for price 1 usually ships 10-16 days
13 575-4160 TUBE, 0.50ID 0.69OD 01.3L, STL, PL (Tennant Industrial) $49.01 1 usually ships 10-16 days
14 675-6533 STARTER, 12VDC, FORD 2.3 FD (Tennant Industrial $1,017.20 1 usually ships 10-16 days
15 575-8065 ISOLATOR, VIB, FLNG, 1.3H .5B 2/.39H (Tennant Industrial) $98.85 4 usually ships 10-16 days
16 175-3470 Washer .53b 1.88d .12 steel plated $4.88 4 ships same day
17 375-1897 Left hand lower rear engine bracket (OBSOLETE) Call for price 2 usually ships 10-16 days
18 375-1898 Wire assembly (OBSOLETE) Call for price 1 usually ships 10-16 days
19 175-9519 Screw M10-1.5 x 35 socket head $4.88 3 usually ships 1-5 days
