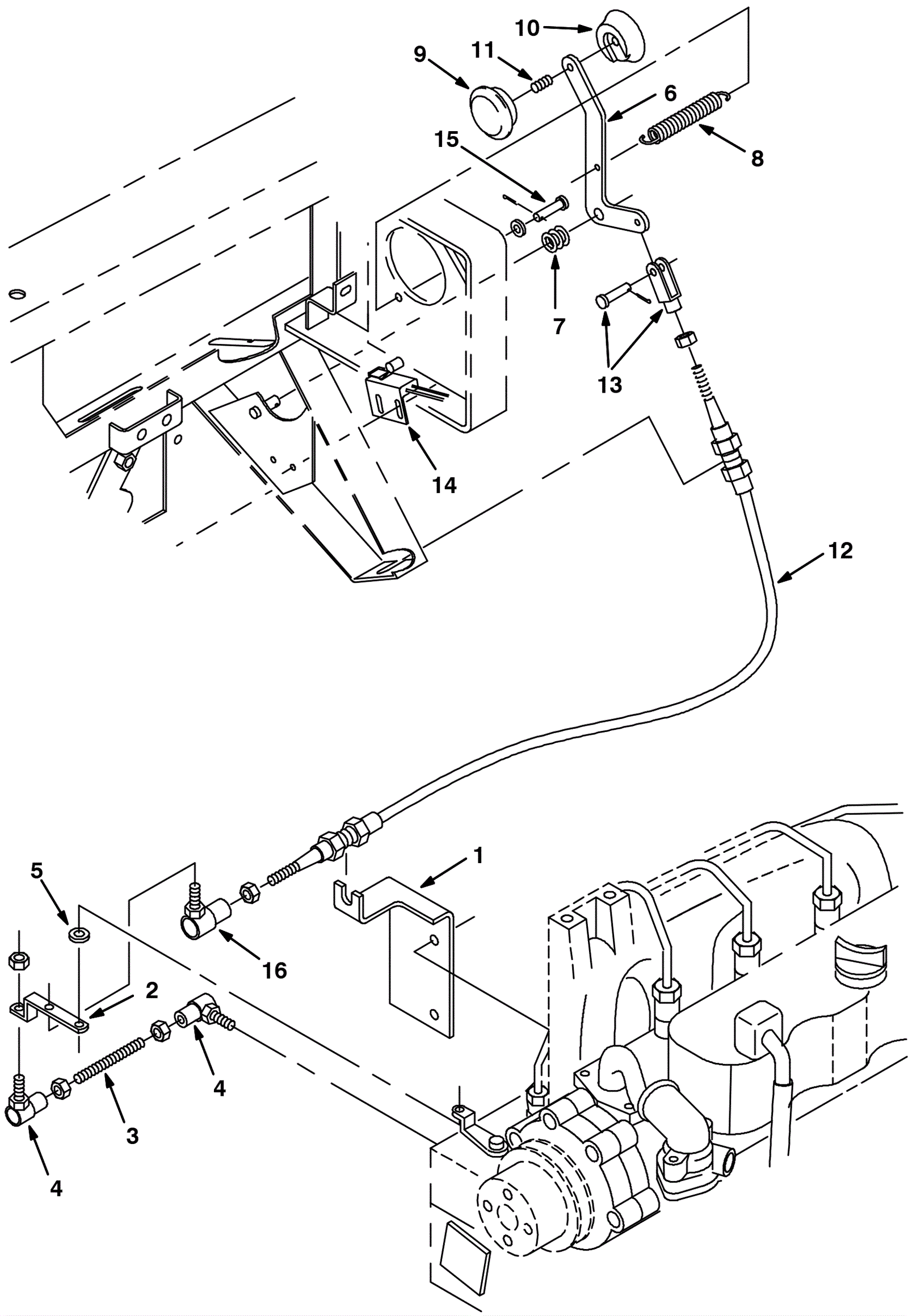

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
375-1889
|
Engine throttle bracket (OBSOLETE) |
1 |
|
|
2 |
575-5605
|
BELLCRANK, THROTTLE, .12 0.5W 3.6L (Tennant Industrial) |
1 |
|
|
3 |
575-2178
|
ROD, THRD, FULL, .25-28 02.1L, PL (Tennant Industrial) |
1 |
|
|
4 |
175-3302
|
Balljoint 1/4-28 |
2 |
|
|
5 |
175-8945
|
Washer 9/32 x 5/8 x 1/16 nylon |
1 |
|
|
6 |
575-4260
|
HANDLE, CNTRL, THROTTLE, DSL (Tennant Industrial) |
1 |
|
|
7 |
175-2203
|
Compression spring |
1 |
|
|
8 |
175-8963
|
Extension spring |
1 |
|
|
9 |
575-2108
|
KNOB, RND, 2.00D 0.65L M6, PLSTC (Tennant Industrial) |
1 |
|
|
10 |
575-3215
|
KNOB, RND, 2.00D 0.84L M6, PLSTC (Tennant Industrial) |
1 |
|
|
11 |
575-0101
|
SCREW, SET, SOC, M6 X 1.00 X 20, PL[45H] (Tennant Industrial |
1 |
|
|
12 |
675-3163
|
CABLE, PUSH / PULL, 032.0L 10-32/10-32 (Tennant Industrial) |
1 |
|
|
13 |
175-3424
|
Clevis 10-32 adjustment |
1 |
|
|
14 |
275-6954
|
Snap switch |
1 |
|
|
15 |
175-7117
|
Clevis pin |
1 |
|
|
16 |
475-9788
|
BALLJOINT, #10-32 FEM, #10-32 MAL (Tennant Industrial) |
1 |
|
|
