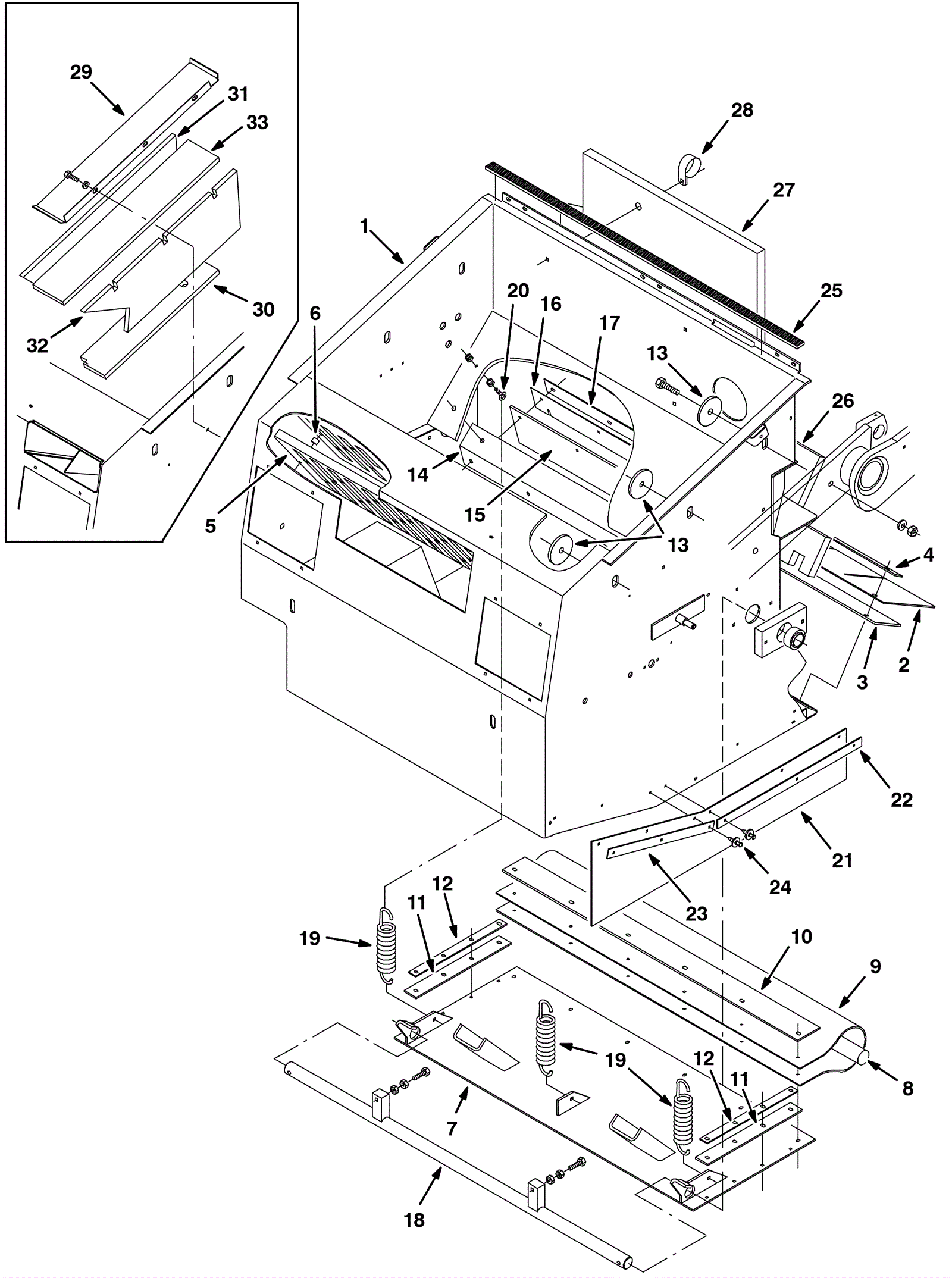

Hopper and Dump Door Assembly

#PartDescription ReqNotesAvailability
1a 375-1859 Hopper weldmemt (OBSOLETE) 1 (before SN 010250)
1b 675-8766 HOPPER WLDT [8410] (Tennant Industrial) 1 (after SN 010249)
2 275-7377 SKIRT, NEO, .12, 08.00W 40.76L, 05/ SL (Tennant Industrial) 1
3 275-7382 SKIRT, NEO, .18, 04.00W 40.76L, 05/ SL (OBSOLETE) 1
4 575-6973 RETAINER, SKIRT, .12, 1.3W X 40.5L, BLK (Tennant Industrial) 1
5 375-1860 Perma-filter panel 1
6 275-6348 Tube (Tennant Industrial) 2
7 375-1861 Dump door (OBSOLETE) 1
8 375-1214 Seal (TENNANT INDUSTRIAL) (OBSOLETE) 1
9 275-7383 SEAL, DOOR, DUMP, REAR (OBSOLETE) 1
10 575-8217 STRIP, STL, 0.18, 03.38W, 39.76L (Tennant Industrial) 1
11 375-1215 Seal (TENNANT INDUSTRIAL) 2
12 575-2423 STRAP (Tennant Industrial) 2
13 475-9627 WASHER, FLAT, 0.56B 3.03D .25, STL, PL (Tennant Industrial) 6
14 675-0184 ANGLE, HPPR (Tennant Industrial) 1
15 575-8473 SEAL, DOOR, DUMP, HPPR, REAR (Tennant Industrial) 1
16 575-4257 SEAL, DOOR, DUMP, HPPR, REAR (Tennant Industrial) 1
17 675-4954 RETAINER, SEAL, HPPR, .12 X 1.8W X 40.3L (Tennant Industrial 1
18 675-5795 SHAFT WLDT, PIVOT, HPPR (Tennant Industrial) 1
19 575-6786 SPRING, EXTN, 1.75OD 0.21WIR 05.8L (Tennant Industrial) 3
20 475-8948 BOLT, EYE, .25-20 X 2.00, 0.56 EYE (Tennant Industrial) 3
21 375-1218 Skirt (TENNANT INDUSTRIAL) 1
22 575-4288 RETAINER, SKIRT, .12, 1.0W X 19.4L, BLK (Tennant Industrial) 1
23 575-3859 RETAINER, SKIRT, .12, 1.0W X 15.1L, BLK (Tennant Industrial) 1
24 175-3378 Rivet 1/4 x 57/64 plastic 6
25 575-7218 SEAL, RBR, OPEN, 0.19, 0.75W 43.5L ADH (Tennant Industrial) 1
26 575-8034 INSULATION, ACSTC, 1.0, 40.8 X 10.6 NTCH (Tennant Industrial 1
27 575-7044 INSULATION, ACSTC, 1.0, 13.5 X 26.5 NTCH (Tennant Industrial 1
28 475-9105 CLAMP, CABLE, STL, 1.75D X 1.00W, 1HOLE (Tennant Industrial) 1
29 375-1862 Top exhaust duct cover (OBSOLETE) 1 (before SN 010250)
30 575-1021 INSULATION, ACSTC, 0.5, 16.0 X 03.7 NTCH (Tennant Industrial 1 (before SN 010250)
31 375-1863 Right hand duct acoustic insulation (OBSOLETE) 1 (before SN 010250)
32 575-2328 INSULATION, ACSTC, 0.5, 21.1 X 06.3 CHAM (Tennant Industrial 1 (before SN 010250)
33 375-1864 Duct acoustic insulation (OBSOLETE) 1 (before SN 010250)
