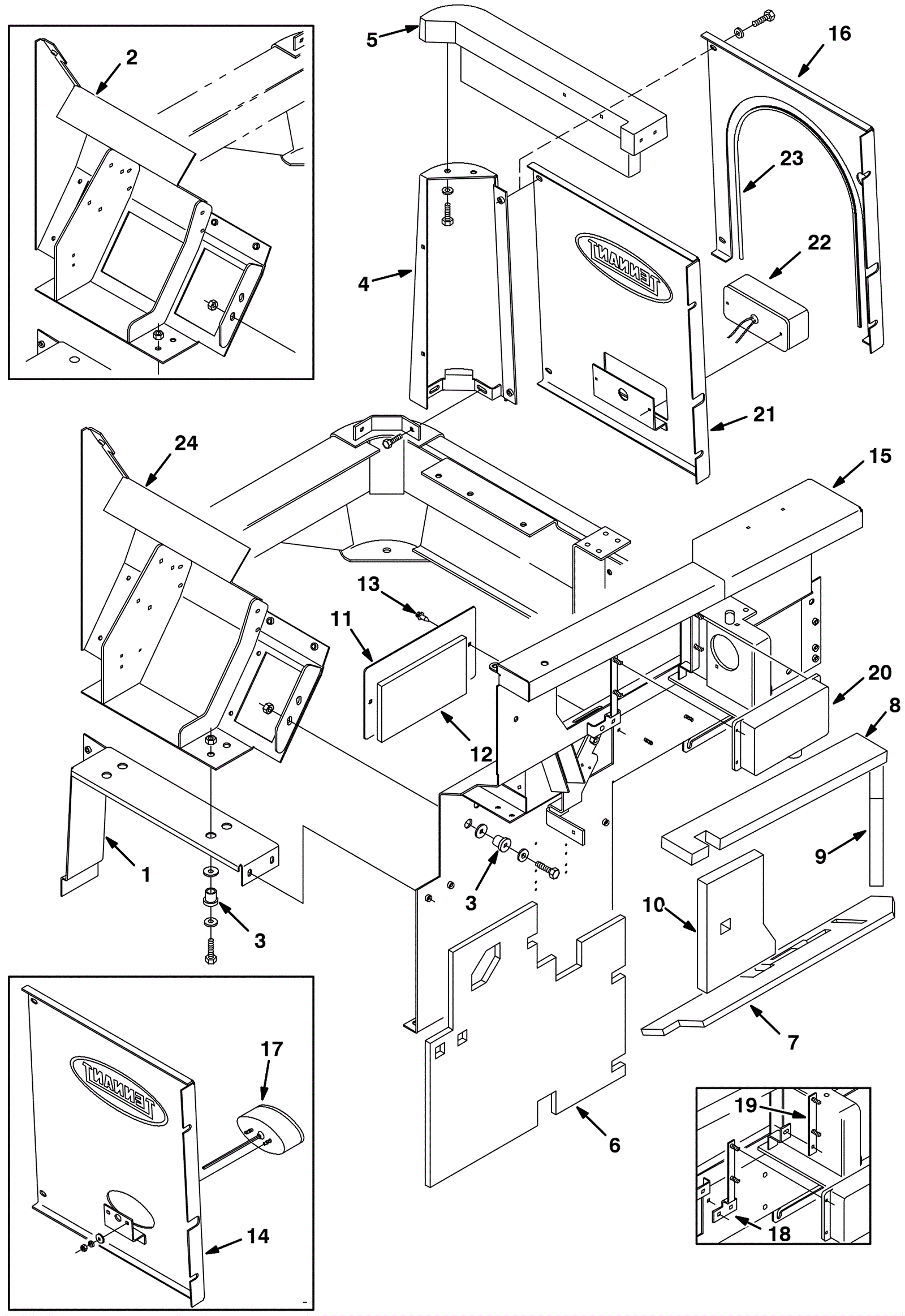

Right Hand Rear and Side Instrument Panel Assembly

#PartDescription ReqNotesAvailability
1 375-1829 Lower panel (OBSOLETE) 1
2 375-1830 Instrument panel replacement (OBSOLETE) 1
3 175-2429 Vibration isolator 6
4 375-1831 Right hand corner tower weldment (OBSOLETE) 1
5 375-1832 Door cap (OBSOLETE) 1
6 375-1833 Acoustic insulation (OBSOLETE) 1
7 375-1834 Acoustic insulation (OBSOLETE) 1
8 375-1835 Acoustic insulation (OBSOLETE) 1
9 375-1836 Acoustic insulation (OBSOLETE) 1
10 375-1837 Acoustic insulation (OBSOLETE) 1
11 375-1838 Plate (OBSOLETE) 1
12 375-1839 Acoustic insulation (OBSOLETE) 1
13 275-2207 RIVET, PLSTC, .325D X 0.79 (Tennant Industrial) 2
14 375-1840 Right hand rear door (OBSOLETE) 1 (before SN 10372)
15 375-1841 Instrument panel with decal (OBSOLETE) 1
16a 375-1842 Right hand rear door (OBSOLETE) 1 (LPG)
16b 375-1843 Right hand rear door (OBSOLETE) 1 (diesel)
17a 375-1844 Taillight assembly (OBSOLETE) 1 (includes 17b) (before SN 10372)
17b 175-5929 LAMP, 12VDC, 0.5A, 04CP [#1157] (Tennant Industrial) 1 (before SN 10372)
18 375-1845 Governor bracket (OBSOLETE) 1 (before SN 10372) (LPG)
19 375-1846 Governor bracket (OBSOLETE) 1 (before SN 10372) (LPG)
20 375-1847 Governor control box (OBSOLETE) 1 (after SN 10371) (LPG)
21 375-1843 Right hand rear door (OBSOLETE) 1 (after SN 10371) (LPG)
22a 575-6172 TAILLIGHT, 12VDC, 6.6 X 3.1, RWK 59948 (Tennant Industrial) 1 (includes 22b) (after SN 10371)
22b 175-5929 LAMP, 12VDC, 0.5A, 04CP [#1157] (Tennant Industrial) 1 (after SN 10371)
23 175-9171 Trim molding 1 (after SN 10371) (LPG)
24 375-1849 Instrument panel weldment (OBSOLETE) 1
