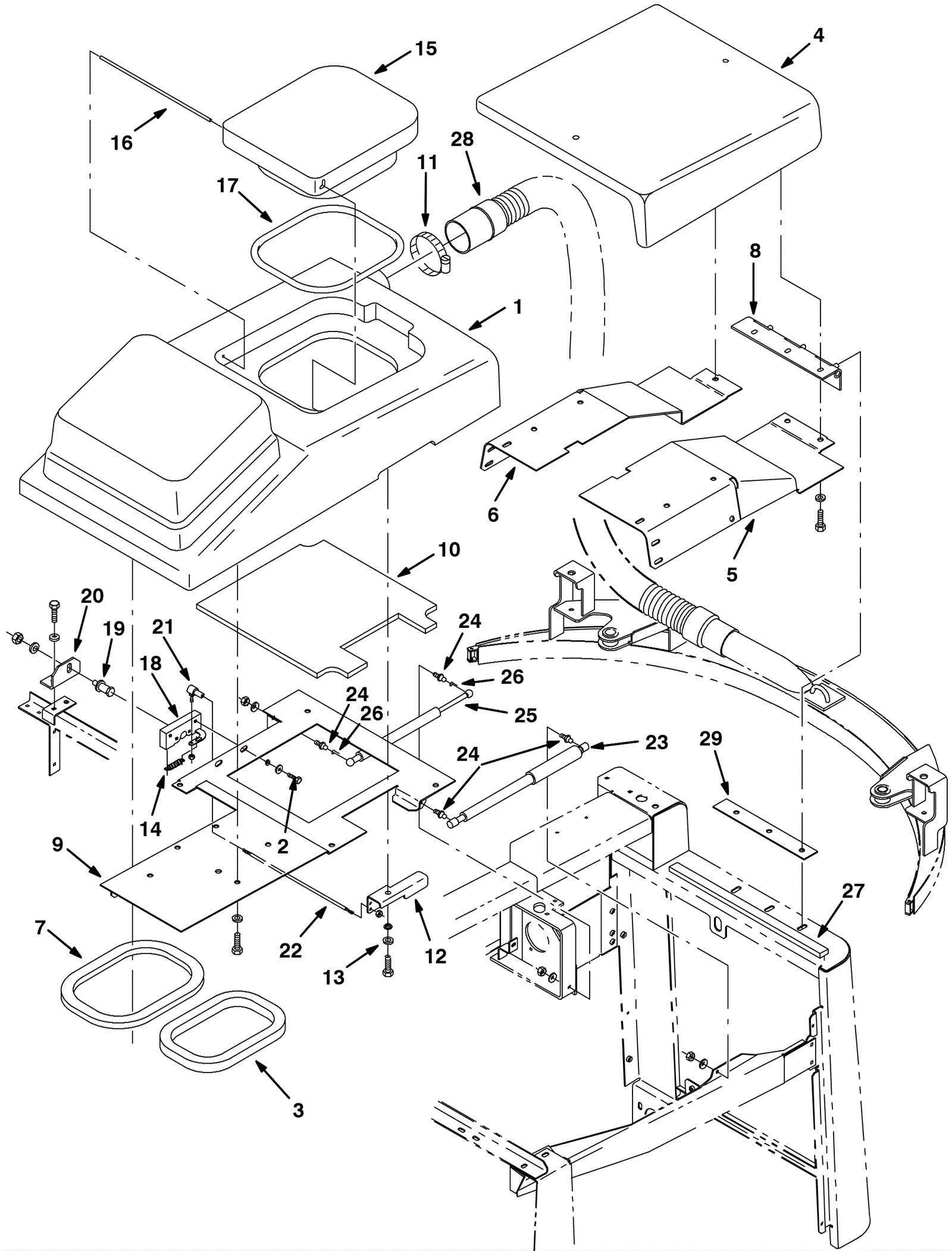

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
375-1819
|
Demister cover (OBSOLETE) |
1 |
|
|
2 |
575-2161
|
TUBE, 0.25ID 0.49OD 00.1L, STL (Tennant Industrial) |
2 |
|
|
3 |
575-3017
|
SEAL, RBR, OPEN, 1.00, TANK, SOLTN (Tennant Industrial) |
1 |
|
|
4 |
375-1820
|
Engine cover (OBSOLETE) |
1 |
|
|
5 |
375-1821
|
Left hand hood bracket (OBSOLETE) |
1 |
|
|
6 |
375-1822
|
Right hand hood bracket (OBSOLETE) |
1 |
|
|
7 |
575-3184
|
SEAL, RBR, CLSD, 0.75, TANK, RECVY (Tennant Industrial) |
1 |
|
|
8 |
675-2205
|
HINGE, .50PIN .19 4.0W 11.8L, 6/0.38SL (Tennant Industrial) |
1 |
|
|
9 |
375-1823
|
Spring mounting bracket (OBSOLETE) |
1 |
|
|
10 |
575-4962
|
INSULATION, ACSTC, 0.5, 17.6 X 15.4 NTCH (Tennant Industrial |
1 |
|
|
11 |
175-7146
|
Wormdrive clamp (Tennant Industrial) |
1 |
|
|
12 |
675-2619
|
HANDLE, LATCH (Tennant Industrial) |
1 |
|
|
13 |
175-9165
|
Bushing |
1 |
|
|
14 |
275-7457
|
SPRNG, TENSION (Tennant Industrial) |
1 |
|
|
15 |
375-1824
|
Cleanout cover (OBSOLETE) |
1 |
|
|
16 |
575-2988
|
ROD, PLSTC (Tennant Industrial) |
1 |
|
|
17 |
375-1825
|
Silicone tube seal (OBSOLETE) |
1 |
|
|
18a |
275-7456
|
LATCH (Tennant Industrial) |
1 |
(before SN 010676) |
|
18b |
575-6235
|
LATCH, SGL STAGE (Tennant Industrial) |
1 |
(after SN 010675) |
|
19 |
275-6024
|
LATCH, BOLT (Tennant Industrial) |
1 |
|
|
20 |
675-2503
|
BRACKET, LATCH (Tennant Industrial) |
1 |
|
|
21 |
175-3302
|
Balljoint 1/4-28 |
1 |
|
|
22 |
675-0167
|
ROD (Tennant Industrial) |
1 |
|
|
23 |
675-3490
|
GASSPRING, 74LB, 10.2STRK (Tennant Industrial) |
1 |
|
|
24 |
175-0761
|
Gas spring ball stud |
4 |
|
|
25 |
675-2184
|
GASSPRING, 74LB, 10.3STRK (Tennant Industrial) |
1 |
|
|
26 |
275-1876
|
CLIP, SAFETY, GASSPRING (Tennant Industrial) |
2 |
|
|
27 |
575-1306
|
INSULATION, ACSTC, 1.0, 21.8 X 01.5 (Tennant Industrial) |
1 |
|
|
28 |
675-4707
|
HOSE ASSY, W/2CUFF, 2.5D 090L 2.5/3.0 (Tennant Industrial) |
1 |
|
|
29 |
375-1826
|
Engine cover spacer plate (OBSOLETE) |
1 |
|
|
