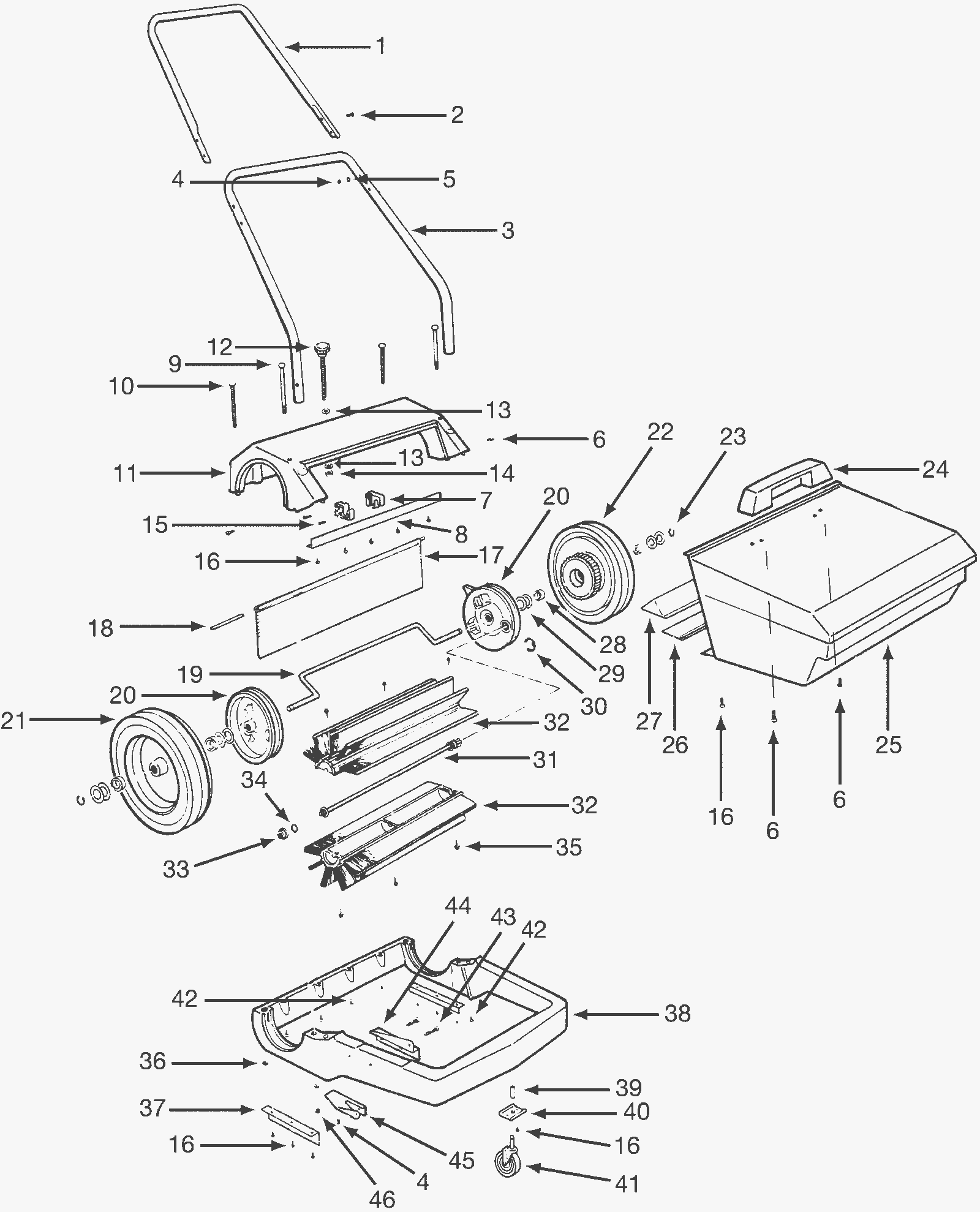

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
575-7765
|
HANDLE (Tennant Industrial) |
1 |
|
|
2 |
475-0436
|
SCREW, TRS, .25-20 X 1.25, SLTD |
4 |
|
|
3 |
575-6628
|
HANDLE, LOWER (Tennant Industrial) |
1 |
|
|
4 |
999-1277
|
NUT, HEX, STD, .25-20, SS (Tennant Industrial) |
6 |
|
|
5 |
999-0632
|
Washer 1/4 split lock stainless steel |
4 |
|
|
6 |
999-1382
|
Screw 1/4-20 x 1 truss head phillips |
6 |
|
|
7 |
475-9486
|
NUT (Tennant Industrial) |
2 |
|
|
8 |
575-2084
|
SEAL, HPPR (Tennant Industrial) |
1 |
|
|
10 |
999-1850
|
Bolt 5/16-18 x 5 1/2 round head zinc |
2 |
|
|
11 |
475-2617
|
HOUSING, REAR, BLACK [110 / SCOUT 27] |
1 |
|
|
12 |
575-3135
|
KNOB, STAR [110] (Tennant Industrial) |
1 |
|
|
13 |
999-9128
|
Washer 3/8 SAE flat stainless steel |
2 |
|
|
14 |
575-1215
|
SCREW (Tennant Industrial) |
1 |
|
|
15 |
N/A
|
Not available |
2 |
(screw #10 x 1 slotted hex head) |
|
16 |
375-1758
|
Screw #10 x 3/4 inch pan head philliips (OBSOLETE) |
15 |
|
|
17 |
575-6465
|
SEAL (Tennant Industrial) |
1 |
|
|
18 |
475-9990
|
ROD (Tennant Industrial) |
1 |
|
|
19 |
575-6519
|
AXLE, WHEEL [110] (Tennant Industrial) |
1 |
|
|
20 |
575-6044
|
HUB, PIVOT (Tennant Industrial) |
2 |
|
|
21 |
475-3874
|
WHEEL, BRG |
1 |
|
|
22 |
475-3826
|
WHEEL, CLUTCH |
1 |
|
|
23 |
475-3149
|
RETAINER, RING |
2 |
|
|
24 |
575-2267
|
HANDLE, HPPR (Tennant Industrial) |
1 |
|
|
25 |
475-2335
|
HOPPER |
1 |
|
|
26 |
575-3150
|
BLADE, FLOOR (Tennant Industrial) |
1 |
|
|
27 |
575-2994
|
RETAINER (Tennant Industrial) |
1 |
|
|
28 |
575-4354
|
VR, BEARING, WHEEL (Tennant Industrial) |
4 |
|
|
29 |
999-0114
|
Washer 1/2 SAE flat |
8 |
|
|
30 |
475-9087
|
E-RING, EXT (Tennant Industrial) |
1 |
|
|
31 |
475-2184
|
SHAFT |
1 |
|
|
32 |
475-3944
|
BRUSH, SWP, 19L, 10SR, PYP [SET] |
2 |
|
|
33 |
475-1298
|
VR, BEARING |
1 |
|
|
34 |
475-9722
|
VR, SEAL, ORG (Tennant Industrial) |
1 |
|
|
35 |
475-0537
|
SCREW, PAN, PHL, 10-16 X 1.25, FMG [A] |
6 |
|
|
36 |
999-0525
|
Nut 5/16-18 flange lock serrated zinc plated |
4 |
|
|
37 |
475-0879
|
SKIRT, SIDE |
2 |
|
|
38 |
475-2598
|
FRAME,MAIN, GRAY [110 / SCOUT 27] |
1 |
|
|
39 |
475-0634
|
SOCKET, CASTER [SV#35108-00-0] |
1 |
|
|
40 |
475-9723
|
SUPPORT (Tennant Industrial) |
1 |
|
|
41 |
575-4086
|
CASTER (Tennant Industrial) |
1 |
|
|
42 |
175-1271
|
Screw 1/4-20 x 1 1/2 |
6 |
|
|
43 |
N/A
|
Not available |
2 |
(bolt 1/4-20 C 1 3/4 round head) |
|
44 |
575-4734
|
BRACKET, MTG (Tennant Industrial) |
1 |
|
|
45 |
575-4922
|
BRACKET, MTG (Tennant Industrial) |
1 |
|
|
46 |
999-0632
|
Washer 1/4 split lock stainless steel |
2 |
|
|
