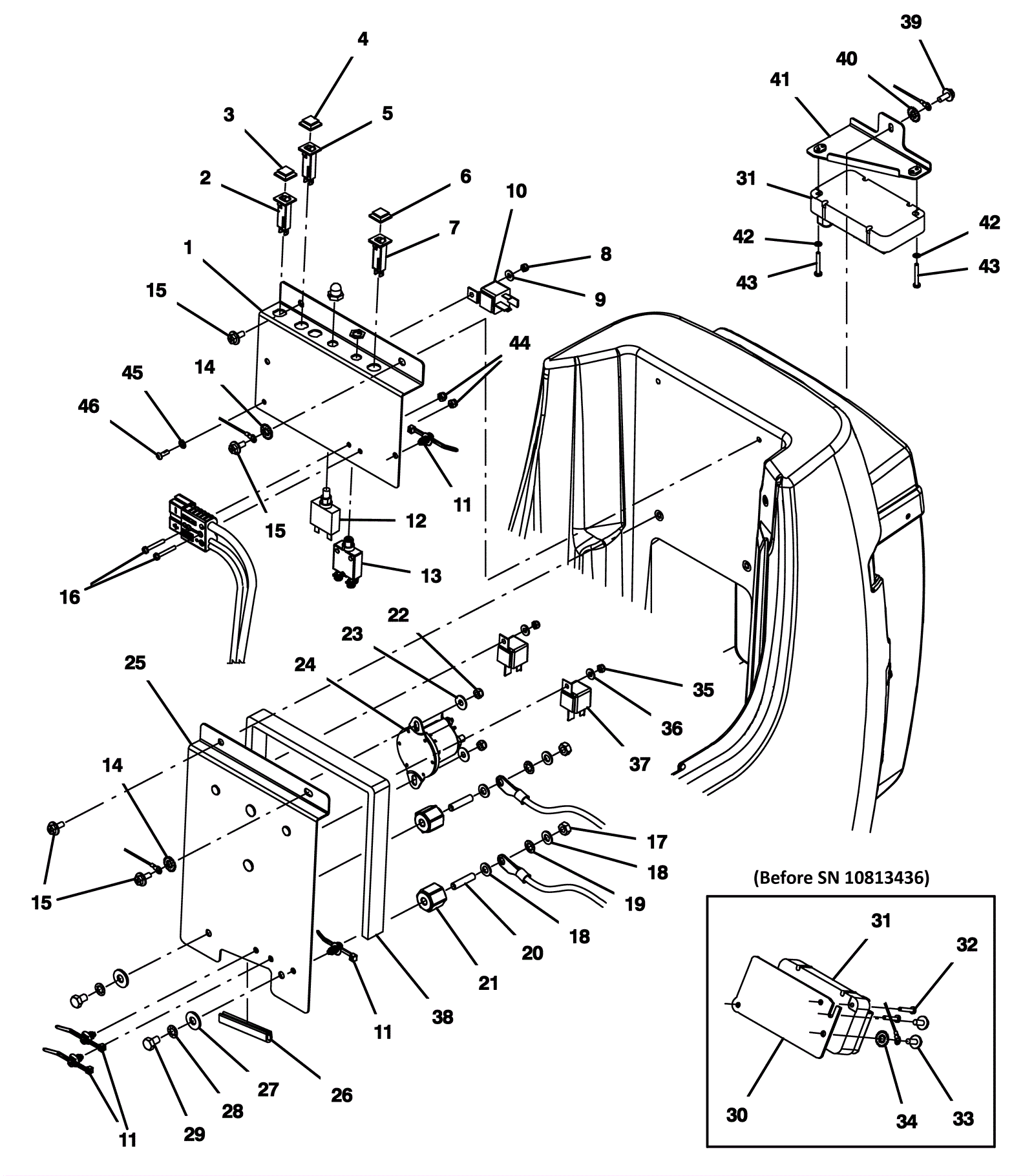

SPEED SCRUB 300 Electrical Components Assembly - Base Model

#PartDescriptionPriceReqNotesAvailability
1 375-0169 Bracket weldment $299.80 1 usually ships 1-5 days
2 375-0170 Circuit breaker $7.50 1 ships same day
3 275-2596 Circuit breaker boot (Tennant Industrial) $18.87 1 ships same day
4 275-2596 Circuit breaker boot (Tennant Industrial) $18.87 1 (qty 2 after SN 10000000) (ec-H2O) ships same day
5a 275-9986 10amp circuit breaker (Tennant Industrial) $7.52 1 ships same day
5b 375-0170 Circuit breaker $7.50 2 (ec-H2O) ships same day
6 275-2596 Circuit breaker boot (Tennant Industrial) $18.87 1 ships same day
7 275-7846 20amp circuit breaker (Tennant Industrial) $7.52 1 ships same day
8 999-0740 Nut M5-.8 hex stainless steel $0.99 1 (ec-H2O) ships same day
9 999-0998 Washer #10 flat stainless steel $0.99 1 (ec-H2O) ships same day
10 175-6588 24V 70amp elevated relay $15.60 1 (ec-H2O) ships same day
11 275-5197 Fir tree clip $1.50 4 usually ships 5-16 days
12 175-2151 30amp circuit breaker $13.80 1 (propel model) ships same day
13 375-1353 37amp circuit breaker $43.30 1 ships same day
14 275-0288 Washer 1/4 internal-external lock $2.90 2 ships same day
15 999-1383 Screw M6-1 x 16mm hex head stainless steel $0.99 4 ships same day
16 999-1672 Screw M4-.7 x 30mm pan head phillips stainless steel $0.99 2 ships same day
17 275-5476 Nut M8 x 1.25 hex brass (Tennant Industrial) $3.01 2 usually ships 5-16 days
18 275-5475 Washer M8-.4 x 1.6mm brass $2.20 4 usually ships 1-5 days
19 999-1053 Washer 5/16 internal star lock stainless steel $0.99 2 ships same day
20 175-4271 Screw M8 x 35mm set $3.60 2 usually ships 5-16 days
21 375-0176 Insulated stand-off $11.70 2 usually ships 1-5 days
22 999-0740 Nut M5-.8 hex stainless steel $0.99 2 ships same day
23 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 2 ships same day
24 375-1275 150amp relay $41.80 1 ships same day
25 375-1354 Bracket weldment $79.70 1 usually ships 1-5 days
26 275-1269 3 foot trim molding $60.30 1 usually ships 1-5 days
27 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 2 ships same day
28 999-0406 Washer 5/16 internal star lock zinc plated $0.99 2 ships same day
29 999-1415 Screw M8-1.25 x 12mm hex head stainless steel $1.52 2 ships same day
30 375-0179 Drive bracket weldment $29.50 1 (before SN 10813436) (propel model) usually ships 1-5 days
31 375-1355 Controller kit (Requires Tennant Tech to program) $562.60 1 (propel model) (requires Tennant True service or an authorized Tennant service provider) usually ships 5-16 days
33 999-1383 Screw M6-1 x 16mm hex head stainless steel $0.99 2 (before SN 10813436) (propel model) ships same day
34 275-0288 Washer 1/4 internal-external lock $2.90 1 (before SN 10813436) (propel model) ships same day
35 999-0740 Nut M5-.8 hex stainless steel $0.99 2 ships same day
36 999-0998 Washer #10 flat stainless steel $0.99 2 ships same day
37 175-6588 24V 70amp elevated relay $15.60 2 ships same day
38 375-0177 Circuit board cover gasket $23.80 1 usually ships 5-16 days
39 999-1383 Screw M6-1 x 16mm hex head stainless steel $0.99 1 (after SN 10813435) ships same day
40 275-0288 Washer 1/4 internal-external lock $2.90 1 (after SN 10813435) ships same day
41 375-3180 Bracket $52.40 1 (after SN 10813435) usually ships 5-16 days
42 999-1083 Washer #8 internal star lock stainless steel $0.99 2 (after SN 10813435) ships same day
43 999-1672 Screw M4-.7 x 30mm pan head phillips stainless steel $0.99 2 (after SN 10813435) ships same day
44 999-0954 Nut M4-.7 nylon insert lock stainless steel $0.99 2 ships same day
45 175-4544 Washer M6 locking $4.20 1 ships same day
46 999-1403 Screw M8 x 16mm torx head $2.90 1 ships same day
