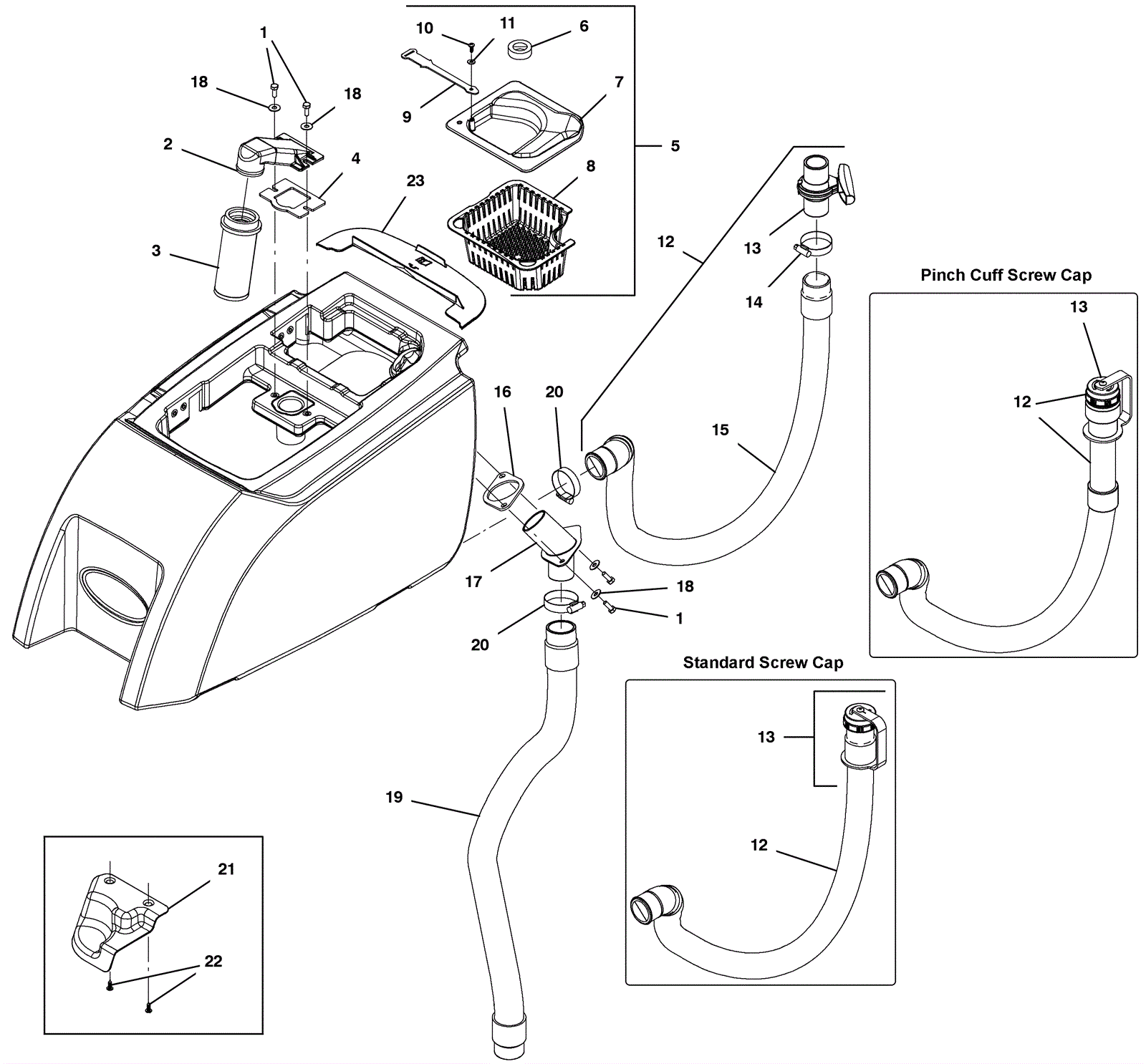

| # | Part | Description | Price | Req | Notes | Availability |
|---|
1 |
999-0507
|
Bolt M6-1 x 16mm hex head full thread plain finish |
$0.99
|
4 |
|
ships same day |
2 |
175-7782
|
Float mount |
$27.90
|
1 |
|
usually ships 5-16 days |
3 |
175-1804
|
Shut-off float |
$68.80
|
1 |
|
usually ships 16-25 days |
4 |
175-7783
|
Float mount gasket |
$3.90
|
1 |
|
ships same day |
5 |
375-1369
|
Debris tray deflector kit |
$43.70
|
1 |
(includes 6-11) (after SN 10785188) |
ships same day |
6 |
375-1373
|
Seal |
$2.00
|
1 |
(after SN 10785188) |
usually ships 5-16 days |
7 |
375-1370
|
Debris tray deflector |
$81.30
|
1 |
(after SN 10785188) |
usually ships 5-16 days |
8 |
375-0211
|
Debris tray |
$29.60
|
1 |
(after SN 10785188) |
ships same day |
9 |
375-1371
|
Deflector retaining strap |
$3.90
|
1 |
(after SN 10785188) |
usually ships 5-16 days |
10 |
999-0531
|
Screw M5-.8 x 16mm pan head slotted zinc |
$0.99
|
1 |
(after SN 10785188) |
ships same day |
11 |
999-0998
|
Washer #10 flat stainless steel |
$0.99
|
1 |
(after SN 10785188) |
ships same day |
12a |
375-5084
|
Hose assembly with valve |
$30.00
|
1 |
(before SN 10949064) (includes 13a, 14-15) (replaced by 12b) |
usually ships 5-16 days |
12b |
375-0216
|
Drain hose assembly 1 1/2 x 13 inch |
$65.98
|
1 |
(after SN 10949063) (includes 13d) |
usually ships 6-30 days |
13a |
375-0212
|
2 way ball valve (OBSOLETE) |
$77.40
|
1 |
(before SN 10949064) (control valve) (replaced by 12e) |
usually ships 5-16 days |
13b |
375-0214
|
Drain cap assembly (black) |
$7.40
|
1 |
(standard screw cap) |
ships same day |
13c |
375-0213
|
Drain cap assembly (gray) |
$7.40
|
1 |
(before SN 10988543) (standard screw cap and pinch cuff screw cap) |
ships same day |
13d |
375-0214
|
Drain cap assembly (black) |
$7.40
|
1 |
(after SN 10988542) (pinch cuff screw cap) |
ships same day |
14 |
997-2000
|
Hose clamp |
$2.37
|
2 |
|
ships same day |
15 |
375-0216
|
Drain hose assembly 1 1/2 x 13 inch |
$65.98
|
1 |
(before SN 1222591) (replaced by 12b) (control valve) |
usually ships 6-30 days |
16 |
275-5935
|
Hose adapter gasket |
$3.10
|
1 |
|
ships same day |
17 |
375-0218
|
Hose adapter |
$10.10
|
1 |
|
usually ships 5-16 days |
18 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
$0.99
|
4 |
|
ships same day |
19 |
375-0220
|
22 inch hose assembly w/cuffs 1 1/2 x 22 in |
$31.67
|
1 |
|
ships same day |
20 |
997-2000
|
Hose clamp |
$2.37
|
2 |
|
ships same day |
21 |
375-0210
|
Recovery water deflector |
$16.00
|
1 |
(before SN 10785189) (control valve and standard screw cap) |
usually ships 5-16 days |
22 |
999-0531
|
Screw M5-.8 x 16mm pan head slotted zinc |
$0.99
|
1 |
(before SN 10785189) (control valve and standard screw cap) |
ships same day |
23 |
375-1558
|
Circuitbreaker cover kit |
$65.90
|
1 |
(after SN 10786728) |
ships same day |
