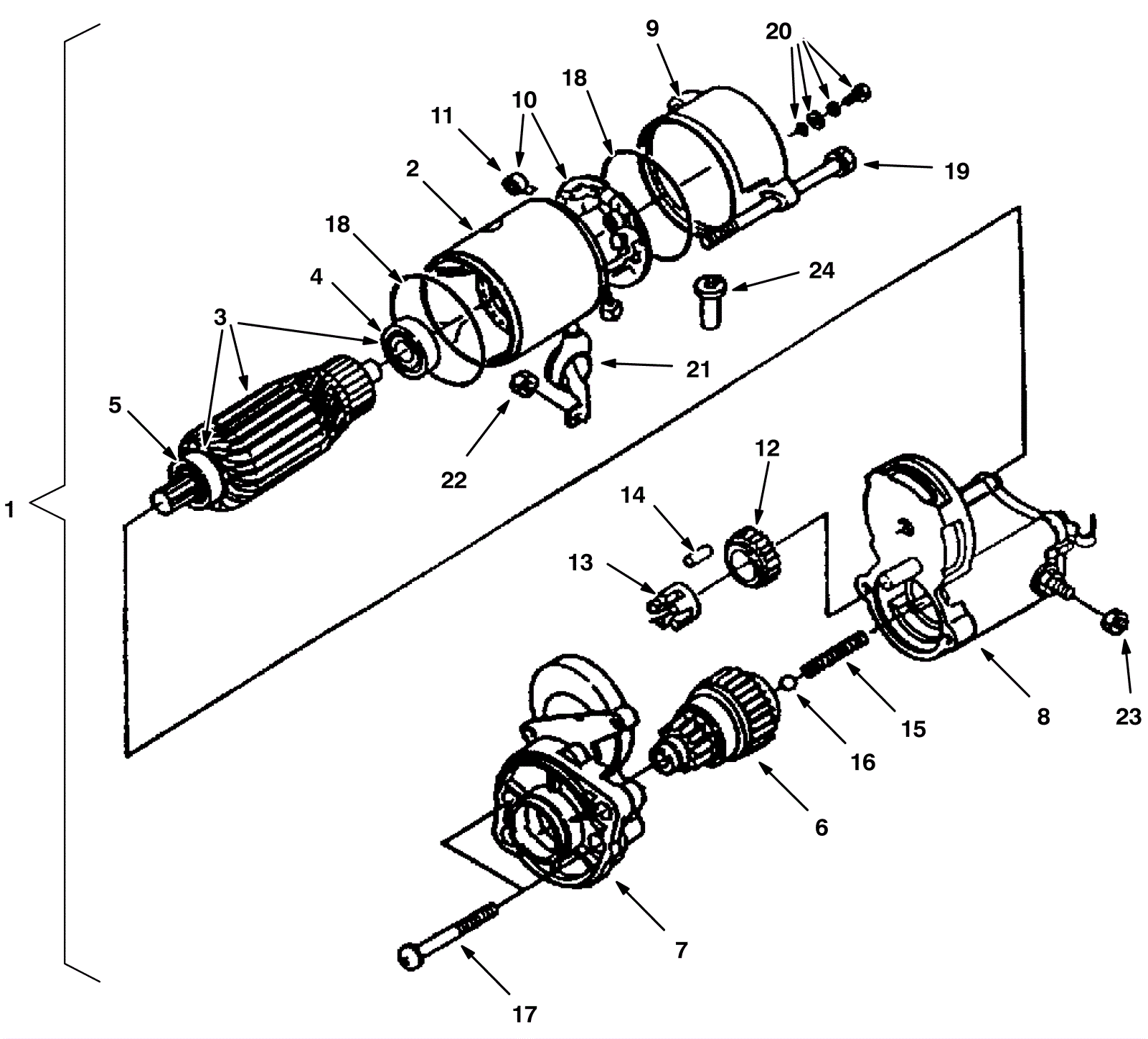

385 Starter Breakdown-2

#PartDescriptionPriceReqNotesAvailability
1 375-3473 12V stater motor (Tennant Industrial) $3,760.84 1 (includes 2-24) usually ships 5-16 days
2 375-2251 Yoke assembly $1,221.94 1 usually ships 5-16 days
3 375-2252 Motor armature KU $908.98 1 (includes 4-5) usually ships 5-16 days
4 375-2253 Bearing $100.70 1 usually ships 5-16 days
5 375-2254 Bearing $83.33 1 usually ships 5-16 days
6 375-2255 Clutch (OBSOLETE) Call for price 1 usually ships 5-16 days
7 375-2256 Drive end frame (OBSOLETE) Call for price 1 usually ships 5-16 days
8 375-2257 Magneto switch $1,958.91 1 usually ships 5-16 days
9 375-2258 End frame $380.43 1 usually ships 5-16 days
10 675-1101 VR, BRUSHHOLDER (Tennant Industrial) $128.26 1 (includes 11) usually ships 5-16 days
11 375-2259 Brush spring $20.21 4 usually ships 5-16 days
12 375-2260 Gear (OBSOLETE) Call for price 1 usually ships 5-16 days
13 375-2261 Retainer (OBSOLETE) Call for price 1 usually ships 5-16 days
14 275-3760 Retainer (Tennant Industrial) (OBSOLETE) $9.88 5 usually ships 1-5 days
15 375-2262 Spring (OBSOLETE) Call for price 1 usually ships 5-16 days
16 275-3762 VR, SPRING, EXT [KU] (Tennant Industrial) (OBSOLETE) $3.90 1 usually ships 1-5 days
17 375-2263 Bolt (OBSOLETE) Call for price 2 usually ships 5-16 days
18 575-3758 VR, SEAL, ORG (Tennant Industrial) $38.74 2 usually ships 5-16 days
19 375-2264 Bolt (OBSOLETE) Call for price 2 usually ships 5-16 days
20 375-2265 Assembly bolt $15.20 2 usually ships 5-16 days
21 375-2266 Cover $74.15 1 usually ships 5-16 days
22 275-3767 VR, NUT, HEX [KU] (Tennant Industrial) (OBSOLETE) $11.52 1 usually ships 1-5 days
23 575-0592 VR, NUT (Tennant Industrial) $13.86 1 usually ships 5-16 days
24 375-2267 Starter drain tube $57.11 1 usually ships 5-16 days
