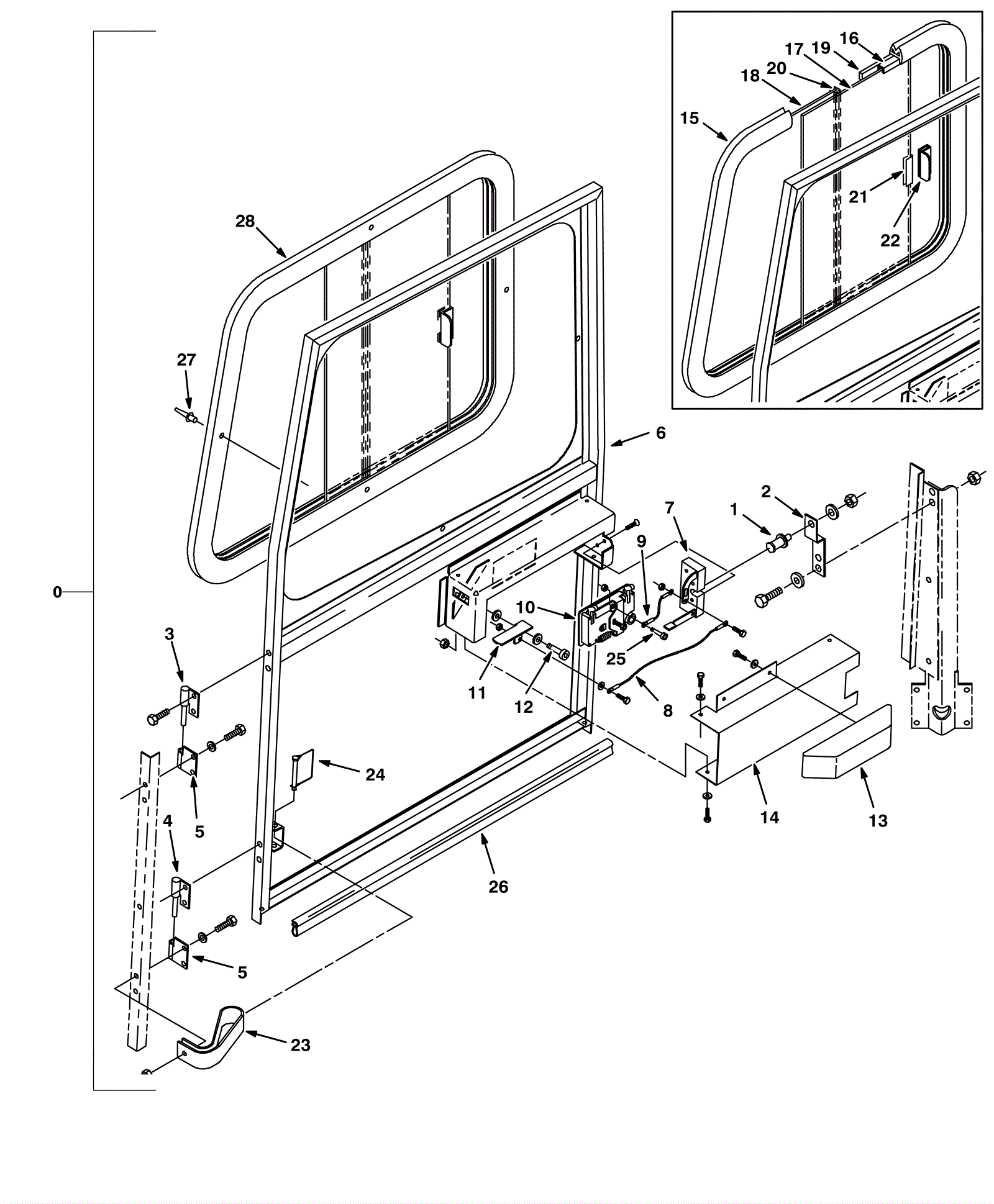

Cab Door Assembly

#PartDescription ReqNotesAvailability
0 375-1802 Cab kit, 355L (OBSOLETE) 1 (includes 1-28 and parts on diagrams 275-1362, 275-1363, and 275-1365)
1 575-4955 BOLT, LATCH, F/58489/58844 (Tennant Industrial) 1
2 675-2077 BRACKET, LATCH, BOLT (Tennant Industrial) 1
3 575-5914 HINGE WLDT, PIN, .38D, DOOR, CAB, LONG (Tennant Industrial) 1
4 575-8064 HINGE WLDT, PIN, .38D, DOOR, CAB, SHORT (Tennant Industrial) 1
5 575-8188 HINGE WLDT, DOOR, CAB (Tennant Industrial) 2
6 375-2174 Cab door (OBSOLETE) 1
7 275-7456 LATCH (Tennant Industrial) 1
8 275-5539 12 inch cable (Tennant Industrial) 1
9 275-2677 Cable (Tennant Industrial) 1
10 675-0379 HANDLE, DOOR, PADDLE (Tennant Industrial) 1
11 175-6133 Bearing block 1
12 275-8741 BOLT, SHLD, .38D X 0.38, .31-18 (Tennant Industrial) 1
13 375-2175 Cab door armrest (OBSOLETE) 1
14 675-4426 COVER, LATCH, DOOR, CAB (Tennant Industrial) 1
15 375-2176 Window trim molding (OBSOLETE) 1
16 375-2177 Glassrun flexible channel (OBSOLETE) 1
17 675-6953 PANE, DOOR, CAB (Tennant Industrial) (OBSOLETE) 1
18 675-6953 PANE, DOOR, CAB (Tennant Industrial) (OBSOLETE) 1
19 375-2178 Rubber strip 0.25 x 0.5 x 55.2 (OBSOLETE) 1
20 375-1807 Rigid channel (OBSOLETE) 1
21 475-7998 STRIP, RBR, 0.06 00.70W 02.7L (Tennant Industrial) 1
22 575-7867 FINGER PULL (Tennant Industrial) 1
23 575-0240 SLEEVE, NYL, 0.86ID 14.8L [W/ HOLES] (Tennant Industrial) 1
24 175-7201 Pin (Tennant Industrial) 1
25 999-0745 Screw 10-24 x 1 1/4 socket head shoulder 1
26 275-7442 SEAL, BULB, SD-0504 32.50LG (Tennant Industrial) 1
27 275-0930 Pop rivet 4
28 675-6953 PANE, DOOR, CAB (Tennant Industrial) (OBSOLETE) 1
