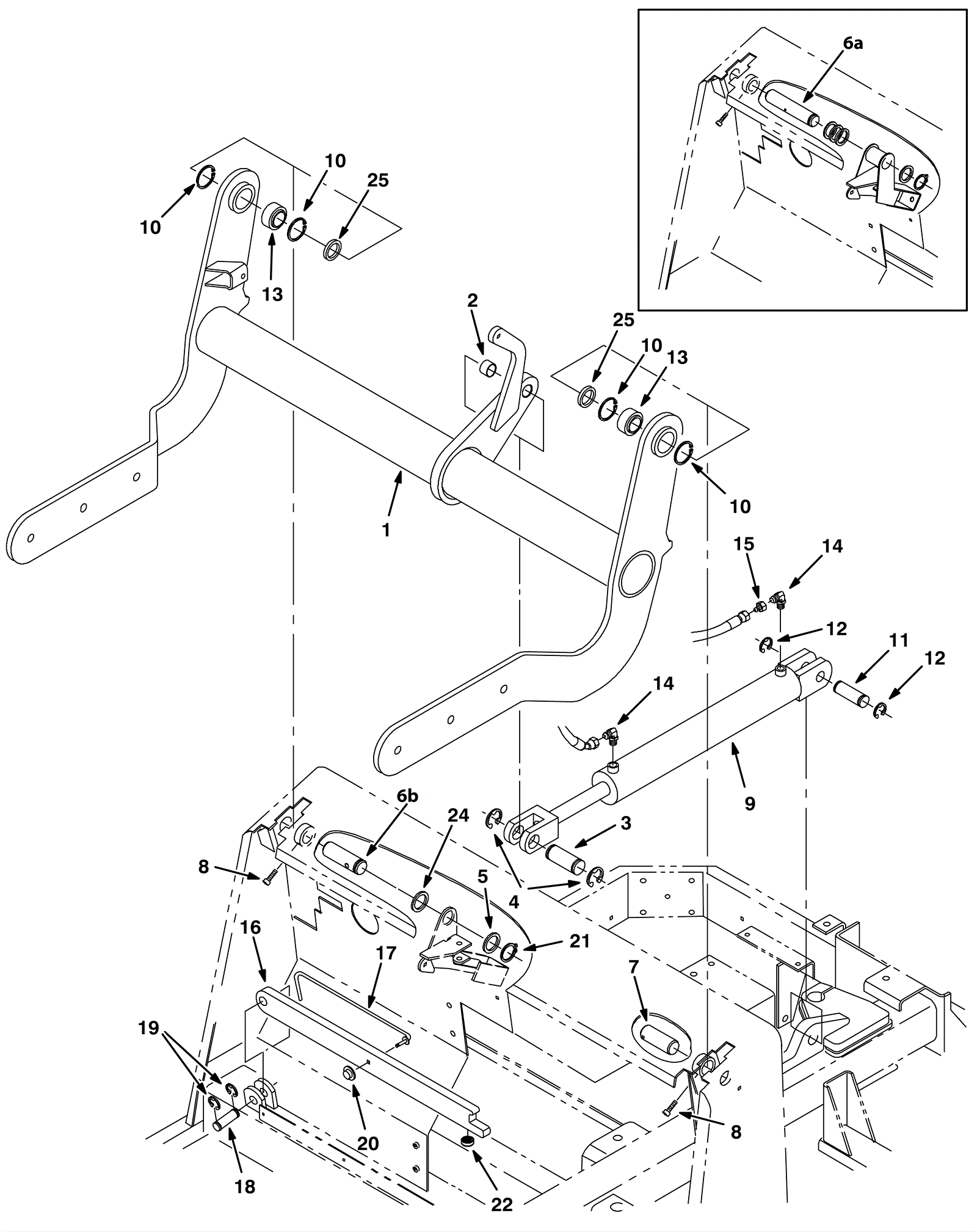

| # | Part | Description | Price | Req | Notes | Availability |
|---|
1a |
675-8599
|
ARM, LIFT, HPPR, W/ LABEL (Tennant Industrial) |
$3,064.45
|
1 |
|
usually ships 10-16 days |
1b |
675-1084
|
PIN ASSY, W/ BSHG AND RING (Tennant Industrial) |
$212.59
|
1 |
(includes 2-4) |
usually ships 10-16 days |
2 |
575-1879
|
BUSHING, SLEEVE, 1.25B 1.40D 1.00L, FGL (Tennant Industrial) |
$23.50
|
1 |
|
usually ships 10-16 days |
3 |
575-6401
|
PIN, GRVD (Tennant Industrial) |
$150.36
|
1 |
|
usually ships 10-16 days |
4 |
175-9783
|
Retaining ring 1 1/4d |
$4.49
|
2 |
|
usually ships 1-5 days |
5 |
475-9359
|
WASHER, FLAT, 1.28B 1.75D .08, STL, PL (Tennant Industrial) |
$9.84
|
1 |
|
usually ships 10-16 days |
6a |
575-8503
|
PIN, GRVD, 1.25D 06.2L, 1CHAM, STL (Tennant Industrial) |
$149.70
|
1 |
(before SN 006115) |
usually ships 10-16 days |
6b |
375-2161
|
Right hand pin (OBSOLETE) |
Call for price
|
1 |
(after SN 006114) |
usually ships 10-16 days |
7 |
375-2160
|
Left hand pin |
$71.01
|
1 |
|
usually ships 10-16 days |
8 |
175-0602
|
Screw M8-1.25 x 25mm socket |
$4.49
|
2 |
|
usually ships 10-16 days |
9 |
675-6922
|
CYLINDER KIT, HYD, F/74419, REPLMT (Tennant Industrial) |
$926.85
|
1 |
|
usually ships 10-16 days |
10 |
275-8454
|
RING, RETAINING, INT, 2.00D (Tennant Industrial) |
$6.67
|
4 |
|
usually ships 1-5 days |
11 |
675-4879
|
PIN, GRVD, 1.00D 3.0L [2/2.71BTWN] (Tennant Industrial) |
$758.82
|
1 |
|
usually ships 10-16 days |
12 |
375-0702
|
Retainging ring (Tennant Industrial) |
$4.00
|
2 |
|
usually ships 1-5 days |
13 |
275-2505
|
Self align bearing (Tennant Industrial) |
$85.35
|
2 |
|
usually ships 1-5 days |
14 |
175-6919
|
Elbow fitting |
$15.40
|
2 |
|
usually ships 10-16 days |
15 |
275-0378
|
FITTING, HYD, RST, JF04/JM04, .047 (Tennant Industrial) |
$54.34
|
1 |
|
usually ships 1-5 days |
16 |
675-1333
|
ARM, SAFETY, HPPR, W/ LABEL (Tennant Industrial) |
$237.98
|
1 |
|
usually ships 10-16 days |
17 |
575-4837
|
ROD, ARM, SAFETY (Tennant Industrial) |
$63.46
|
1 |
|
usually ships 10-16 days |
18 |
575-2285
|
PIN, ARM, SAFETY (Tennant Industrial) |
$29.01
|
1 |
|
usually ships 10-16 days |
19 |
375-2312
|
Retaining ring (OBSOLETE) |
Call for price
|
2 |
|
usually ships 10-16 days |
20 |
175-2302
|
Retainer nut |
$4.36
|
1 |
|
ships same day |
21 |
275-2038
|
RETAINER, RING (Tennant Industrial) |
$12.34
|
1 |
|
usually ships 1-5 days |
22 |
475-8763
|
BUMPER, ARM, SAFETY (Tennant Industrial) |
$6.51
|
1 |
|
usually ships 10-16 days |
24 |
175-6776
|
WASHER, FLAT, 1.26B 1.88D .13, STL (Tennant Industrial) |
$6.67
|
1 |
|
usually ships 1-5 days |
25a |
575-1019
|
TUBE, 1.31ID 1.75OD 00.31, STL, PL (Tennant Industrial) |
$24.00
|
2 |
|
usually ships 10-16 days |
25b |
475-9968
|
WASHER, FLAT, 1.28B 1.75D .25, STL, PL (Tennant Industrial) |
$13.34
|
2 |
|
usually ships 10-16 days |
