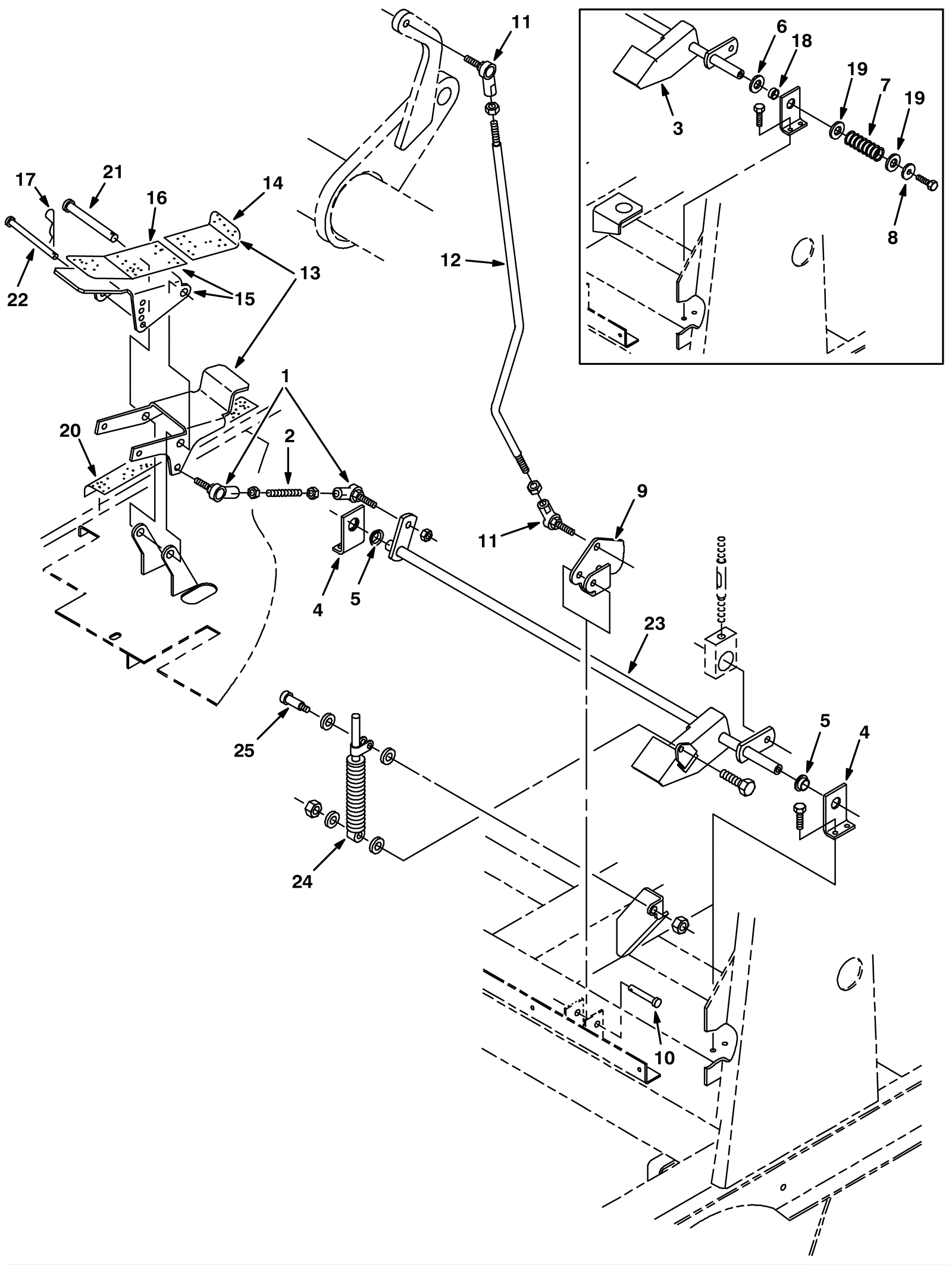

385 Directional Pedal Assembly

#PartDescriptionPriceReqNotesAvailability
1 175-0779 ROD-END, M10 X 1.5RH FEM M10 X 1.5STUD (Tennant Industrial) $72.65 2 usually ships 5-16 days
2 575-7471 ROD, THRD, FULL, M10 X 1.5 03.3L (Tennant Industrial) $113.73 1 usually ships 5-16 days
3 675-5719 SHAFT ASSY, PROPEL, RWK 74475 (Tennant Industrial) $844.19 1 (before SN 005759) usually ships 5-16 days
4 575-5711 BRACKET, SPPT, CNTRL ROD (Tennant Industrial) $77.32 2 usually ships 5-16 days
5 175-2099 Flanged bushing $8.30 2 ships same day
6 175-0806 WASHER, THRUST, 0.75B 1.25D 0.06W (Tennant Industrial) $6.01 1 (before SN 005759) usually ships 5-16 days
7 375-2142 Spring 1.25 x 0.62 3 liter (OBSOLETE) Call for price 1 (before SN 005759) usually ships 5-16 days
8 275-3214 WASHER, FLAT, 0.39B 1.38D .19, STL, PL (Tennant Industrial) $6.01 1 (before SN 005759) usually ships 1-5 days
9 375-2143 Speed limiter bracket (OBSOLETE) Call for price 1 usually ships 5-16 days
10 275-2176 PIN, CLEVIS, 0.37D X 2.12L $3.60 1 usually ships 5-16 days
11 175-0779 ROD-END, M10 X 1.5RH FEM M10 X 1.5STUD (Tennant Industrial) $72.65 2 usually ships 5-16 days
12 575-9879 ROD, THRD, LIMITER, SPD, M10 X 1.5 (Tennant Industrial) $192.05 1 usually ships 5-16 days
13 575-9628 PEDAL, PROPEL, LOWER, W/ TREAD (Tennant Industrial) $155.64 1 (includes 14) usually ships 5-16 days
14 275-2978 TREAD, NON-SKID, 02.2W 15.5L (Tennant Industrial) $11.36 1 usually ships 1-5 days
15 575-6369 PEDAL, PROPEL, UPPER, W/ TREAD (Tennant Industrial) $161.32 1 (includes 16) usually ships 5-16 days
16 275-2978 TREAD, NON-SKID, 02.2W 15.5L (Tennant Industrial) $11.36 1 usually ships 1-5 days
17 175-2117 Cotter pin $3.60 1 ships same day
18 575-0591 BUSHING, SLEEVE, 0.63B 0.72D 0.25L (Tennant Industrial) $13.36 1 (before SN 005759) usually ships 5-16 days
19 275-3215 WASHER, THRUST, 0.63B 1.25D 0.13W $6.00 2 (before SN 005759) usually ships 5-16 days
20 275-2978 TREAD, NON-SKID, 02.2W 15.5L (Tennant Industrial) $11.36 1 usually ships 1-5 days
21 175-5401 Clevis pin 1/2 x 4 1/2 $4.50 1 usually ships 5-16 days
22 275-2976 PIN, CLEVIS, 0.37D X 4.50L (Tennant Industrial) $6.01 1 usually ships 5-16 days
23 675-5397 SHAFT WLDT, PROPEL (Tennant Industrial) $750.50 1 (after SN 005758) usually ships 5-16 days
24 275-3117 SHOCK ABSORBER, 2.3 STRK (Tennant Industrial) $174.18 1 (after SN 005758) usually ships 5-16 days
25 175-3285 Bolt 1/4-20 x 5/16-1 shoulder $6.00 1 (after SN 005758) usually ships 1-5 days
