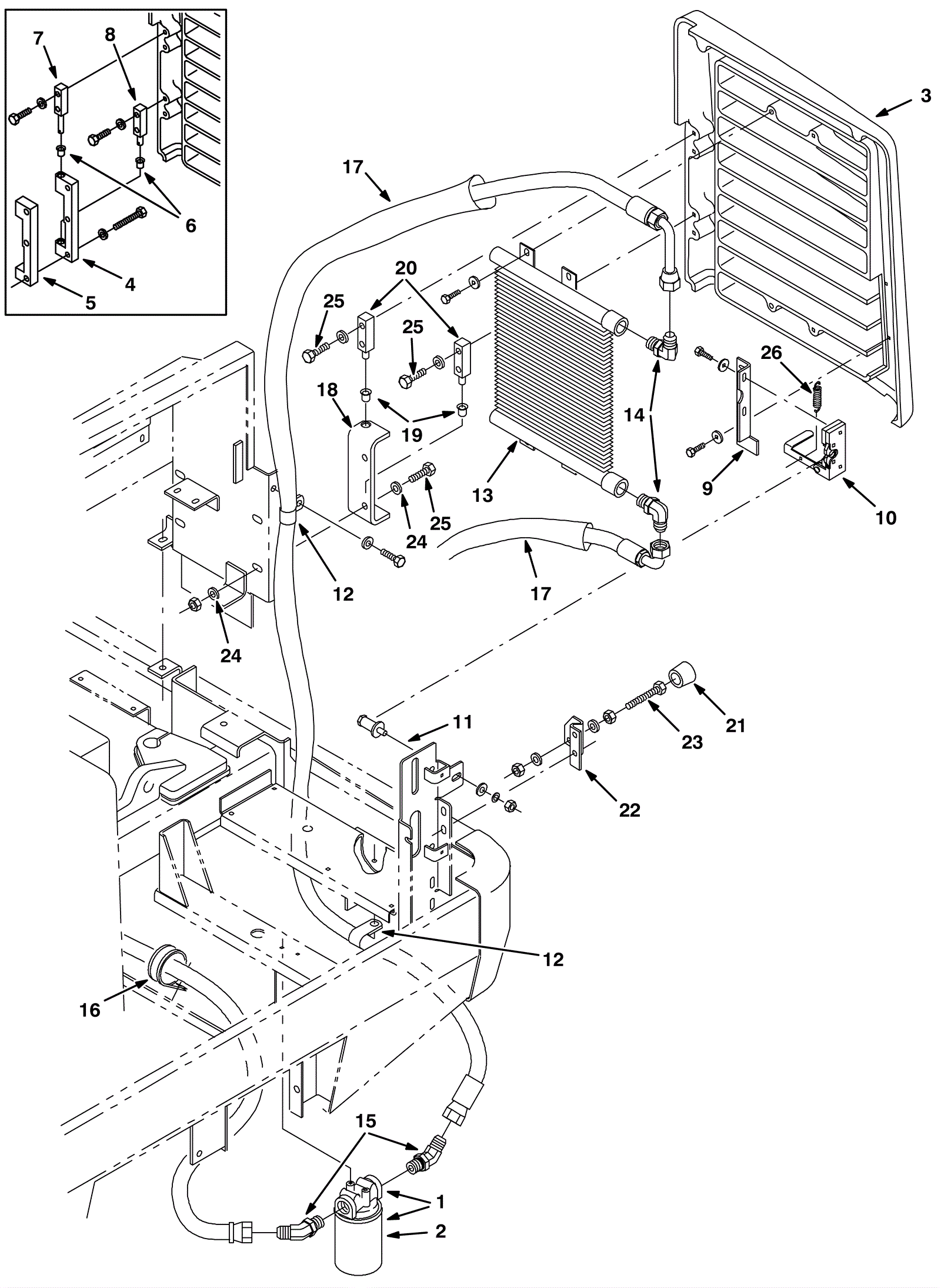

385 Left Grill and Hydraulic Cooler Assembly

#PartDescriptionPriceReqNotesAvailability
1 275-0389 Spin-on oil filter assembly $91.10 1 (includes item 2) usually ships 5-16 days
2 275-0390 Hydraulic oil filter $18.60 1 usually ships 5-16 days
3 675-7748 GRILL, LH (Tennant Industrial) $2,721.77 1 usually ships 5-16 days
5 375-2114 Pivot block spacer (OBSOLETE) Call for price 1 (after SN 005368) usually ships 5-16 days
6 575-1488 BUSHING, FLNG, 0.50B 0.60D 0.75L (Tennant Industrial) $19.04 2 (after SN 005368) usually ships 5-16 days
7 675-0444 PIN (Tennant Industrial) $450.07 1 (after SN 005368) usually ships 5-16 days
8 575-4913 PIN, PIVOT, UPPER inch (Tennant Industrial) $62.46 1 (after SN 005368) usually ships 5-16 days
9 575-7473 BRACKET, LATCH, GRILL, LPG (Tennant Industrial) $119.24 1 usually ships 5-16 days
10 575-8679 LATCH, HOOK, LH (Tennant Industrial) $148.13 1 usually ships 5-16 days
11 275-6024 LATCH, BOLT (Tennant Industrial) $49.77 1 usually ships 1-5 days
12 175-5314 P clamp (Tennant Industrial) $6.01 2 usually ships 5-16 days
13 275-6707 Cooler (TENNANT INDUSTRIAL) (OBSOLETE) $1,770.55 1 usually ships 5-16 days
14 275-0391 90 degree elbow hydraulic fitting $16.10 2 usually ships 1-5 days
15 275-0394 45 degree elbow hydraulic fitting $46.10 2 usually ships 1-5 days
16 375-2118 Cable clamp (OBSOLETE) Call for price 1 usually ships 5-16 days
17 275-6708 Nylon sleeve (TENNANT INDUSTRIAL) $53.94 2 usually ships 1-5 days
18 675-1961 BRACKET, GRILL (Tennant Industrial) $336.17 1 (before SN 005371) usually ships 5-16 days
19 175-3335 Flanged bushing $14.00 2 (before SN 005371) usually ships 1-5 days
20 575-4913 PIN, PIVOT, UPPER inch (Tennant Industrial) $62.46 2 (before SN 005371) usually ships 5-16 days
21 275-1628 TIP, RBR, 0.94D 0.59B 0.88L (Tennant Industrial) $5.18 1 (before SN 006563) usually ships 1-5 days
22 575-5713 BRACKET, STOP, BOLT, REAR GRILL (Tennant Industrial) $79.49 1 (before SN 006563) usually ships 5-16 days
23 475-9514 SCREW, HEX, .38-16 X 2.00, FL (Tennant Industrial) $8.02 1 (before SN 006563) usually ships 5-16 days
24 275-0464 Washer 1/2 flat belleville $3.60 4 usually ships 5-16 days
25 475-9208 SCREW, HEX, M12 X 1.75 X 40, 10.9 (Tennant Industrial) $6.01 6 usually ships 5-16 days
26 575-0098 SPRING, EXTN, 0.38OD 0.05WIR 02.5L (Tennant Industrial) $10.02 1 usually ships 5-16 days
