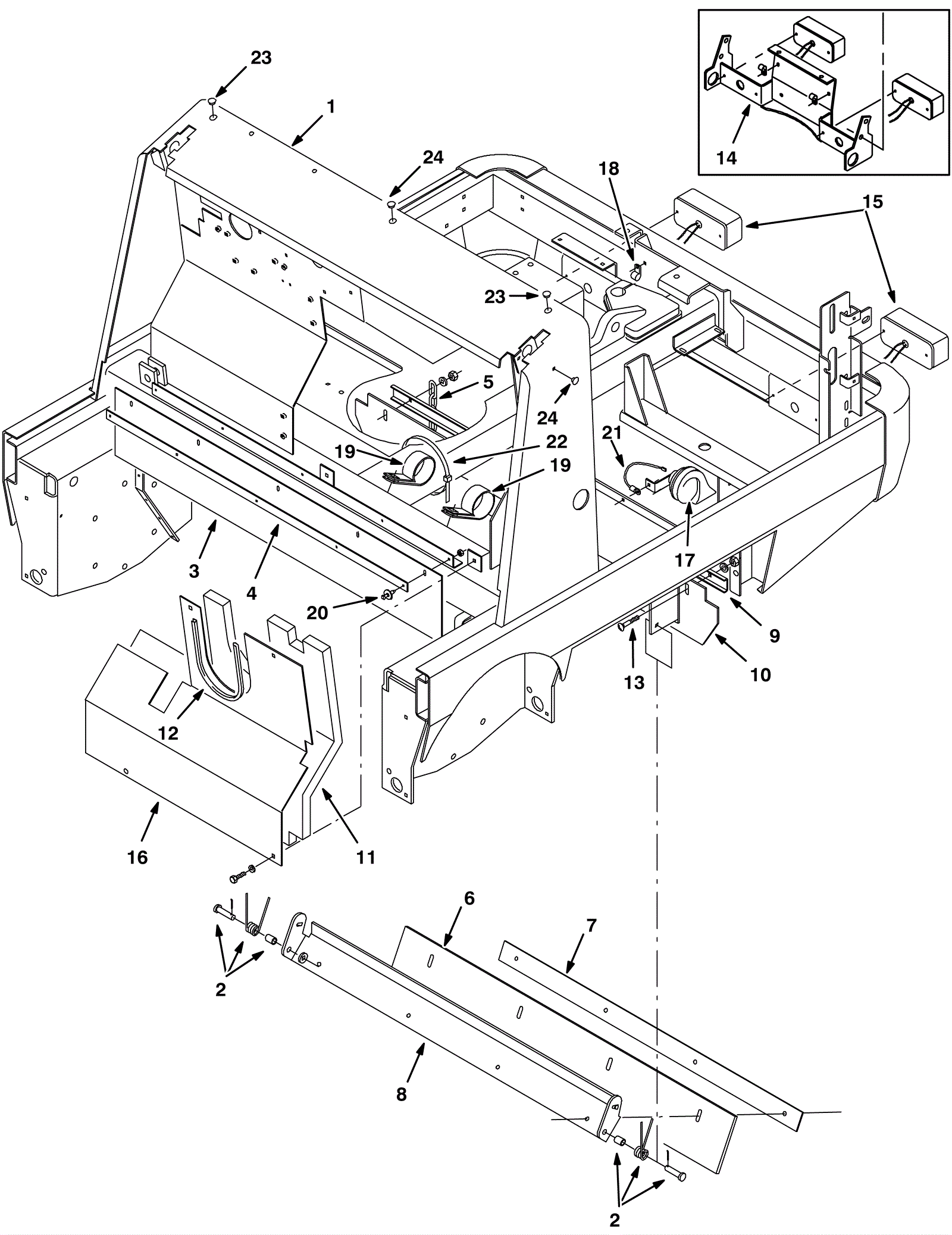

| # | Part | Description | Price | Req | Notes | Availability |
|---|
1a |
375-2100
|
Main frame before SN 005441 (OBSOLETE) |
Call for price
|
1 |
(before SN 005441) |
usually ships 5-16 days |
1b |
375-2101
|
Main frame after SN 005440 (OBSOLETE) |
Call for price
|
1 |
(after SN 005440) |
usually ships 5-16 days |
2 |
575-6848
|
SPRING ASSY KIT (Tennant Industrial) |
$73.65
|
1 |
|
usually ships 5-16 days |
3 |
575-8811
|
SKIRT, RBR, .12, 07.88W 44.24L, 05/ SL (Tennant Industrial) |
$148.96
|
1 |
|
usually ships 5-16 days |
4 |
375-1227
|
Skirt retainer (TENNANT INDUSTRIAL) |
$65.46
|
1 |
|
usually ships 1-5 days |
5 |
475-9760
|
CHAIN, COIL, STR, 2/0, 06.9L 05 LINK (Tennant Industrial) |
$8.85
|
1 |
|
usually ships 5-16 days |
6a |
275-7376
|
SKIRT, NEO, .37, 06.00W 44.65L, 04/ SL (Tennant Industrial) |
$124.75
|
1 |
|
usually ships 1-5 days |
6b |
675-1099
|
SKIRT, NEO, .37, 04.50W 44.65L, 04/ SL (Tennant Industrial) |
$264.70
|
1 |
(optional) |
usually ships 5-16 days |
7 |
575-7404
|
RETAINER, BLADE, DEFLECTOR (Tennant Industrial) |
$111.89
|
1 |
|
usually ships 5-16 days |
8 |
675-2748
|
BRACKET, FLAP, RECIRCULATION (Tennant Industrial) |
$392.28
|
1 |
|
usually ships 5-16 days |
9 |
375-4674
|
Seal (Tennant Industrial) |
$206.58
|
1 |
|
usually ships 5-16 days |
10 |
375-1228
|
Skirt (TENNANT INDUSTRIAL) |
$269.54
|
1 |
|
usually ships 1-5 days |
11 |
675-1166
|
INSULATION, ACSTC, 1.0, 26.3 X 23.5 NTCH (Tennant Industrial |
$269.54
|
1 |
|
usually ships 5-16 days |
12 |
575-3313
|
MOLDING, TRIM, PVC, .08-.11 25.6L (Tennant Industrial) |
$46.26
|
1 |
|
usually ships 5-16 days |
13 |
999-1641
|
Bolt M8-1.25 x 40mm carriage stainless steel |
$2.86
|
4 |
|
ships same day |
14a |
375-2102
|
Taillight bracket replacement kit (OBSOLETE) |
Call for price
|
1 |
|
usually ships 5-16 days |
14b |
375-2103
|
Taillight bracket (OBSOLETE) |
Call for price
|
1 |
(before SN 005441) |
usually ships 5-16 days |
15a |
575-6172
|
TAILLIGHT, 12VDC, 6.6 X 3.1, RWK 59948 (Tennant Industrial) |
$44.26
|
2 |
(includes 15b) |
usually ships 5-16 days |
15b |
175-5929
|
LAMP, 12VDC, 0.5A, 04CP [#1157] (Tennant Industrial) |
$12.02
|
1 |
|
usually ships 1-5 days |
16a |
375-2104
|
Engine panel (OBSOLETE) |
Call for price
|
1 |
(before SN 005314) |
usually ships 5-16 days |
16b |
675-2678
|
PANEL, ENG (Tennant Industrial) |
$390.78
|
1 |
(after SN 005313) |
usually ships 5-16 days |
18 |
175-3168
|
P clamp |
$3.60
|
3 |
|
usually ships 5-16 days |
19 |
475-9105
|
CLAMP, CABLE, STL, 1.75D X 1.00W, 1HOLE (Tennant Industrial) |
$6.18
|
3 |
|
usually ships 5-16 days |
20 |
175-3378
|
Rivet 1/4 x 57/64 plastic |
$2.80
|
5 |
|
usually ships 5-16 days |
21 |
575-0593
|
WIRE, 16GA 06.0L BLK .25QF /.31RING (Tennant Industrial) |
$14.86
|
1 |
|
usually ships 5-16 days |
22 |
175-6617
|
Cable tie |
$6.01
|
3 |
|
usually ships 5-16 days |
23 |
175-9940
|
Black nylon plug (Tennant Industrial) |
$4.84
|
2 |
|
usually ships 1-5 days |
24 |
175-2359
|
Plug |
$3.00
|
3 |
|
usually ships 1-5 days |
