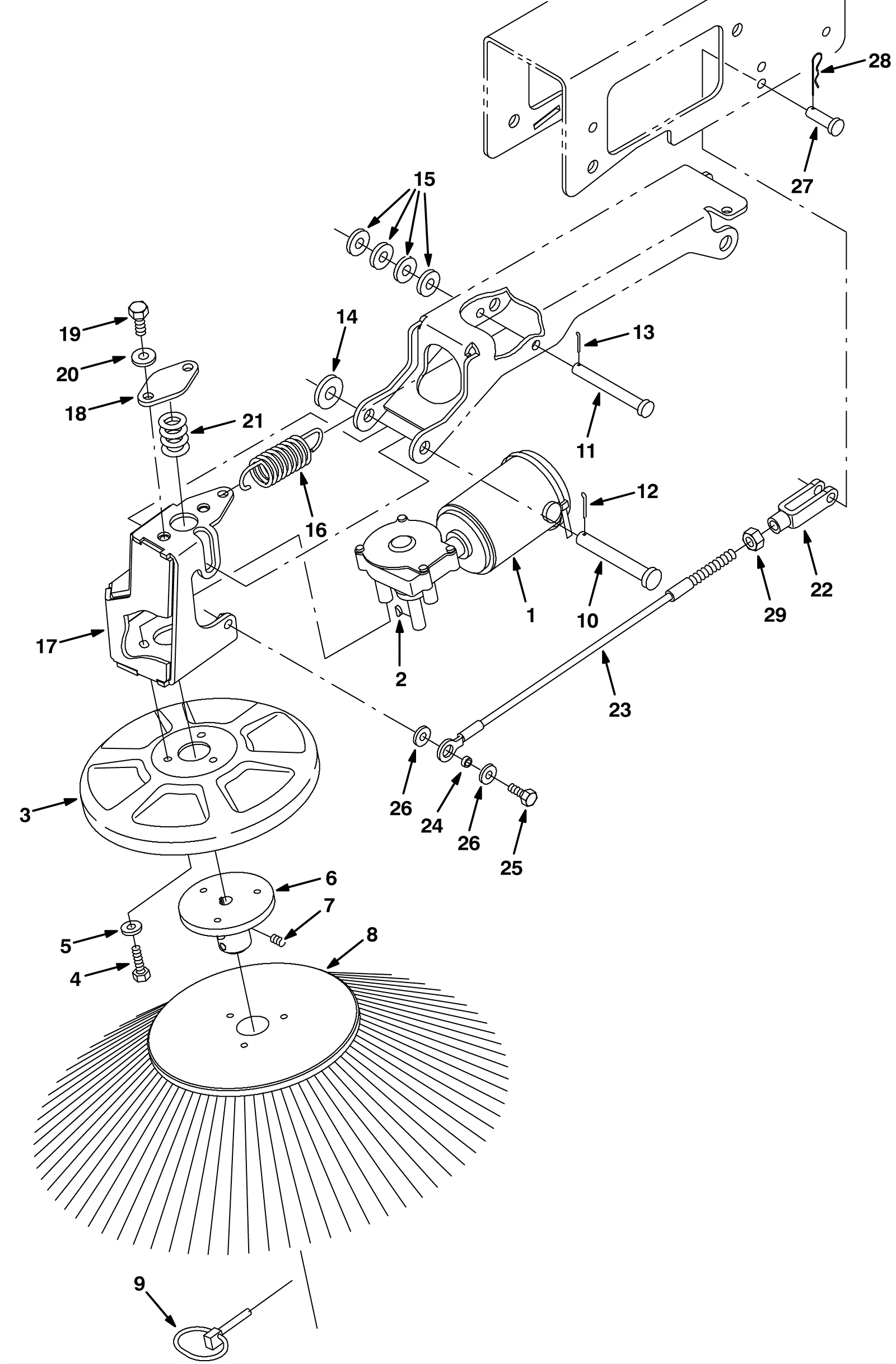

T15 Side Brush Motor Assembly

#PartDescriptionPriceReqNotesAvailability
1 275-4684 MOTOR, ELE, 36VDC 0067RPM, GEAR (Tennant Industrial) $1,173.84 1 usually ships 1-5 days
2 275-0148 Woodruff key 3mm 3.7mm $13.53 1 usually ships 1-5 days
3 275-0149 Brush bumper guard $15.84 1 usually ships 1-5 days
4 999-0518 Bolt M6-1 x 25mm hex head full thread zinc $0.99 3 ships same day
5 999-0123 Washer 1/4 SAE flat zinc plated $0.99 3 ships same day
6 275-0150 Side broom hub $240.13 1 usually ships 1-5 days
7 175-9339 Screw M6-1 x 8mm set socket $3.96 1 usually ships 5-16 days
8 275-0151 Polypropylene sweeper disk brush assembly 17 1/2d $172.48 1 usually ships 1-5 days
9 275-0152 PIN, RETAINER (Tennant Industrial) $23.88 1 usually ships 1-5 days
10 175-3280 Clevis pin $5.83 1 usually ships 5-16 days
11 275-0153 PIN, CLEVIS, 0.37D X 3.50L (Tennant Industrial) $4.51 1 usually ships 1-5 days
12 175-3281 Cotter pin $2.42 1 usually ships 5-16 days
13 175-2588 Cotter pin $2.42 1 usually ships 5-16 days
14 999-0114 Washer 1/2 SAE flat $0.99 1 ships same day
15 999-0024 Washer 5/16 flat stainless steel $1.34 4 ships same day
16 275-0154 SPRING, EXTN, 1.10OD 0.15WIR 03.2L (Tennant Industrial) $32.73 1 usually ships 1-5 days
17 275-7237 Motor bracket weldment $186.45 1 usually ships 1-5 days
18 275-0156 Side brush plate $9.90 1 usually ships 1-5 days
19 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain $0.99 2 ships same day
20 999-0123 Washer 1/4 SAE flat zinc plated $0.99 2 ships same day
21 275-0157 SPRING, DSL, 1.00OD 0.50ID 1.25L (Tennant Industrial) $41.58 1 usually ships 5-16 days
22 275-0158 CLEVIS, ADJ, 0.38PIN, M10X1.5 (Tennant Industrial) $20.54 1 usually ships 5-16 days
23 275-0159 CABLE, GLV .13D 014.9L .41EYE / M10 (Tennant Industrial) $107.05 1 usually ships 5-16 days
24 175-0777 P/M sleeve $4.84 1 usually ships 5-16 days
25 175-4963 Bolt M6-1 x 20mm hex head $4.73 1 usually ships 1-5 days
26 999-0016 Washer 1/4 flat plain finish $0.99 2 ships same day
27 275-0160 Clevis pin .37d 1 1/4l $5.61 1 usually ships 1-5 days
28 175-2113 Cotter pin $2.42 1 ships same day
29 999-0767 Nut M10-1.5 hex coarse thread $0.99 1 ships same day
